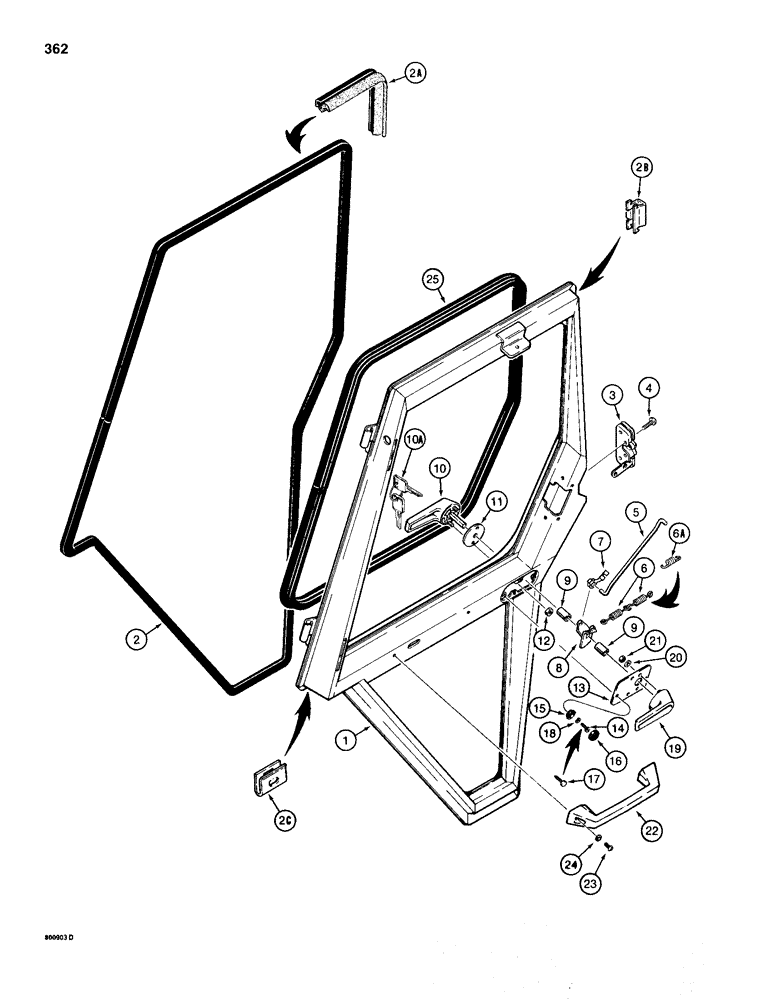

Запчасти Case 680H (362) - CAB DOOR (09) - CHASSIS/ATTACHMENTS

1

F96829

FUNNEL

FRAME Door

1шт.

2

REF

INSTRUCTION

SEAL - door frame, plain rubber bulb-type, no longer used, replace with Refs. 2A, 2B, and 2C

1шт.

2a

F45169

SEAL

Door frame, with sponge lip, used with clips 2B and 2C

1шт.

2b

F45176

CLIP

Door seal

1шт.

2c

F45175

CLIP

Door seal, along lower diagonal edge

1шт.

3

F44925

LATCH

Door striker

1шт.

4

F45337

SCREW,1/4" - 20 x 1", Gr 5

Special, Phillips head, 1/4" - 20 NC x 1", plated

4шт.

5

F44746

ROD

Door latch release

1шт.

6

R42659

SPRING

Door latch, no longer used, order one F45162 spring, Ref. 6A

2шт.

6a

F45162

SPRING

Door latch

1шт.

7

F43350

CLIP

Retainer, door latch release rod

2шт.

8

F93688

ARM

Linkage, door latch release

1шт.

9

F44749

TUBE SPACER,11.13mm ID x 19mm OD x 33mm L

SPACER - door handles

2шт.

10

F45207

HANDLE

Door, outer

1шт.

F45207 outer door handle - This now subs to F66157 which is a multi-length handle used for several applications (cut square shaft to proper length).

1шт.

10a

A77313

SET OF 2 KEYS

Same as ignition key

1шт.

11

F64342

GASKET,1.6mm Thk

Outer door handle

1шт.

12

86625057

NUT,#10-24, GB

2шт.

13

F96718

BRACKET

PLATE - mounting, outer door handle

1шт.

14

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

No longer used, order F45307 screw, Ref 17

3шт.

15

F45172

CAP

RETAINER - screw cover, no longer available, use Ref. 17

3шт.

16

F45173

CAP

COVER - slotted head screw, no longer available, use Ref. 17

3шт.

17

F45307

SCREW

Special, smooth head, self-tapping, requires special tools for installation

3шт.

18

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

3шт.

19

F45258

HANDLE

Door, inner

1шт.

20

195-513

WASHER,#10

2шт.

21

86625057

NUT,#10-24, GB

2шт.

22

F64547

HANDLE

BRACKET - door pull, inner

1шт.

23

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

Machine

2шт.

24

195-518

WASHER,1/4", SAE

2шт.

25

REF

INSTRUCTION

SEAL - LH window frame, cut to length from F43086

1шт.

F43086

SEAL

Bulk roll, 100 ft (3048 cm) long

1шт.

For window in cab door, see Figure 369.

1шт.
