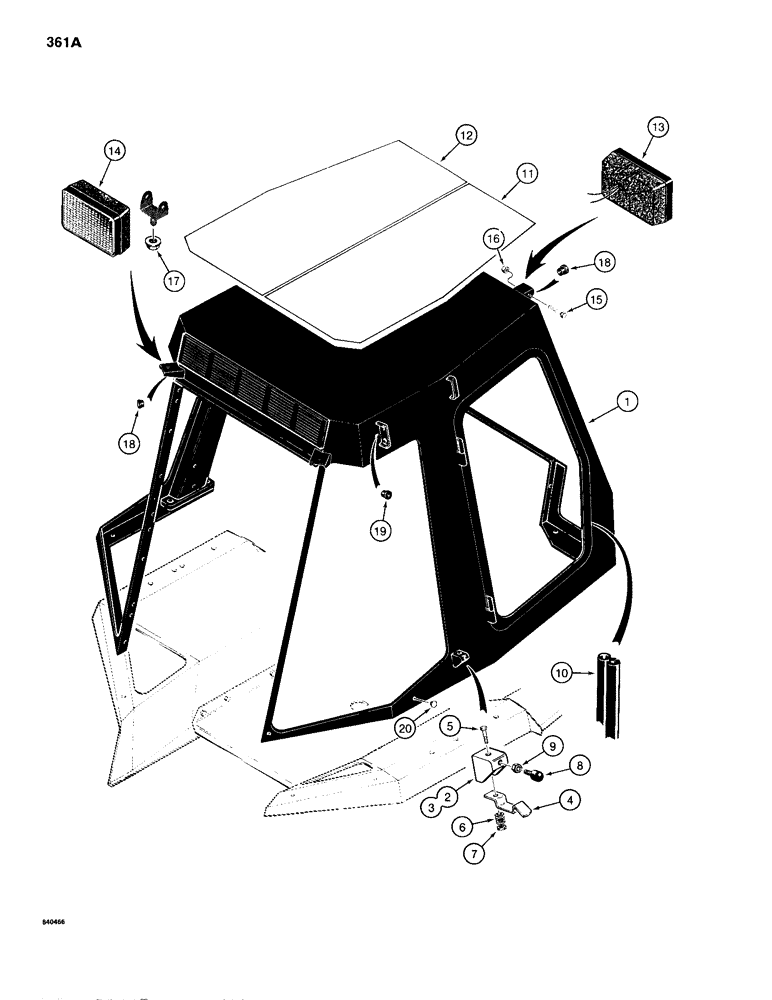

Запчасти Case 680H (361A) - BROWN CAB FRAME AND LAMPS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - cab, brown, if used, Includes: Ref. 2 and 3

1шт.

2

F97010

BRACKET

Window latch, RH

1шт.

3

F97011

BRACKET

Window latch, LH

1шт.

4

F42772

LATCH

Window

2шт.

5

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

6

D36669

SPRING

Bracket

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

2шт.

8

F44935

BUMPER

Window

2шт.

9

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

10

REF

INSTRUCTION

SEAL - RH window frame, cut to length from F43086, see below

1шт.

11

F44914

DECAL

COVER - white vinyl, top of roof, heat deflection, used on models with air conditioning, RH

1шт.

12

F44915

DECAL

COVER - white vinyl, top of roof, heat deflection, used on models with air conditioning, LH

1шт.

13

F96876

LAMP

ASSEMBLY - front, used without hinge bracket, parts list Figure 97A

2шт.

14

F96876

LAMP

ASSEMBLY - rear, uses hinge bracket, parts list Figure 97A

2шт.

15

113-165

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 2

5/16" - 18 NC x 2-1/2", replaces 2" long hex flange head bolt used in production on some models

2шт.

16

131-205

LOCK NUT,5/16"-18

Replaces flange type nut used in production on some models

2шт.

17

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

Self-locking

2шт.

18

353-700

BUSHING

GROMMET - front and rear lamp wires

4шт.

19

353-486

GROMMET

Side lamp wires (replaces 353-704)

4шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

Frame

2шт.

F43086

SEAL

Bulk, 100 ft (3048 cm) long

1шт.

For additional lamps and lamp wiring, see Figure 94; for cab wiring harness, see Figure 374.

1шт.
