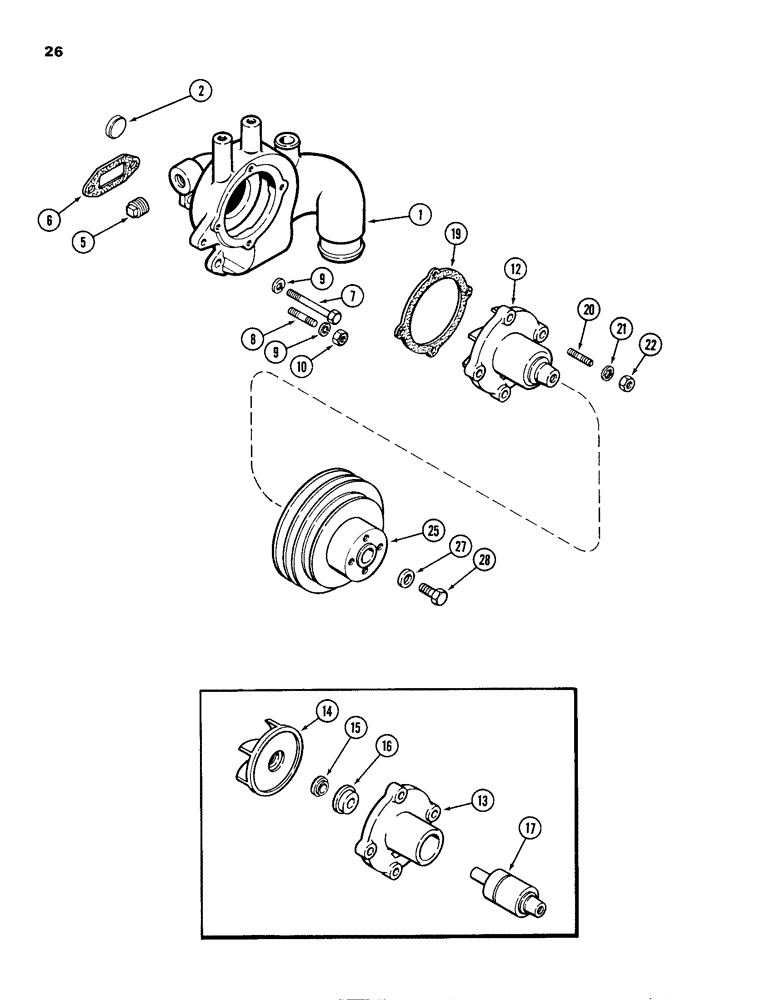

Запчасти Case 680H (026) - WATER PUMP, 336BD DIESEL ENGINE (02) - ENGINE

1

A148968

HOUSING

BODY ASSEMBLY - water pump (Replaces A138498), Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup type, 1-3/8 inch (35 mm)

1шт.

5

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - square head pipe, 3/4 inch PT

1шт.

221-5 plug - There used to be a reducer bushing (221-1092) and a water shut-off valve (A16764) used here on some units. These have now been replaced by Ref. 5 plug.

1шт.

6

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

7

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT, (Replaces 113-208) Hex, 3/8"-16 x 4", G5

2шт.

3/8" x 4" as shown in the 780CK parts book #1248 Figure 25

1шт.

8

G102128

BOLT

STUD - body, 3/8 NC x 1-7/16 inch

2шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

A48369

PUMP

PUMP KIT - remanufactured (Includes Ref 19)

1шт.

12

A157145

PUMP, WATER

PUMP ASSEMBLY - water, new (Replaces A155180), Includes: Ref. 13 - 17

1шт.

12

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

12

A48335

CORE-WATER PUMP

Return Part Number - use this part No. to return water pump core for credit

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - water pump body (Reference No. A58642)

1шт.

14

A152126

IMPELLER

IMPELLER - water (cast iron)

1шт.

15

A34000

SEAL

SEAT - impeller

1шт.

16

A142499

SEAL

SEAL - pump shaft

1шт.

17

A156995

BEARING

BEARING ASSEMBLY - with shaft (Replaces A155272)

1шт.

19

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

20

A166044

STUD

STUD - pump to body, 1-7/16 inch

4шт.

21

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8 inch NC

4шт.

25

A58650

PULLEY

PULLEY - fan

1шт.

27

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER -, Serial Range: pulley-pump

1шт.

28

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT - hex, 1/2 NF x 1-1/4 inch

1шт.
