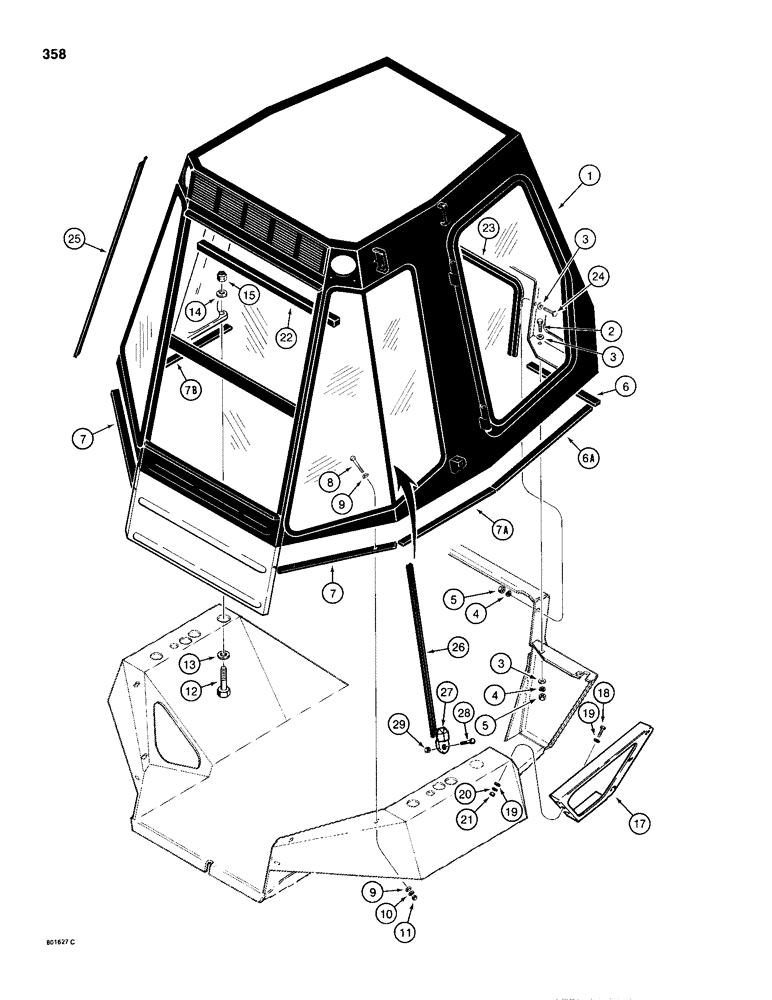

Запчасти Case 680H (358) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, black, no longer available, order brown cab, see Ref. 1A

1шт.

WE DO NOT HAVE A COMPLETE CAB ASSY THRU PARTS. THE BARE FRAME WAS PART# F96885, WHICH IS NOT VALID IN PARTS SYSTEM EITHER. HOWEVER, MARV BROWN IN ENGR ADVISES YOU COULD USE FRAME R100082 FROM 680L. SAYS IT WILL MOUNT ON MACHINE, BUT THEY MAY HAVE TO REROUTE SOME WIRES.

1шт.

1a

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, brown, not shown, machinery item, see Figure 2 for ordering

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

10шт.

4

92-6

LOCK WASHER,3/8"

6шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

6

L109502

STRIP

- front, sponge rubber

2шт.

6a

L109504

STRIP

- foam

1шт.

7

D90935

SEALING STRIP

SEAL - rubber, rear of cab frame

2шт.

7a

L109501

STRIP

- sponge rubber

1шт.

7b

L109503

STRIP

- sponge rubber

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

12

28-1664

BOLT,Hex, 1" - 14 x 4", Gr 8

- hex head, 1" - 14 NF x 4", grade 8

4шт.

13

D30196

WASHER

- special

4шт.

14

L107632

WASHER

- special

4шт.

15

131-1253

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

4шт.

16

RESERVED

1шт.

17

D86437

PANEL ASSY.

PANEL - closure, right-hand

1шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

9шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

18шт.

20

92-6

LOCK WASHER,3/8"

9шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

9шт.

22

F44812

SEAL

SEAL - rear window frame, upper

1шт.

23

L107724

SEAL

SEAL - cowl, 48-1/2" (1232 mm) long

1шт.

24

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

2шт.

25

F44667

RUBBER

SUPPORT - glass, rear, left-hand

1шт.

26

F44668

SEAL

SUPPORT - glass, rear, right-hand

1шт.

27

F45183

BRACKET

RETAINER - glass support

4шт.

28

111-2

CARRIAGE BOLT,Short NK, 3/16"-24 x 3/4", G2

BOLT, CARRIAGE, Short NK, 3/16"-24 x 3/4", G2

4шт.

29

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.
