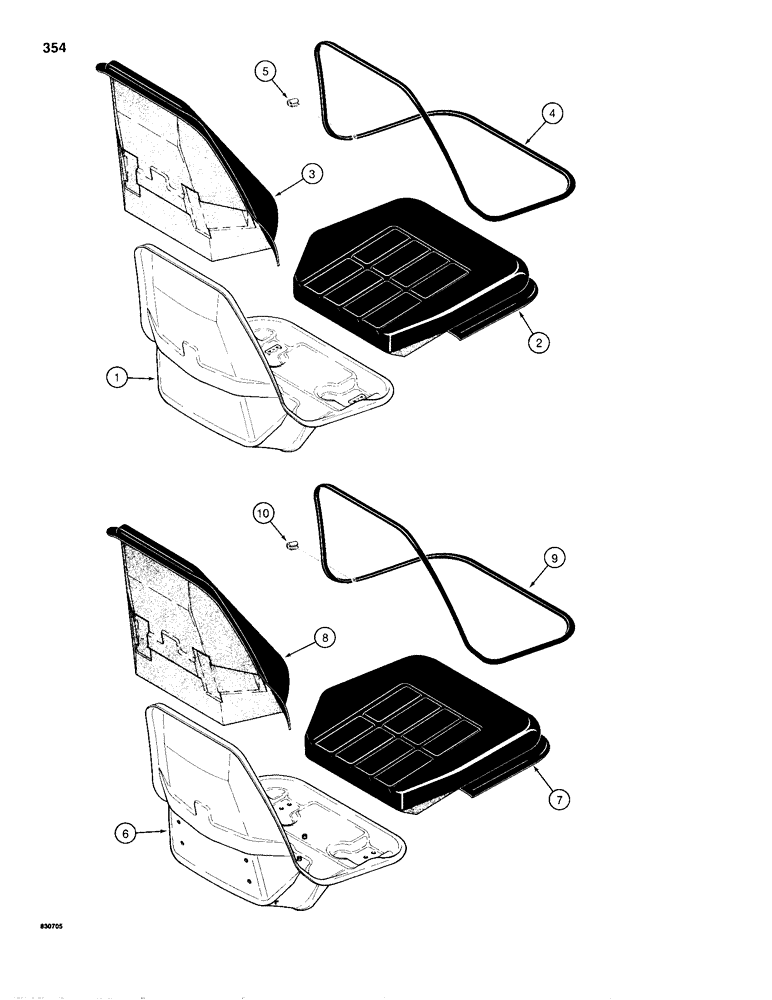

Запчасти Case 680H (354) - SEAT ASSEMBLIES, D120255 STANDARD SEAT ASSEMBLY, D123196 (09) - CHASSIS/ATTACHMENTS

D120255

SEAT

ASSEMBLY - standard, black order D81519 seat for service, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N7675

CUSHION

Seat, includes N7802 clip kit, see below

1шт.

3

N7674

BACKREST

Includes N7802 clip kit, see below

1шт.

4

N14614

GASKET

RETAINER - strip, Serial Range: cushion-shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

D123196

SEAT ASSY.

Standard, brown, for seat support see Figure 352, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8462

CUSHION

Seat, includes N7802 clip kit, see below

1шт.

3

N8461

CUSHION

Backrest, includes N7802 clip kit, see below

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - strip, Serial Range: cushion-shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

D125246

SEAT

ASSEMBLY - suspension, brown, for seat support see Figure 355E for seat adjuster assembly, see Figure 356, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

SHELL - suspension seat

1шт.

7

N8528

CUSHION

Seat, includes N7802 clip kit, see below

1шт.

8

N8529

CUSHION

Backrest, includes N7802 clip kit, see below

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - strip, Serial Range: cushion-shell

1шт.

10

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

345-44

ADHESIVE

Pad retaining, in a can, 23 fl. ounces (680 ml), not shown

1шт.

N7802

CLIP

KIT, includes Ref. 5 clip or Ref. 10 clip above plus 6 additional narrow clips

1шт.

Other seats shown on Figures 353A and 355A.

1шт.
