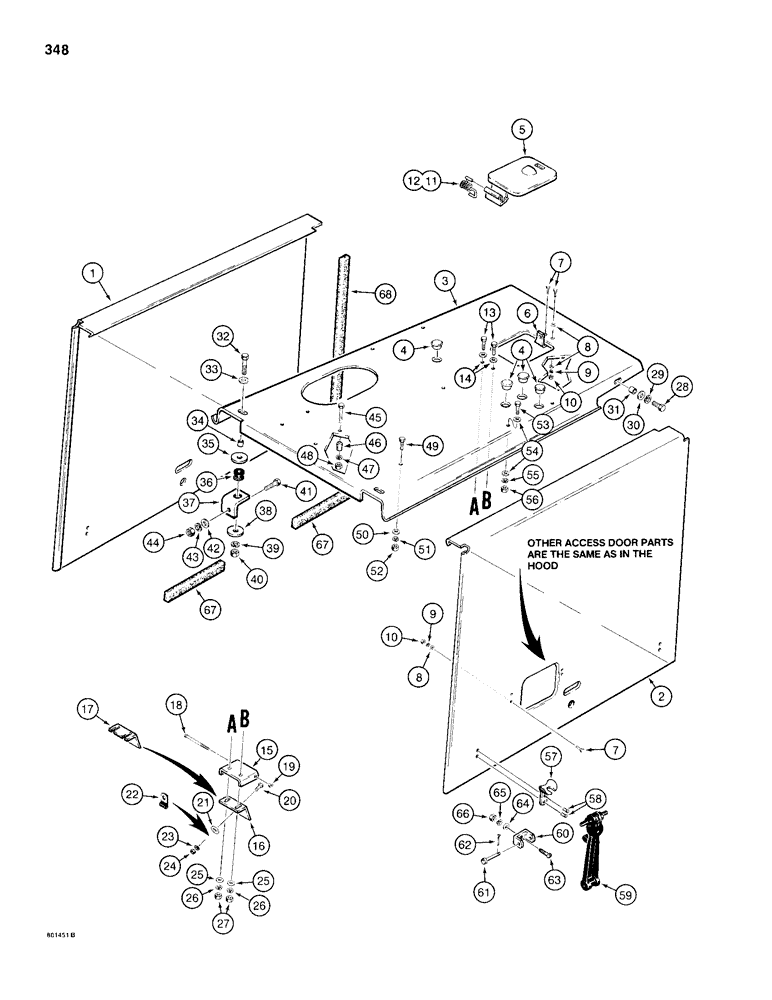

Запчасти Case 680H (348) - HOOD AND ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
L108263
PANEL ASSY.
PANEL - engine side, left-hand
1шт.
2
L108264
PANEL
- engine side, right-hand
1шт.
3
L107970
HOOD
- top panel
1шт.
4
353-414
PLUG,Dome, 1.375" Hole, Nylon
Hood top Dome, 1.375" hole, Nylon
4шт.
5
D92446
DOOR
- access
2шт.
6
L105015
BRACKET
- lock, door
2шт.
7
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
6шт.
8
95-4
WASHER,1/4"
- flat, 1/4"
10шт.
9
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
6шт.
10
25-104
NUT,1/4"-20, G5
6шт.
11
D82581
VALVE SPRING
SPRING - access door, used before tractor SN 9140501 and used on tractor SN 9140502-9140506
2шт.
12
D121677
SPRING
- access door, used on tractor SN 9140501, 9140507, and after
2шт.
13
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
- hex head, 5/16" - 18 NC x 1-1/4"
2шт.
14
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16"
2шт.
15
L105014
BRACKET
- hinge
2шт.
16
L106822
SUPPORT
- spring, used before tractor SN 9140501 and on tractor SN 9140502-9140506
2шт.
17
L108939
SUPPORT
- spring, used on tractor SN 9140501, 9140507, and after
2шт.
18
13-448
BOLT,Hex, 1/4" - 20 x 3", Gr 5
2шт.
19
131-2
NUT,1/4"-20, GB
NUT - hex, self-locking, 1/4" - 20 NC
2шт.
20
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
2шт.
21
D52275
WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk
- spring clip, used on side panel access door
1шт.
22
T41928
CLAMP,3/16", Insul, 1/4" Bolt
- spring
2шт.
23
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
24
25-104
NUT,1/4"-20, G5
2шт.
25
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16"
2шт.
26
92-5
LOCK WASHER,5/16"
2шт.
28
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
29
92-6
LOCK WASHER,3/8"
2шт.
30
195-25
WASHER,3/8"
- flat, 3/8"
2шт.
31
D34242
SPACER
- hood to side panel
2шт.
32
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex head, 3/8" - 16 NC x 1-1/2"
2шт.
33
D41740
WASHER
- special
2шт.
34
D35217
BUSHING
SPACER - hood
2шт.
35
195-2036
WASHER,13/32" x 2" x .109"
- special
2шт.
36
A75993
GROMMET,1/2" ID x 1 3/4" Groove Dia, Str Cut
- hood
2шт.
37
L105752
BRACKET - hood mounting, if used
2шт.
38
195-2036
WASHER,13/32" x 2" x .109"
- special
2шт.
39
92-6
LOCK WASHER,3/8"
2шт.
40
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
2шт.
41
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
If used Hex, 1/2"-13 x 1 1/2", G5, Full Thd
2шт.
42
95-8
WASHER,1/2"
flat, if used 1/2"
2шт.
43
92-8
LOCK WASHER,1/2"
if used 1/2"
2шт.
44
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC, if used
2шт.
45
13-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
4шт.
46
A27328
SPACER
- hood
4шт.
47
92-5
LOCK WASHER,5/16"
4шт.
48
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC
4шт.
49
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
50
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16"
1шт.
51
92-5
LOCK WASHER,5/16"
1шт.
52
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC
1шт.
53
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
54
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16"
1шт.
55
92-5
LOCK WASHER,5/16"
1шт.
57
L105124
LATCH HOOK
BRACKET - hood panel lock
4шт.
58
151-542
RIVET,Pop, 3/16" x 3/8"
POP RIVET - 3/16" x 3/8"
8шт.
59
L105100
HOOK
- hood panel
4шт.
60
L47159
BRACKET
- anchor, if used
4шт.
61
T11232
PIN
- fastener
4шт.
62
132-45
COTTER PIN,1/8" x 5/8"
Pin, Split (Cotter), 1/8" x 5/8"
4шт.
63
182-244
BOLT
MACHINE SCREW - pan head, slotted, 5/16" - 18 NC x 1", if used
4шт.
64
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16", if used
4шт.
65
92-5
LOCK WASHER,5/16"
if used 5/16"
4шт.
66
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC, if used
4шт.
S/B 100110, 10" foam strip 3/8" thick x 1" wide (4 req'd) Order L35756X 50' roll and cut to length.
1шт.
S/B L105861, 29" foam strip 3/8" thick x 1" wide (2 req'd) Order L35756X 50' roll and cut to length.
1шт.
Выбрано товаров: 68
