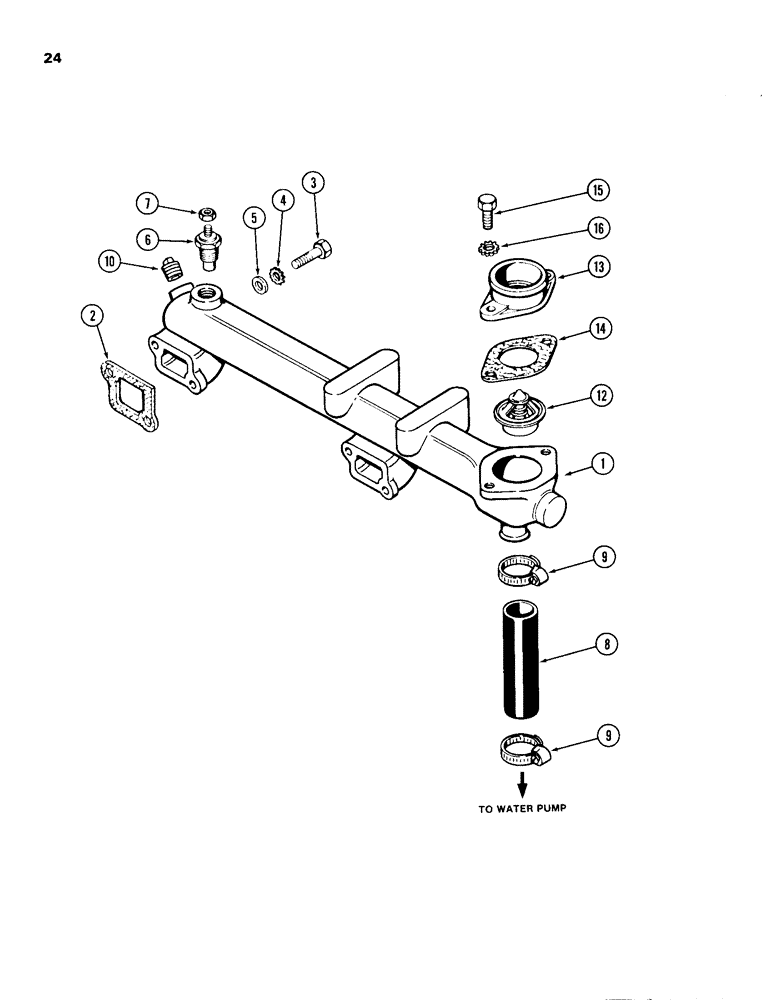

Запчасти Case 680H (024) - WATER MANIFOLD, 336BD DIESEL ENGINE, THERMOSTAT (02) - ENGINE

1

A141963

MANIFOLD

- water

1шт.

2

A166147

GASKET

- water manifold

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

4

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

5

195-25

WASHER,3/8"

- flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

6

L104249

SWITCH

UNIT - sending, engine temperature

1шт.

7

193-1000

NUT,Keps, w/LW,#10-32

- hex brass, No. 10 NF

1шт.

8

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- manifold to water pump, 1-1/4 inch ID x 5 inch (32 x 127 mm)

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 44 mm)

2шт.

10

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head pipe, 1/2 inch PT

1шт.

12

A57641

THERMOSTAT

- water temperature, 180 degree F (82 degree C)

1шт.

13

A58736

HOUSING

- thermostat

1шт.

14

A166148

GASKET

- housing (Replaces G46907)

1шт.

A166148 gasket - Illustration shows this as a single hole gasket. A166148 is a dual hole gasket for double thermostat. If single hole gasket is required, order G46907.

1шт.

15

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

16

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

1шт.
