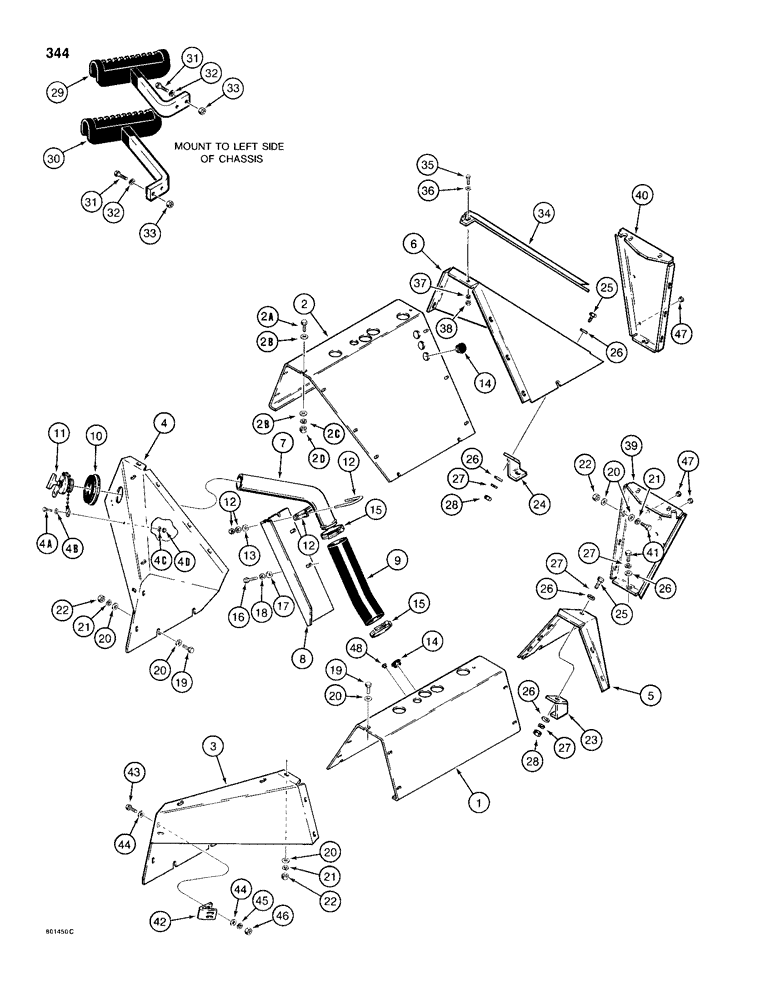

Запчасти Case 680H (344) - FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

L102590

FENDER

- rear, right-hand, not shown, used on L107623 frame, see Figure 338

1шт.

2

L102591

FENDER

- rear, left-hand, not shown, used on L107623 frame, see Figure 338

1шт.

2

L108235

FENDER

- rear, left-hand, used on L108867 frame, see Figure 338

1шт.

2a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

14шт.

2b

95-6

WASHER,3/8"

- flat, 3/8"

28шт.

2c

92-6

LOCK WASHER,3/8"

14шт.

2d

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

14шт.

3

L102757

SHIELD

- fender, right-hand, rear, not shown, used on L107623 frame, see Figure 338

1шт.

3

L108040

SHIELD

- fender, right-hand, rear, used on L108867 frame, see Figure 338

1шт.

4

L102758

SHIELD - fender, left-hand, rear, not shown, used on L107623 frame, see Figure 338

1шт.

4

L108041

SHIELD

- fender, left-hand, rear, used on L108867 frame, see Figure 338

1шт.

4a

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

4b

95-4

WASHER,1/4"

- flat, , if used 1/4"

1шт.

4c

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

1шт.

4d

25-104

NUT,1/4"-20, G5

If used 1/4"-20, G5

1шт.

5

L102787

SHIELD

- fender, right-hand, front, used on L107623 frame, see Figure 338

1шт.

5

L108038

SHIELD

- fender, right-hand, front, used on L108867 frame, see Figure 338

1шт.

6

L102788

SHIELD - fender, left-hand, front, used on L107623 frame, seeFigure 338

1шт.

6

L109273

SHIELD

- fender, left-hand, front, used on L108867 frame, see Figure 338

1шт.

7

L103294

FUEL TUBE,2.5" OD x 17.2, 5.65" L

TUBE - fuel filler

1шт.

8

L108265

COVER ASSY

COVER - fuel filler hose

1шт.

9

S86222

FUEL HOSE

HOSE - tank to filler neck

1шт.

10

L101489

GROMMET

- filler neck

1шт.

11

L108279

PLUG

CAP - filler, with chain fastener

1шт.

12

A13240

CLAMP,2-5/8" ID

- support, includes (2) 92-5 lock washers and (2) 25-105 nuts

1шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

14

353-422

PLUG,Dome, 1.250" hole, Nylon

Used on models without heater or air-conditioning Dome, 1.250" hole, Nylon

4шт.

15

214-177

CLIP

CLAMP - hose

2шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

17

95-8

WASHER,1/2"

flat 1/2"

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

22шт.

20

95-6

WASHER,3/8"

- flat, 3/8"

57шт.

21

92-6

LOCK WASHER,3/8"

30шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

28шт.

23

L103836

SUPPORT ASSY.

SUPPORT - front shield, right-hand

1шт.

24

L103837

SUPPORT ASSY.

SUPPORT - front shield, left-hand

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

26

95-6

WASHER,3/8"

- flat, 3/8"

10шт.

27

92-6

LOCK WASHER,3/8"

6шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

29

L102993

STEP

- upper

1шт.

30

L102994

STEP

- lower

1шт.

31

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

32

92-8

LOCK WASHER,1/2"

4шт.

33

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

34

L108090

STRIP

- door frame, cab models

1шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Cab models Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

36

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", cab models

4шт.

37

92-5

LOCK WASHER,5/16"

cab models 5/16"

4шт.

38

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, cab models

4шт.

39

L102823

PANEL ASSY.

PANEL - right-hand, front, cab models

1шт.

40

L109474

PANEL ASSY.

PANEL - left-hand, front, cab models

1шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

42

L104868

BRACKET

- shield anchor, canopy models

2шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

44

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

45

92-6

LOCK WASHER,3/8"

4шт.

46

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

47

353-402

PLUG,Dome, .375" hole, Nylon

(10 mm), Used on models without cold start system and without air-conditioning Dome, .375" hole, Nylon

6шт.

48

353-403

PLUG,Dome, .437" hole, Nylon

1шт.
