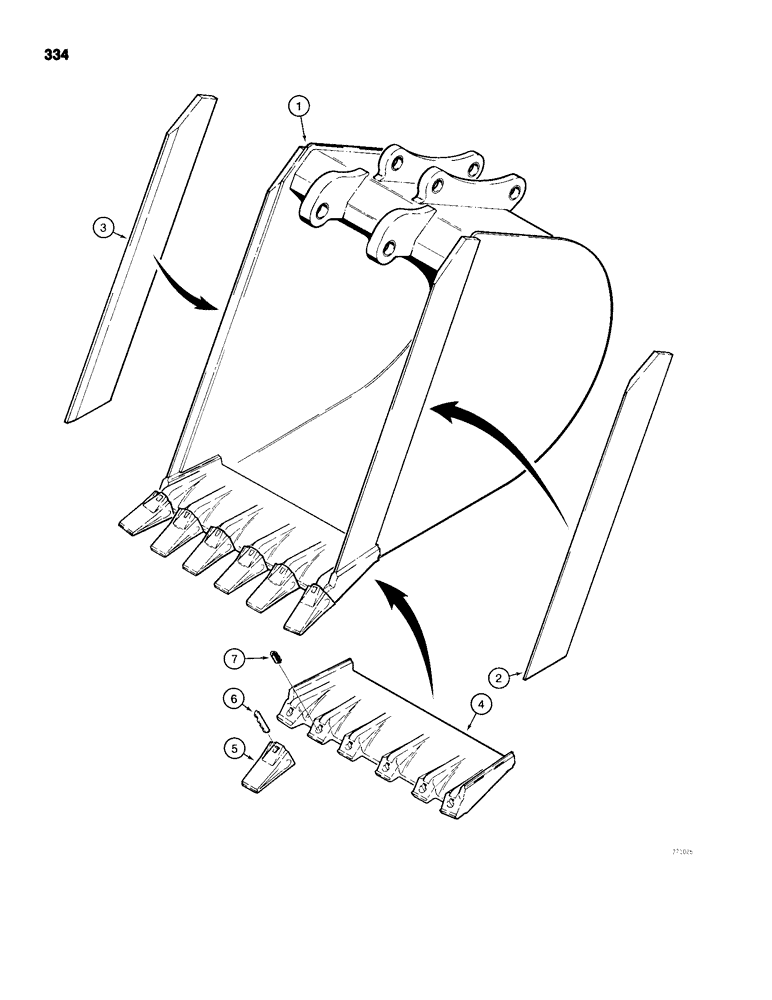

Запчасти Case 680H (334) - BACKHOE BUCKETS, HEAVY DUTY TRENCHING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

L107622

BUCKET

- 24 inch (610 mm) heavy duty, machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 9

1шт.

2

L72992

BLADE

CUTTING EDGE - bucket, right-hand side

1шт.

3

L72993

BLADE

CUTTING EDGE - bucket, left-hand side

1шт.

L72991

EDGE, CUTTING

CUTTING EDGE ASSEMBLY - center, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

CUTTING EDGE - center

1шт.

5

R38572

TOOTH

POINT - tooth

6шт.

6

R35318

PIN

- tooth

6шт.

7

R35319

LOCK ASSY

LOCK - tooth

6шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, lug assembly

2шт.

9

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, lug assembly

4шт.

1

L107295

BUCKET

- 30 inch (762 mm) heavy duty, machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 7

1шт.

2

L72992

BLADE

CUTTING EDGE - bucket, right-hand side

1шт.

3

L72993

BLADE

CUTTING EDGE - bucket, left-hand side

1шт.

L73209

BLADE

CUTTING EDGE ASSEMBLY - center, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

CUTTING EDGE - center

1шт.

5

R38572

TOOTH

POINT - tooth

6шт.

6

R35318

PIN

- tooth

6шт.

7

R35319

LOCK ASSY

LOCK - tooth

6шт.
