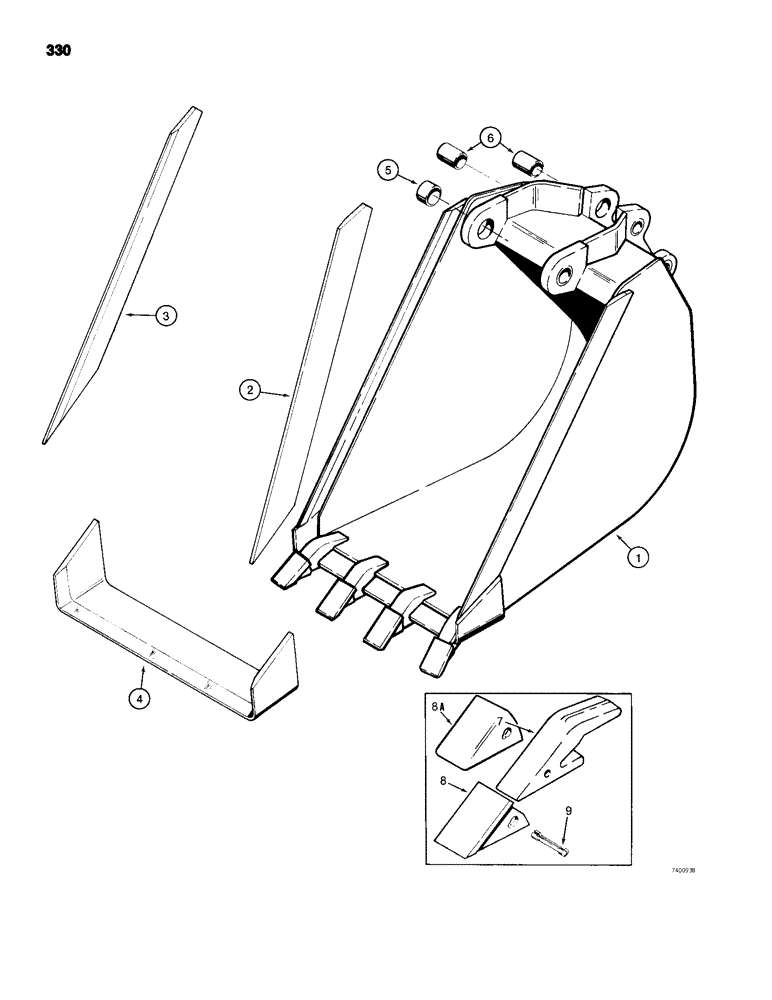

Запчасти Case 680H (330) - BACKHOE BUCKETS, BUCKET TEETH - INCLUDED WITH BUCKET (09) - CHASSIS/ATTACHMENTS

1

L107618

BUCKET

- 24" (610 mm) high capacity, machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

L70084

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

L70083

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D41673

EDGE, CUTTING

CUTTING EDGE - center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link

4шт.

1

L107716

BUCKET

- 30 inch (762 mm) high capacity, machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

L70084

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

L70083

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D41870

EDGE, CUTTING

CUTTING EDGE - center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link

4шт.

1

L107692

BUCKET

- 36 inch (914 mm) high capacity, machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

L70084

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

L70083

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

L43412

EDGE, CUTTING

CUTTING EDGE - center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link

4шт.

L43266

TOOTH

ASSEMBLY - Includes: Refs. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D39093

TOOTH

POINT - tooth

1шт.

8a

D51750

BUCKET TOOTH POINT

POINT - tooth, heavy duty service option

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point

1шт.
