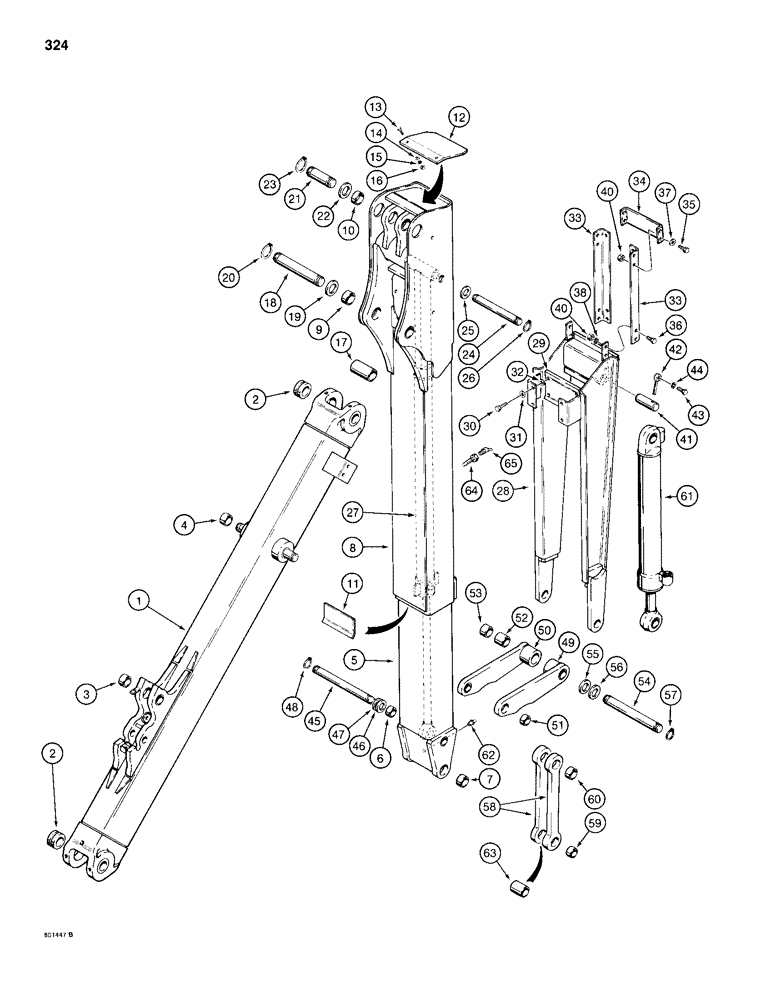

Запчасти Case 680H (324) - EXTENDABLE DIPPER MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

L101449

BOOM

- backhoe, used with extendable dipper only, Includes: Ref. 2 - 4

1шт.

2

L70791

BUSHING,57.38mm ID x 82.55mm OD x 38.1mm L

- boom to tower and dipper

4шт.

3

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at cylinder mounting, 2-1/2" (64 mm) OD

2шт.

4

L77788

BUSHING

- at boom cylinder mounting, 3" (76 mm) OD

2шт.

5

L104788

CABLE EXTENSION

EXTENSION - dipper arm, inner, Includes: Ref. 6 and 7

1шт.

6

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- at bucket link

2шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- at bucket

2шт.

8

L101460

ARM

- dipper, Includes: Ref. 9 - 11

1шт.

9

L55734

BUSHING

- at boom pivot

2шт.

10

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- at dipper pivot

2шт.

11

L57012

PLATE ASSY.

PLATE - wear

1шт.

12

L78390

COVER ASSY

COVER - end

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

14

95-8

WASHER,1/2"

flat 1/2"

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-108

NUT,1/2"-13, G5

- hex, self-locking, 1/2" - 13 NC

2шт.

17

L100360

SPACER

-, Serial Range: dipper-boom

1шт.

18

L54388

AXLE PIN

PIN -, Serial Range: dipper-boom

1шт.

19

D41472

WASHER

- flat, 2-1/4", special

2шт.

20

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

2шт.

21

L73598

AXLE PIN

PIN - dipper, Serial Range: cylinder-dipper

1шт.

22

195-2155

WASHER,2 1/16" x 3" x .109"

- special

2шт.

23

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

24

L54407

AXLE PIN

PIN - extension, Serial Range: cylinder-dipper

1шт.

25

L79009

WASHER

- flat, 1-1/2", special

2шт.

26

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

27

REF

INSTRUCTION

CYLINDER - dipper extension, parts list Figure 291

1шт.

28

L100120

GUIDE

- bucket cylinder, Includes: Ref. 29 and 30

1шт.

29

L100121

PLATE ASSY.

PLATE - wear

1шт.

30

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

31

R24323

WASHER

- flat, 1/2", special

1шт.

To lube the internal slides on the extendahoe the grease gun must use 219-107 nozzle with 219-89 zerk screwed into it.

1шт.

32

D64050

WASHER

Wear Plate Spacer

1шт.

33

L78977

ANGLE

Bucket Cylinder Hose Support

2шт.

34

L104252

BRACKET

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

37

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

38

92-6

LOCK WASHER,3/8"

4шт.

40

131-6

LOCK NUT,3/8"-16, GC

Hex, Self Locking, 3/8"

8шт.

41

L53181

PIN

Bucket Cylinder to Bucket Cylinder Guide

1шт.

42

R17756

ROD,12.7mm OD x 109.54mm L

Lock Pin

1шт.

43

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

44

92-8

LOCK WASHER,1/2"

1шт.

45

L58783

AXLE PIN

Dipper Extension Cylinder and Bucket Cylinder Guide to Dipper Extension

1шт.

46

L55703

WASHER

Special

2шт.

47

L79009

WASHER

Special

1шт.

48

T37909

SNAP RING,#150, Ext

Ring, Snap, , pin #150, Ext

2шт.

49

L104430

DRAG LINK

LINK ASSEMBLY - guide, right-hand, Includes: Refs. 51 - 53

1шт.

50

L104431

DRAG LINK

LINK ASSEMBLY - guide, left-hand, Includes: Ref. 51 - 53

1шт.

51

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- guide link, at bar end

1шт.

52

D40089

BUSHING

- guide link, at boss, long

1шт.

53

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- guide link, at boss, short

1шт.

54

L74047

AXLE PIN

PIN - guide and dump link to bucket cylinder at rod end

1шт.

55

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, shim

1шт.

56

L50511

WASHER

- special, 1-3/4"

2шт.

57

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

58

L104437

DRAG LINK

LINK ASSEMBLY - bucket, Includes: Ref. 59 and 60

2шт.

59

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, 1-1/2" (38 mm) ID

1шт.

60

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- link, 1-3/4" (44 mm) ID

1шт.

61

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, parts list Figure 288

1шт.

62

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

63

L55723

SPACER

- bucket links

1шт.

64

219-107

NOZZLE CAP

NOZZLE - extension, grease fitting, used with Ref. 13 to lubricate dipper slide

1шт.

65

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT, used with Ref. 12 to lubricate dipper slide

1шт.

D16615

STRIP

KIT - service, wear strip, includes four wear strips, one grease fitting, one nozzle, and installation instructions

1шт.
