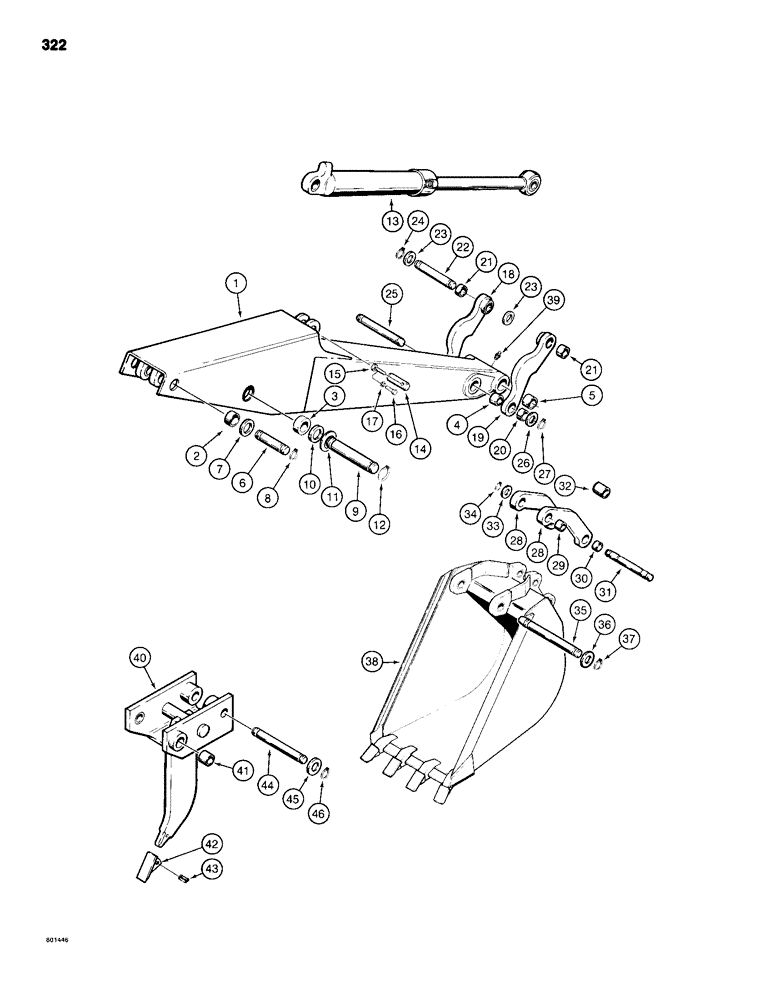

Запчасти Case 680H (322) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

1

L107300

BOOM

DIPPER ASSEMBLY - backhoe, Includes: Ref. 2 - 5

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- dipper cylinder mounting

2шт.

3

L55734

BUSHING

- dipper pivot

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- dipper at bucket link

2шт.

5

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper at bucket

2шт.

6

L73598

AXLE PIN

PIN - dipper, Serial Range: cylinder-dipper

1шт.

7

195-2155

WASHER,2 1/16" x 3" x .109"

- special

2шт.

8

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

9

L54388

AXLE PIN

PIN -, Serial Range: dipper-boom

1шт.

10

D41472

WASHER

- flat, 3" (76 mm) OD, special

1шт.

11

L79228

WASHER,64.26mm ID x 152.4mm OD x 2.16mm Thk

- flat, 6" (152 mm) OD, special

1шт.

12

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

2шт.

13

G103856

CYLINDER BLOCK

CYLINDER - hydraulic, bucket, parts list Figure 288

1шт.

14

L53181

PIN

- bucket, Serial Range: cylinder-dipper

1шт.

15

R17756

ROD,12.7mm OD x 109.54mm L

PIN - retaining

1шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

17

92-8

LOCK WASHER,1/2"

1шт.

18

L107377

DRAG LINK

LINK - bucket guide, left-hand

1шт.

19

L107376

DRAG LINK

LINK - bucket guide, right-hand, Includes: Ref. 20 and 21

1шт.

20

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- link, for 1-1/2" (38 mm) pin

1шт.

21

L58710

BUSHING,44.45mm ID x 53.98mm OD x 44.45mm L

- link, for 1-3/4" (44 mm) pin

1шт.

22

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - bucket cylinder to bucket link

1шт.

23

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- bucket cylinder pin

1шт.

24

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

25

D53812

PIVOT PIN,1.5" OD x 10.14" L

PIN - guide, Serial Range: link-dipper

1шт.

26

L79009

WASHER

- special

1шт.

27

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

28

L104435

DRAG LINK

LINK - backhoe, Includes: Ref. 29 and 30

2шт.

29

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- link, for 1-3/4" (44 mm) pin

1шт.

30

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, for 1-1/2" (38 mm) pin

1шт.

31

D37614

PIN,38mm Od x 246mm L

-, Serial Range: link-bucket

1шт.

32

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER -, Serial Range: link-bucket

1шт.

33

L79009

WASHER

- special

2шт.

34

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

35

L79166

AXLE PIN

PIN -, Serial Range: bucket-dipper

1шт.

36

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-13/16" (46 mm) ID, special

1шт.

37

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

38

REF

INSTRUCTION

BUCKET - backhoe, see Figures 328-334 for proper bucket

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

D16484

FROST POINT - backhoe, machinery item, see Figure 2 for ordering, Includes: Ref. 40 - 46

1шт.

40

D54136

SUPPORT ASSY.

BODY - frost point, Includes: Ref. 41 - 43

1шт.

41

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- frost tooth

2шт.

42

D83306

POINT

- tooth

1шт.

43

D43417

PIN

FLEX PIN - point

1шт.

44

D54218

PIN,38.1mm OD x 345.95mm L

- bucket link to frost tooth

1шт.

45

195-63

WASHER,1 5/8" x 3 1/4" x .180"

- flat, 1-9/16"

2шт.

46

D25279

SNAP RING,M35, Int

- pin retaining

2шт.
