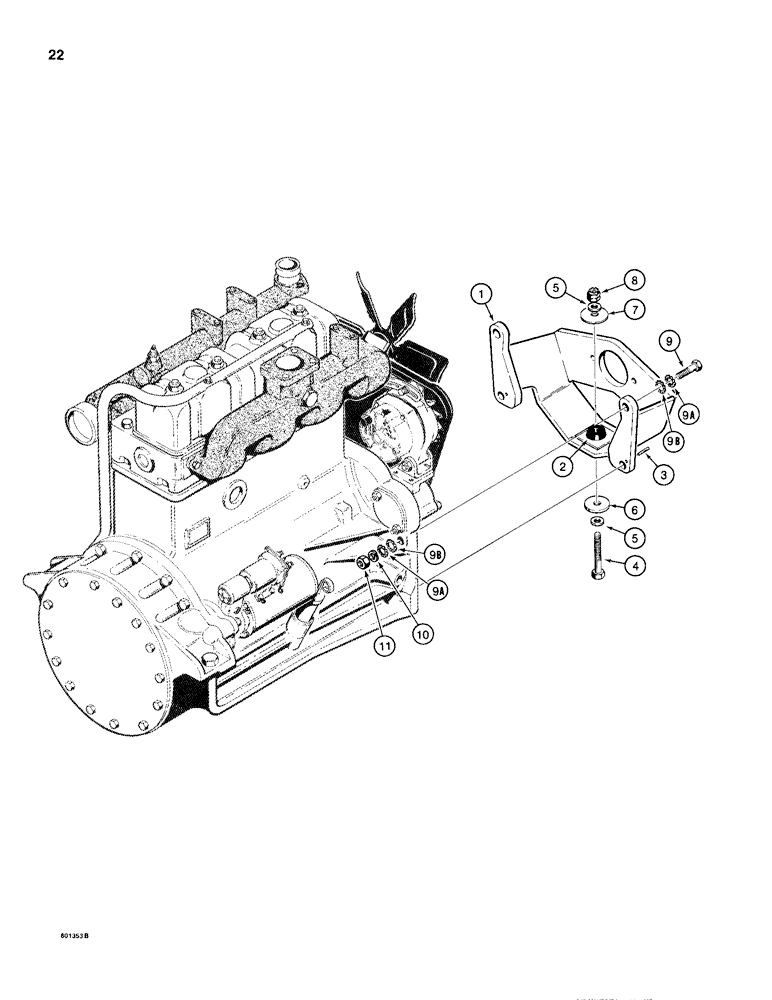

Запчасти Case 680H (022) - ENGINE MOUNTING (02) - ENGINE

1

L78158

BRACKET

- engine mounting, Includes: Ref. 2

1шт.

2

A19066

MOUNTING PARTS

INSULATOR - rubber mount

1шт.

3

139-64

PIN,1/8" x 1 1/2", Tapered

- taper, No. 5 x 1-1/2"

2шт.

4

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex head, 3/4" - 10 NC x 4-1/2"

1шт.

5

L79179

WASHER

- special

2шт.

6

L100884

WASHER

- flat, 3/4", 4-1/2" OD, bottom, special

1шт.

7

A19068

WASHER

- flat, 3/4", top, special

1шт.

8

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, lock, 3/4" - 10 NC

1шт.

9

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

4шт.

9a

195-45

WASHER,3/4"

- internal-external tooth lock, 3/4"

8шт.

9b

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

8шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

11

25-1012

NUT,3/4"-10, G5

4шт.
