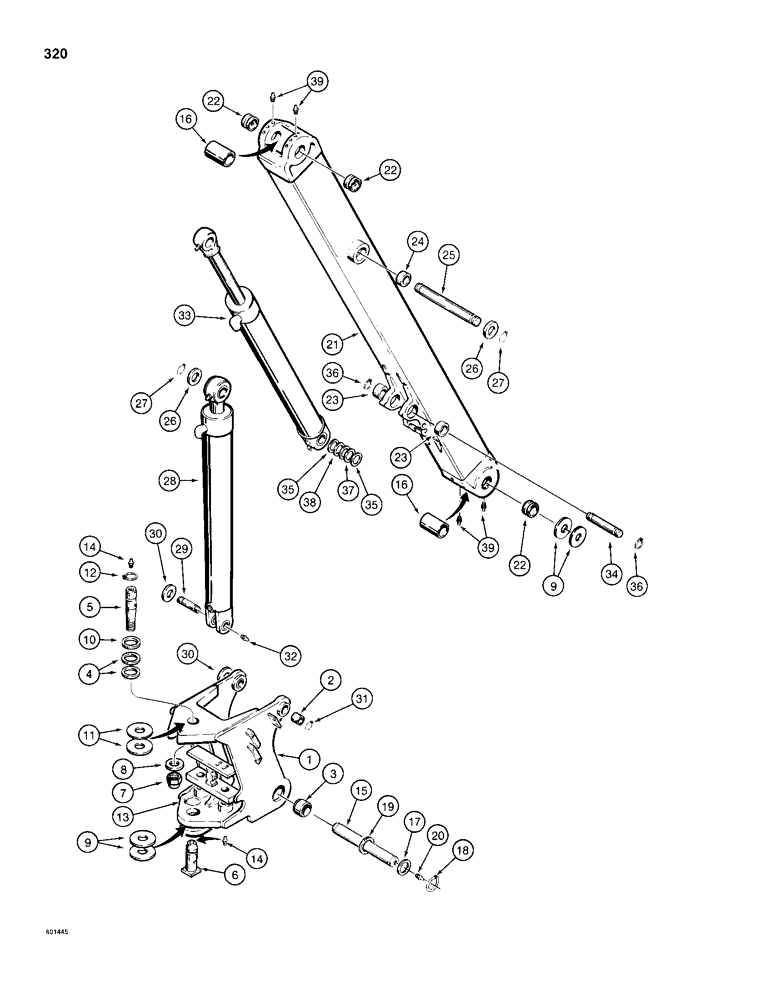

Запчасти Case 680H (320) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

L108081

SUPPORT ASSY.

SWING TOWER - backhoe, Includes: Ref. 2 and 3

1шт.

2

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- at boom cylinders

2шт.

3

L78951

BUSHING

- at boom

2шт.

4

195-2167

WASHER,2 5/8" x 4" x .109"

- spacer

1шт.

5

L105696

AXLE PIN,63.5mm OD x 246.38mm L

PIN - tower mounting, upper

1шт.

6

L59120

AXLE PIN

PIN - tower mounting, lower

1шт.

7

25-1528

JAM NUT

- hex, 1-3/4" - 12 NF

1шт.

8

L59117

WASHER

- special, lower pin

1шт.

9

L47461

WASHER

SHIM - pin mounting, lower pin

1шт.

10

L47700

WASHER

- special, upper pin

1шт.

11

L79228

WASHER,64.26mm ID x 152.4mm OD x 2.16mm Thk

- shim, upper pin

1шт.

12

L16015

RING

SNAP RING - upper pin retaining

1шт.

13

L59033

SNAP RING,#212, Ext

Ring, Snap, , lower pin #212, Ext

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

15

L79012

AXLE PIN

PIN -, Serial Range: boom-tower

1шт.

16

L100360

SPACER

- boom at swing tower and dipper casting

2шт.

17

D41472

WASHER

- special

1шт.

18

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

2шт.

19

L79228

WASHER,64.26mm ID x 152.4mm OD x 2.16mm Thk

- special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

21

L101425

BOOM

- backhoe, not used with extendable dipper, see Figure 325, Includes: Ref. 22 - 24

1шт.

22

L70791

BUSHING,57.38mm ID x 82.55mm OD x 38.1mm L

- boom ends

4шт.

23

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at dipper cylinder mounting, 2-1/2" (64 mm) OD

2шт.

24

L77788

BUSHING

- at boom cylinder mounting, 3" (76 mm) OD

2шт.

25

L54419

AXLE PIN

PIN - boom, Serial Range: cylinder-boom

1шт.

26

195-2155

WASHER,2 1/16" x 3" x .109"

- special

2шт.

27

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

28

G101256

CYLINDER ASSY.

CYLINDER - boom, parts list Figure 284

2шт.

29

L79244

AXLE PIN,38.1mm OD x 120.65mm L

PIN - boom, Serial Range: cylinder-tower

2шт.

30

L79009

WASHER

- special

1шт.

31

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, L79244 pin

2шт.

33

G101348

CYLINDER

- hydraulic, dipper, parts list Figure 286

1шт.

34

L54437

AXLE PIN

PIN - dipper, Serial Range: cylinder-boom

1шт.

35

L11917

WASHER

SPACER - dipper cylinder to boom, .07" (1.78 mm) thick

1шт.

36

D26919

SNAP RING,#200, Ext

Ring, Snap, , dipper cylinder pin #200, Ext

2шт.

37

L47422

WASHER,51.3mm ID x 114mm OD x 6.35mm Thk

SPACER - dipper, cylinder to boom, .25" (6.35 mm) thick

1шт.

38

L47424

WASHER,51.3mm ID x 114mm OD x 4.76mm Thk

SPACER - dipper, cylinder to boom, .18" (4.76 mm) thick

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.
