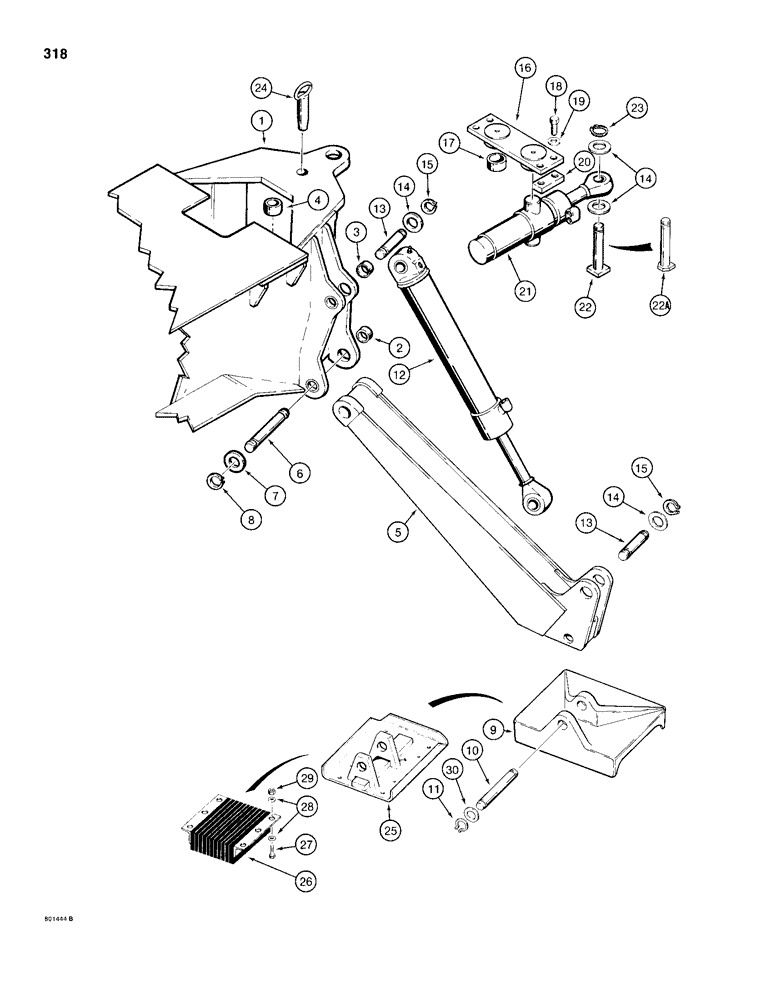

Запчасти Case 680H (318) - BACKHOE MOUNTING FRAME AND STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS - frame assembly, parts list Figure 336, Includes: Ref. 2 - 4

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- stabilizer, Serial Range: leg-frame

4шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- stabilizer, Serial Range: cylinder-frame

4шт.

4

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder

2шт.

5

L104805

STABILIZER

LEG - stabilizer

2шт.

6

D42911

PIN

-, Serial Range: stabilizer-chassis

2шт.

7

195-2155

WASHER,2 1/16" x 3" x .109"

- spacer, special

1шт.

8

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

9

L104849

PLATE ASSY.

PLATE - stabilizer, standard

2шт.

10

L71043

AXLE PIN

PIN -, Serial Range: stabilizer-plate

2шт.

10a

195-2142

WASHER,1 17/32" x 2 1/16" x .109"

- spacer, special

1шт.

11

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

12

G102276

CYLINDER

- stabilizer, parts list Figure 278

2шт.

13

D25079

AXLE PIN,44.45mm OD x 157.2mm L

PIN - stabilizer, Serial Range: cylinder-stabilizer

4шт.

14

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- special

1шт.

15

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

8шт.

16

L104211

PLATE ASSY.

PLATE - swing cylinder mounting, Includes: Ref. 17

1шт.

17

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- plate

2шт.

18

13-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5

- hex head, 1" - 8 NC x 2-3/4", swing plate to chassis

4шт.

19

D30196

WASHER

- special

4шт.

20

L106669

RETAINER

BLOCK - bolt retaining

2шт.

21

G104134

CYLINDER BLOCK

CYLINDER - swing, parts list Figure 280

2шт.

22

L77588

AXLE PIN

PIN - swing cylinder to tower, if used

2шт.

22a

L108156

PIN

- swing cylinder to tower, used with L108081 swing tower only

2шт.

23

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

24

L70598

AXLE PIN

PIN - swing lock

1шт.

25

L78070

PLATE ASSY.

FOOT - cemetery and street, if used

2шт.

26

D61368

PAD

Rubber, bolt on, street and cemetery plate, if used

2шт.

27

111-616

BOLT,Short NK, 5/8"-11 x 1 3/4", G2

- hex head, 5/8" - 11 NC x 1-3/4", if used

8шт.

28

95-10

WASHER,5/8"

- flat, , if used 5/8"

16шт.

29

25-1010

NUT,5/8"-11, G5

If used 5/8"-11, G5

8шт.

Ref. 30 in illustration should read 10a.

1шт.
