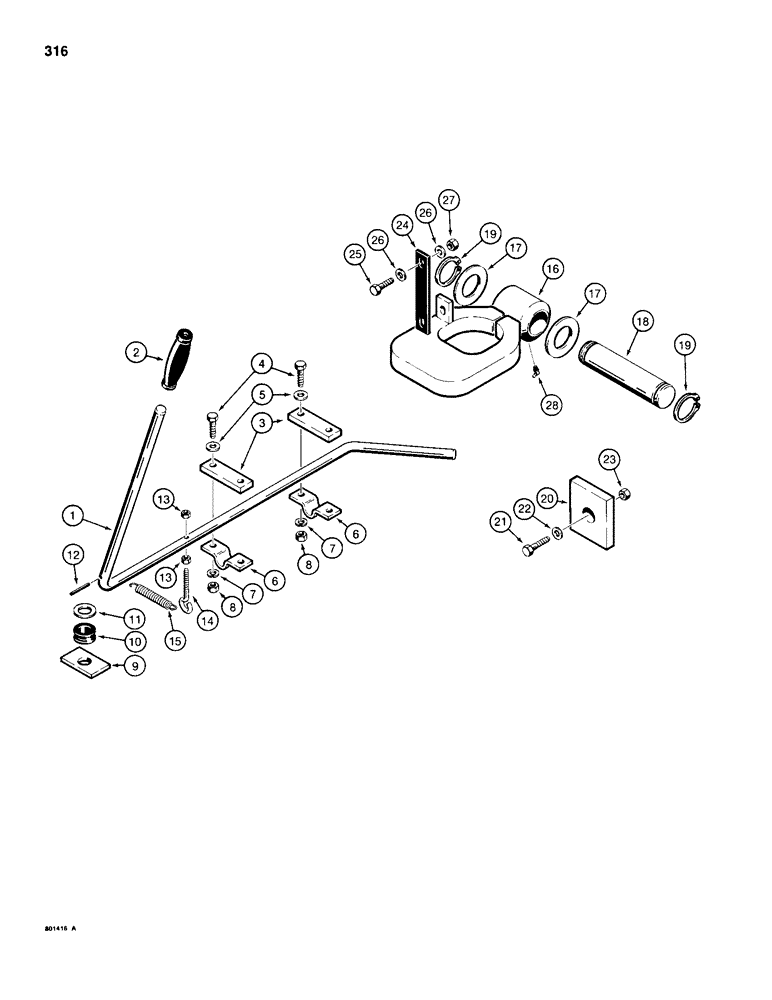

Запчасти Case 680H (316) - BOOM LATCH (09) - CHASSIS/ATTACHMENTS

1

L36219

KIT

LEVER - boom latch kit, includes one each of the following: L107990 handle - upper, L107991 handle - lower, L107992 nut - hex, and 25-1010 nut - hex

1шт.

2

L52477

GRIP

- lever, boom latch

1шт.

3

L57268

BAR

- lock mounting

2шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

5

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

6

L103258

RETAINER

- lever

2шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 18 NC

4шт.

9

L103350

PLATE ASSY.

PLATE - cover, special

1шт.

10

T28755

GROMMET,5/8" ID x 7/8" Groove Dia

- handle

1шт.

11

T22220

WASHER

- special

1шт.

12

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

ROLL PIN - lever, 1/8" x 1-1/2"

1шт.

13

25-104

NUT,1/4"-20, G5

2шт.

14

C10792

BOLT (SPREADER)

EYEBOLT - 1/4" - 20 NC

1шт.

15

L50735

VALVE SPRING

SPRING - eyebolt

1шт.

16

L103307

LATCH ASSY.

LATCH - boom

1шт.

17

A11990

WASHER

- special

2шт.

18

D42611

PIN

- boom, Serial Range: latch-boom

1шт.

19

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

20

L79185

BLOCK

- stop

1шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

22

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

23

131-94

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

24

L73300

STRAP

- boom lock

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

26

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

27

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

28

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
