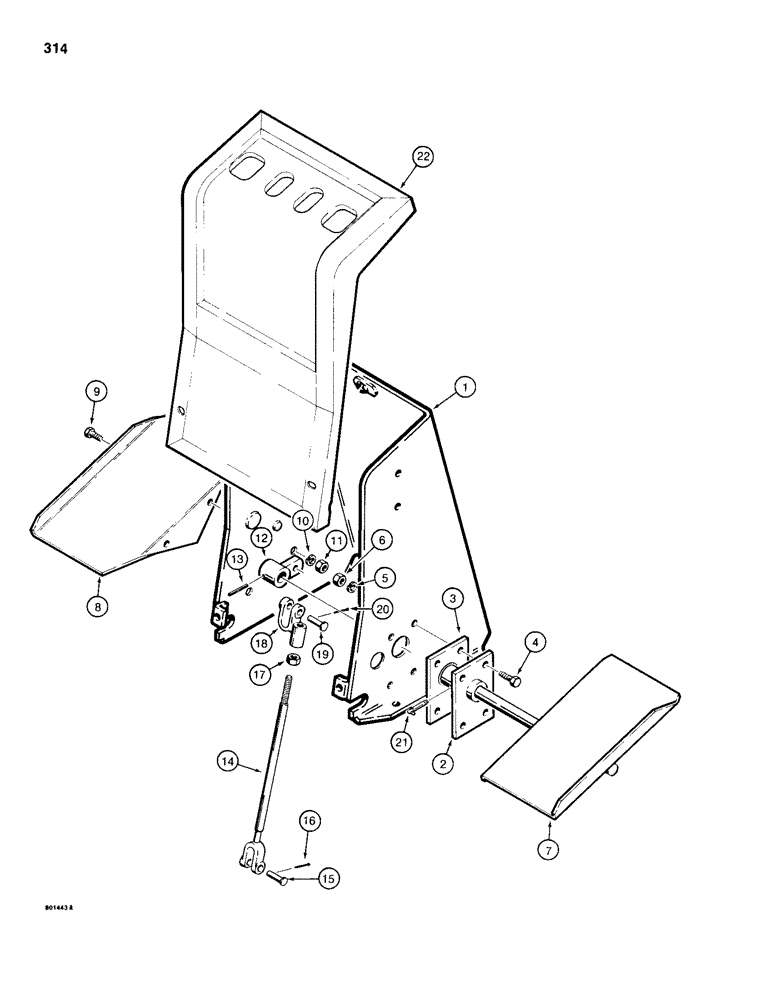

Запчасти Case 680H (314) - EXTENDABLE DIPPER CONTROL WITH HAND SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CONTROL TOWER - backhoe, see Figure 307C

1шт.

2

D87854

BRACKET

SUPPORT - pedal

1шт.

3

L105510

PLATE ASSY.

PLATE - spacer

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

7

D87866

PEDAL

- extendable dipper control

1шт.

8

D87863

PLATFORM

- left-hand

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

D87860

LEVER

- pivot

1шт.

13

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

14

L108537

ROD

- extendable dipper control

1шт.

15

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

16

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

17

25-156

JAM NUT,Jam, 3/8"-24, G5

JAM NUT - hex, 3/8" - 16 NC

1шт.

18

L11182

YOKE,3/8" - 24

- offset, rod end

1шт.

19

114-4

BOLT,Hex, 1/4" - 28 x 1-1/2", Gr 5

CLEVIS PIN - 3/8"

1шт.

20

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

21

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 90 degree, 1/8" NPT

1шт.

22

REF

INSTRUCTION

COVER - control tower, see Figure 307C

1шт.
