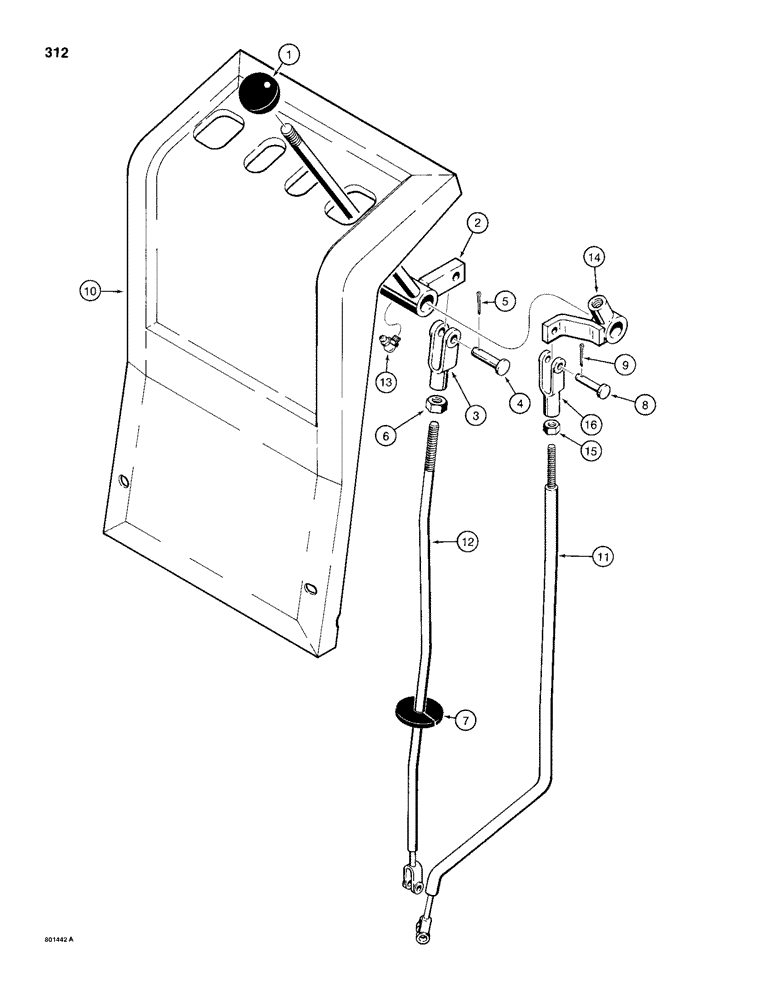

Запчасти Case 680H (312) - EXTENDABLE DIPPER CONTROL WITH FOOT SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever

1шт.

2

L108117

HANDLE

LEVER - control extendahoe

1шт.

3

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - rod end, adjustable, 3/8"

1шт.

4

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

5

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

6

25-156

JAM NUT,Jam, 3/8"-24, G5

JAM NUT - hex, 3/8" - 24 NF

1шт.

7

L109751

SEAL

SEAL - control rod

1шт.

L109751 control rod seal - Black color

1шт.

8

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

9

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

10

REF

INSTRUCTION

COVER - control tower, see Figure 307C

1шт.

11

L102930

ROD

- stabilizer, left-hand

1шт.

12

L106379

ROD

- extendahoe dipper

4шт.

13

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" - 28 taper

1шт.

14

D87834

LEVER

- right-hand stabilizer

1шт.

15

25-155

JAM NUT,Jam, 5/16"-24, G5

JAM NUT - hex, 5/16" - 24 NF

1шт.

16

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - rod end, adjustable

1шт.
