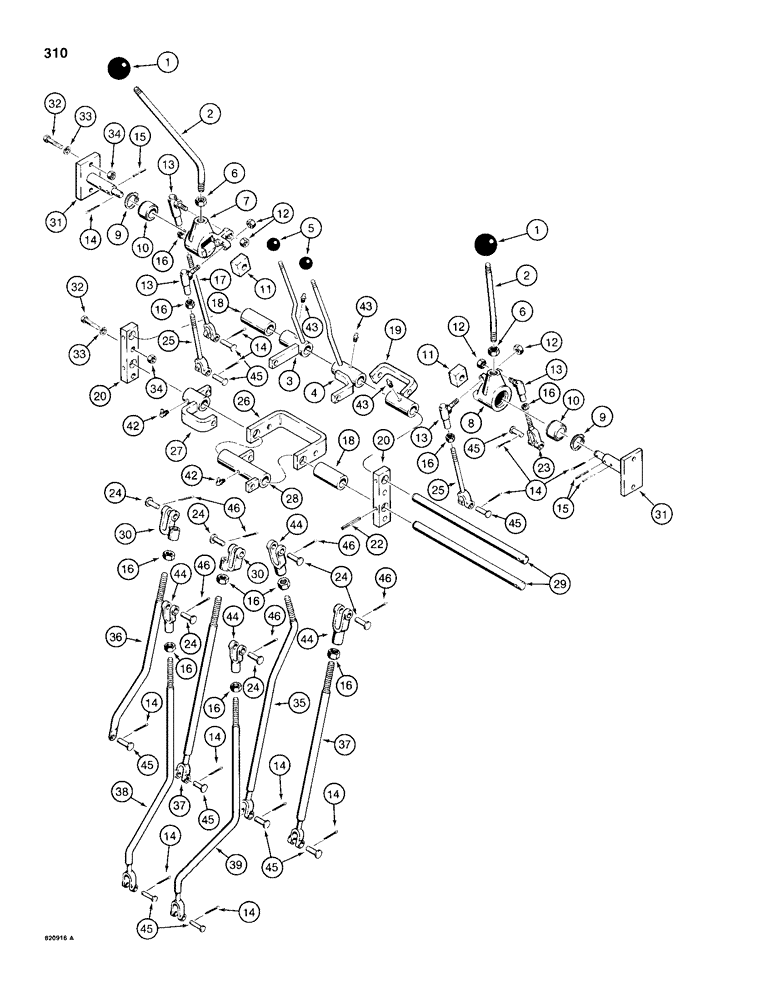

Запчасти Case 680H (310) - BACKHOE CONTROLS WITH HAND SWING (09) - CHASSIS/ATTACHMENTS

1

D39118

KNOB

- control levers

2шт.

2

L108087

LEVER

CONTROL LEVER - boom and swing, dipper and bucket

2шт.

3

L105459

LEVER

CONTROL LEVER - stabilizer, left-hand

1шт.

4

L105456

LEVER

CONTROL LEVER - stabilizer, right-hand

1шт.

5

D59912

KNOB

- stabilizer control lever

2шт.

6

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

2шт.

7

L105056

LEVER

- pivotal, left-hand

1шт.

8

L109118

LEVER

- pivotal, right-hand

1шт.

9

CASD38298

RING

Snap, 1.438", Int, #143, brg

2шт.

10

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

BEARING - self-aligning

2шт.

11

D38305

BLOCK

- wear

2шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NC

4шт.

13

D38296

JOINT

BALL JOINT - 3/8"

4шт.

14

132-25

COTTER PIN,3/32" x 5/8"

- 3/16" x 5/8"

12шт.

15

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

16

25-156

JAM NUT,Jam, 3/8"-24, G5

JAM NUT - hex, 3/8" - 16 NC

10шт.

17

L106744

ROD

- boom control

1шт.

18

L105446

TUBE

- spacer

2шт.

19

L105454

BRACKET

- dipper pivot

1шт.

20

L106412

SUPPORT ASSY.

SUPPORT - pivot shaft

2шт.

21

RESERVED

1шт.

22

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

23

R20187

ROD

- dipper control, upper

1шт.

24

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

6шт.

25

L106462

ROD

- bucket control

2шт.

26

L105448

BRACKET

- boom pivot

1шт.

27

L107159

LEVER

- swing

1шт.

28

L105450

SHAFT

- bucket

1шт.

29

D79526

ROD

SHAFT - pivot

2шт.

30

L11182

YOKE,3/8" - 24

- offset, rod end

2шт.

31

L106441

SUPPORT ASSY.

SUPPORT - pivot

2шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- hex head, 3/8" - 18 NC x 1-1/4"

8шт.

33

92-6

LOCK WASHER,3/8"

8шт.

34

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

35

L108513

ROD

- lower dipper control

1шт.

36

L108516

ROD

- lower swing control

1шт.

37

L108515

ROD

- lower control, bucket and boom

2шт.

38

L108518

ROD

- left-hand stabilizer

1шт.

39

L108520

ROD

- right-hand stabilizer

1шт.

40

RESERVED

1шт.

41

RESERVED

1шт.

42

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree

2шт.

43

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

3шт.

44

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8"

4шт.

45

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

10шт.

46

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

6шт.
