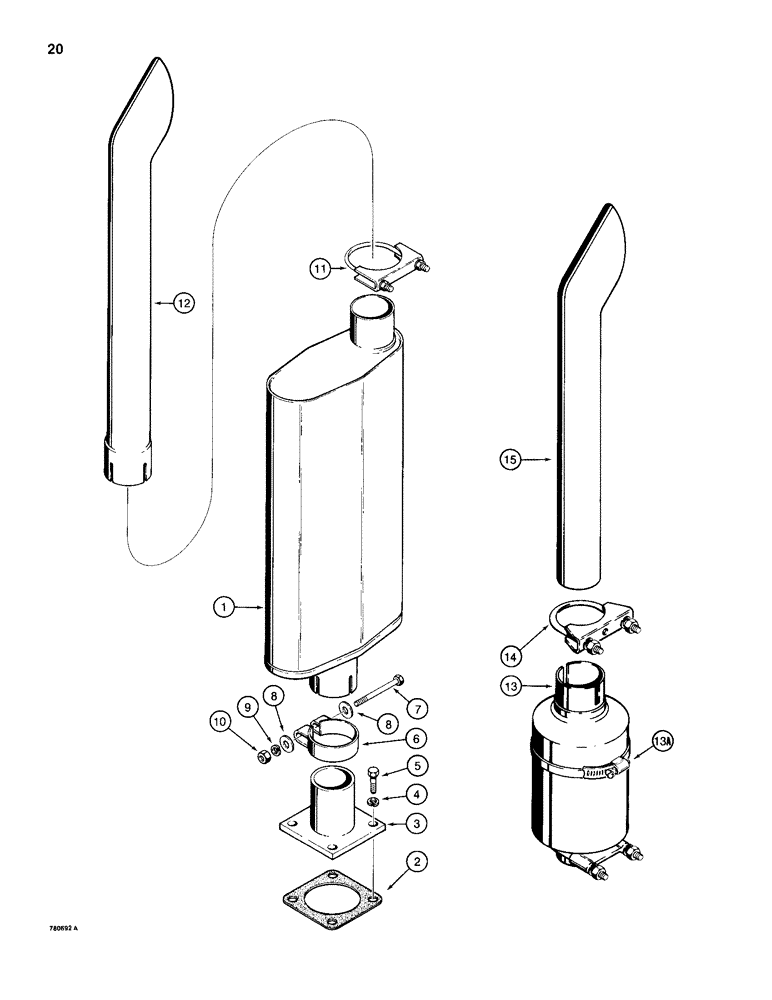

Запчасти Case 680H (020) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

L100137

MUFFLER

- inlet 2-1/2" (64 mm) diameter

1шт.

2

L14218

MANIFOLD GASKET

-, Serial Range: manifold-adapter

1шт.

3

L101953

ADAPTER

-, Serial Range: muffler-manifold

1шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

6

L79984

LAMP BASE

CLAMP - muffler

1шт.

7

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3", muffler clamp (replaces 13-648), 3/8" x 3 1/4" bolt.

1шт.

8

D41740

WASHER

- special, muffler clamp

2шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

11

L79973

CLAMP

- exhaust pipe

1шт.

12

L104036

PIPE CLAMP

EXHAUST PIPE - muffler, 2-1/2" (64 mm) diameter, if used

1шт.

13

L109992

MUFFLER

- spark arrester, Includes: Ref. 13A and 14

1шт.

13a

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - spark arrester muffler

1шт.

14

A13240

CLAMP,2-5/8" ID

-, Serial Range: arrester-pipe

1шт.

15

L105970

PIPE

EXHAUST PIPE - spark arrester, 2-1/2" (64 mm) diameter, if used

1шт.
