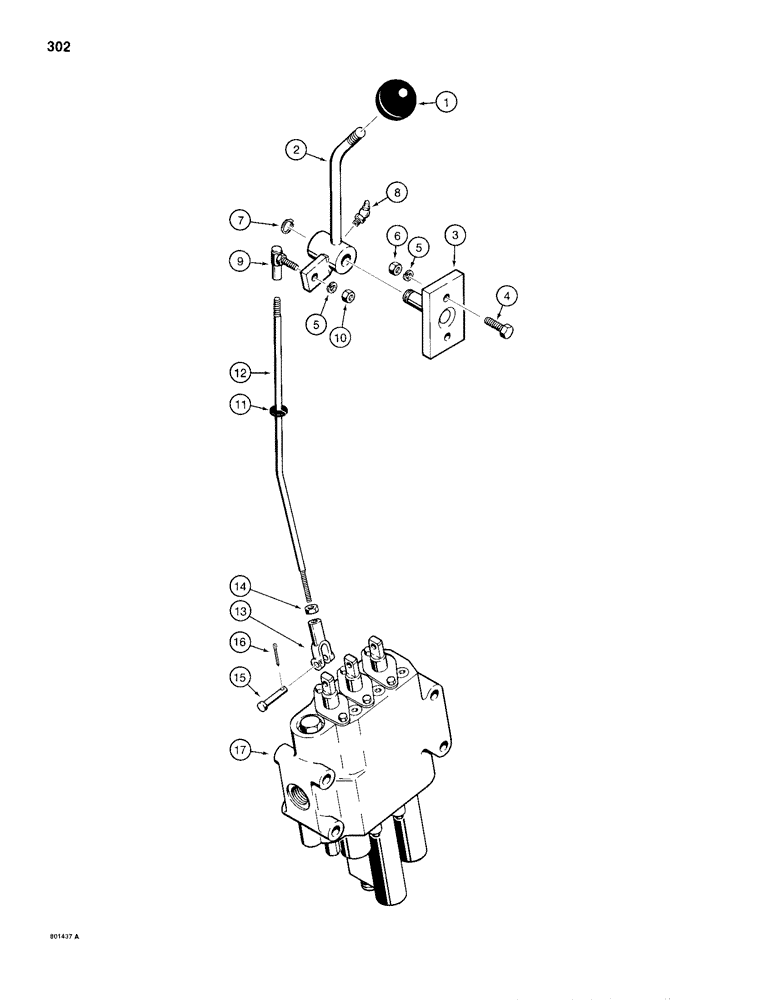

Запчасти Case 680H (302) - LOADER CONTROLS - 3 SPOOL VALVE AND LEVERS (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever

2шт.

2

L103011

LEVER

CONTROL LEVER - clam bucket

1шт.

3

L103233

BRACKET

PIVOT ASSEMBLY - clam bucket

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

7

T25683

SNAP RING,#75, Ext

Ring, Snap, , pivot #75, Ext

1шт.

8

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT

1шт.

9

D38296

JOINT

BALL JOINT - 3/8"

1шт.

10

25-156

JAM NUT,Jam, 3/8"-24, G5

JAM NUT - hex, 3/8" - 16 NC

1шт.

11

L109751

SEAL

SEAL - control rod

1шт.

L109751 control rod seal - Color is black.

1шт.

12

L103020

ROD

- lever, clam bucket

1шт.

13

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - rod end, 5/16"

1шт.

14

25-155

JAM NUT,Jam, 5/16"-24, G5

JAM NUT - hex, 5/16" - 24 NF

1шт.

15

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

16

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

17

REF

INSTRUCTION

CONTROL VALVE - loader, 3 spool, clam bucket, parts list Figure 238

1шт.
