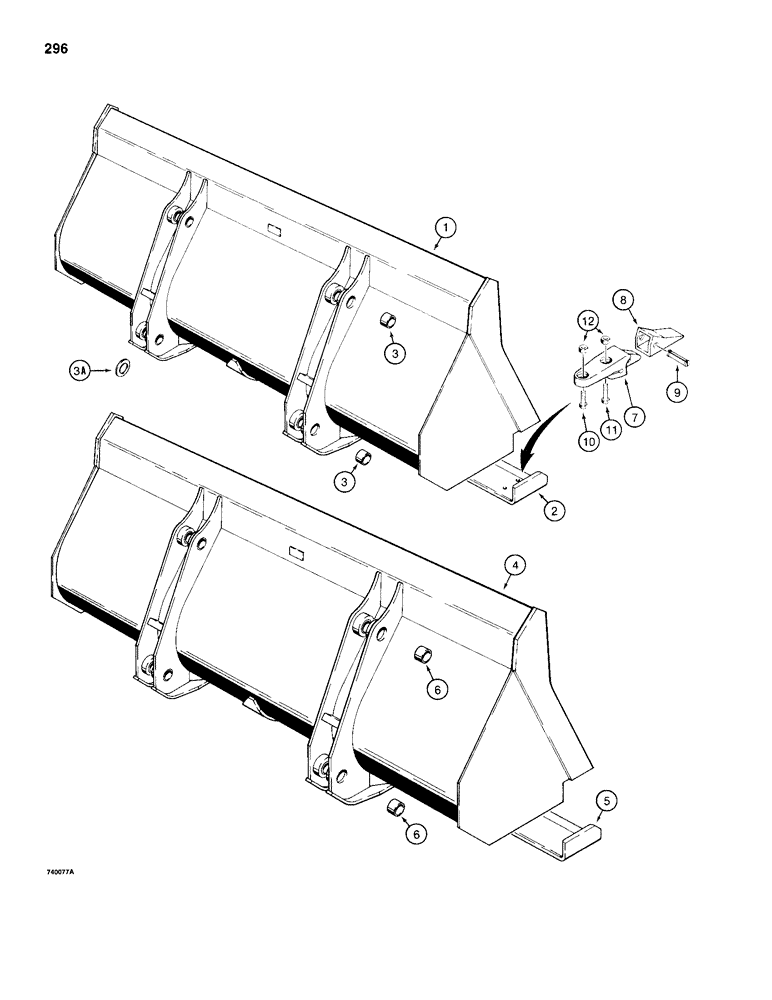

Запчасти Case 680H (296) - LOADER BUCKETS, 1-1/4 CUBIC YARD (1.0 CUBIC METRE) LOADER (09) - CHASSIS/ATTACHMENTS

L74889

BUCKET

ASSEMBLY - 86" (2184 mm) wide, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L58159

EDGE

CUTTING EDGE - front

1шт.

Second Ref. 2, L101620 weld on edge....bolt on edge for that is ZPC21600

1шт.

First Ref. 2, L58159 is a weld on edge..the matching bolt on edge is zpc21578 per jerry at pacal

1шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear

8шт.

L104709

BUCKET

ASSEMBLY - 96" (2483 mm) wide, machinery item, see Figure 2 for odering, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L101620

EDGE, CUTTING

CUTTING EDGE - front

1шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear

8шт.

3a

195-2155

WASHER,2 1/16" x 3" x .109"

- spacer, special

8шт.

L76487

BUCKET

ASSEMBLY - 96" (2483 mm) wide, machinery item, See Figure 2 for odering, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

5

L58427

EDGE, CUTTING

CUTTING EDGE - front

1шт.

6

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear

8шт.

D50780

TOOTH

ASSEMBLY - bucket, Includes: Ref. 7 - 9

8шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point

1шт.

10

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8

8шт.

11

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8

8шт.

12

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC

16шт.
