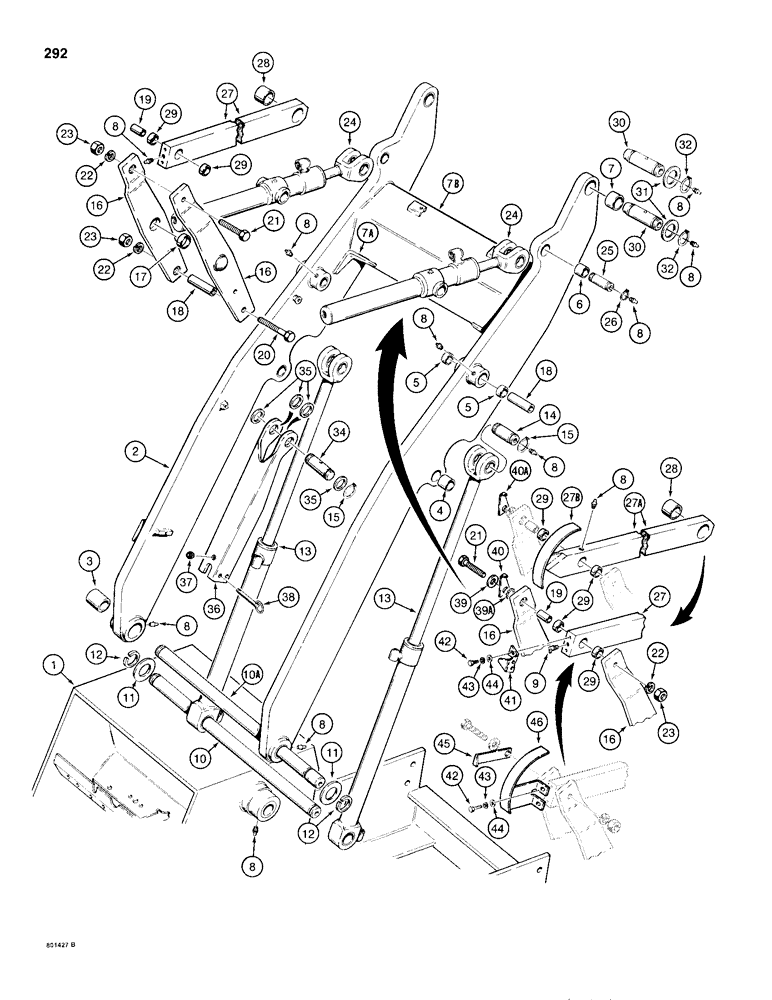

Запчасти Case 680H (292) - LOADER LIFT FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS ASSEMBLY - parts list Figure 336

1шт.

2

L108872

ARM, LIFT

FRAME ASSEMBLY - loader lift, Includes: Ref. 3 - 7B

1шт.

3

L79365

BUSHING

- lift frame at chassis

2шт.

4

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- at lift cylinders

2шт.

5

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- lift frame at bucket linkage

4шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- lift frame at bucket cylinders

2шт.

7

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- lift frame at bucket

2шт.

7a

L52234

BRACKET

- lift arm, welded on, cut, Serial Range: off-replace

2шт.

7b

L111396

PLATE ASSY.

PLATE - spacer, lift arm, welded on, cut, Serial Range: off-replace

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

15шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT, right-hand link

1шт.

10

L57362

SHAFT

PIN - lower, lift cylinders pivot shaft

1шт.

10a

L108427

SHAFT

PIN - upper, lift arm pivot shaft

1шт.

11

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- special

1шт.

12

D34664

RING

SNAP RING - pin retaining

4шт.

13

REF

INSTRUCTION

CYLINDER - loader lift, see Figure 272

2шт.

14

D34658

PIN,44.45mm OD x 101.6mm L

- mounting, lift cylinder to lift frame, right-hand

1шт.

15

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

16

L103392

DRAG LINK

LINK ASSEMBLY - includes bushings, Includes: Ref. 17

4шт.

17

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link at cylinder

1шт.

18

L57197

AXLE PIN

SPACER - link

2шт.

19

L74594

SPACER

- link

2шт.

20

26-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

- hex head, 3/4" - 10 NC x 7", grade 8

2шт.

21

26-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

- hex head, 3/4" - 10 NC x 4-1/2", grade 8

2шт.

22

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

23

129-138

NUT,3/4"-10, G8

4шт.

24

REF

INSTRUCTION

CYLINDER - bucket tilt, see Figure 274

2шт.

25

D34656

PIN,38.1mm OD x 101.6mm L

- bucket cylinder to lift frame

2шт.

26

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

27

L100869

LINK

ASSEMBLY - bucket, used before tractor SN 9140737

2шт.

27a

L108026

DRAG LINK

LINK ASSEMBLY - bucket, used on tractor SN 9140737 and after

2шт.

27b

L108411

BRACKET

INDICATOR - bucket, welded to right-hand link assembly L108026, Includes: Ref. 28 and 29

1шт.

28

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- link, at bucket

1шт.

29

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- link, at bellcrank

2шт.

30

L105080

AXLE PIN

PIN - bucket link and lift, Serial Range: arm-bucket

4шт.

31

195-2155

WASHER,2 1/16" x 3" x .109"

- special

8шт.

32

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

8шт.

33

RESERVED

1шт.

34

L78791

AXLE PIN

PIN - lift cylinder mounting, left-hand

1шт.

35

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- special

4шт.

36

L78530

STRUT

- loader frame

1шт.

37

D42106

GROMMET

- rubber

1шт.

38

L78801

AXLE PIN

PIN - hitch

1шт.

39

L79179

WASHER

- flat, 3/4", special

1шт.

39a

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4", If used

1шт.

40

L100866

BRACKET

INDICATOR - bucket, bellcrank, used before tractor SN 9140737

1шт.

40a

L107670

LEVEL

INDICATOR - bucket, bellcrank, used on tractor SN 9140737 and after

1шт.

41

L100865

INDICATOR - bucket, link, used before tractor SN 9140737

1шт.

42

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

43

92-5

LOCK WASHER,5/16"

if used 5/16"

2шт.

44

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", if used

2шт.

45

L101063

POINTER

INDICATOR - bucket, bellcrank

1шт.

46

L101254

BRACKET

- decal mounting

1шт.
