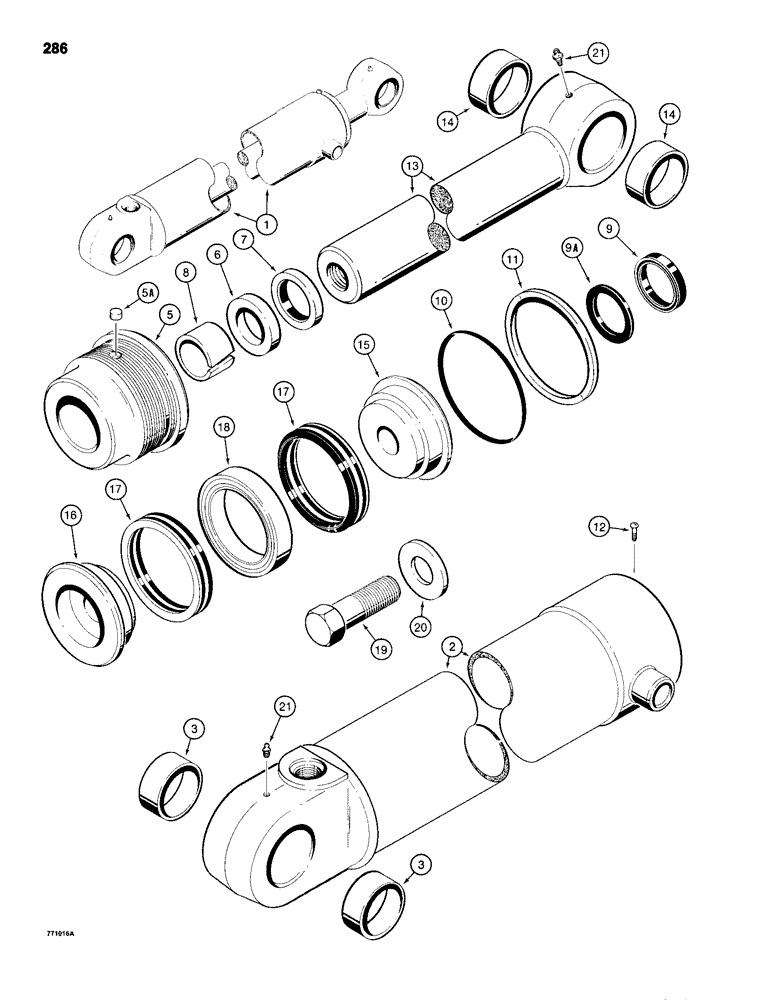

Запчасти Case 680H (286) - G101348 BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

G101348

CYLINDER

ASSEMBLY - dipper, 4-1/2" (114 mm) ID x 40-1/8" (1019 mm) stroke, Includes: Ref. 2 - 21

1шт.

2

G101688

TUBE,4.5" DIA x 49.25" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

RESERVED

1шт.

G104304

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINING RING - gland assembly

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G105513

1шт.

8

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of Seal Kit P/N G105513

1шт.

9

D45571

ROD

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105513

1шт.

9a

G104902

RING

SEAL - piston rod, narrow, used in addition to Ref. 9

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105513

1шт.

11

G32284

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105513

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", if used

1шт.

13

G34324

ROD

ASSEMBLY - piston, 2-1/2" (63 mm) OD, Includes: Ref. 14

1шт.

14

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

15

D49163

PISTON

- split, rod end

1шт.

16

D46931

PISTON

- split, bolt end

1шт.

17

D47205

PACKING

ASSEMBLY - piston, V-type

2шт.

Part of Seal Kit P/N G105513

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

19

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

20

G32351

WASHER

- special

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105513

GASKET KIT

KIT - seal, Includes: Ref. 7-9, 10, 11 and 17

1шт.

G100780

SEAL

- piston rod, service option - severe heat or cold

1шт.
