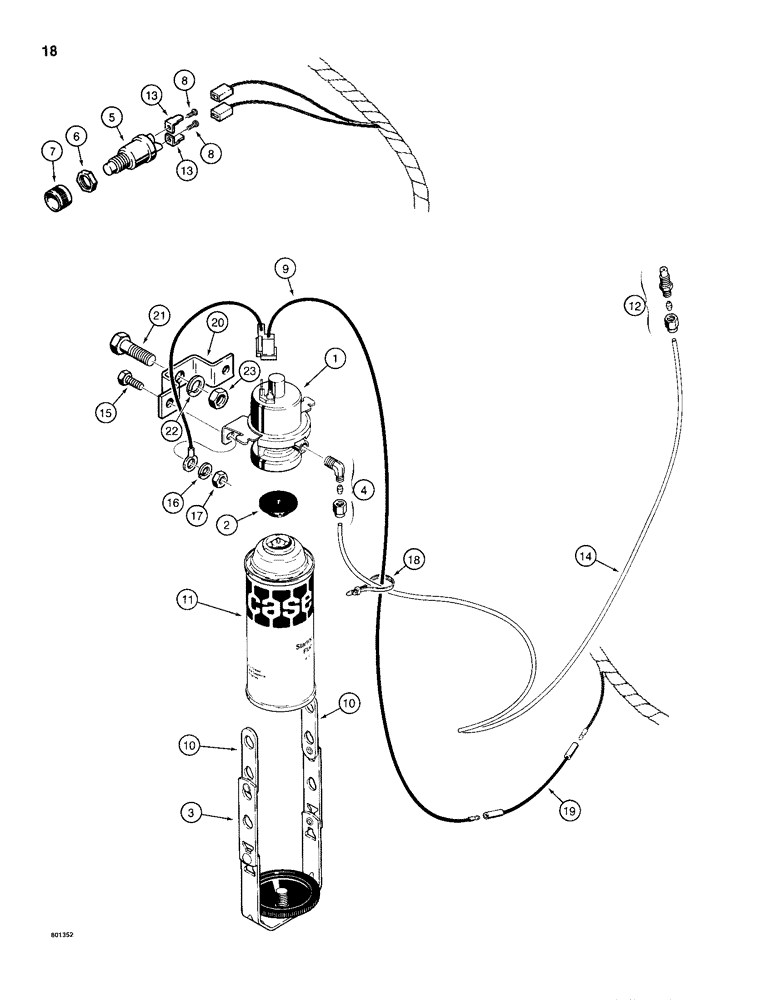

Запчасти Case 680H (018) - COLD START SYSTEM, CAB AND CANOPY MODELS, CANOPY MODELS ONLY (02) - ENGINE

L73025

STARTING MOTOR

SOLENOID - cold start, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

SOLENOID - cold start

1шт.

2

R30786

GASKET

- solenoid

1шт.

3

D77648

BAIL

BRACKET - cold starting fluid can

1шт.

4

A44809

FITTING

ELBOW - solenoid

1шт.

L72776

SWITCH

- push button, cold start, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - push button switch

1шт.

6

D73741

NUT

- hex, special

1шт.

7

H275784

JAM NUT

- lock, special

1шт.

8

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

- slotted round head, No. 10 - 32 NF x 1/4"

2шт.

9

L73023

ELECTRICAL WIRE

WIRE - solenoid

1шт.

10

R30812

LINK

EXTENSION - bracket

2шт.

11

B17072

START SPRAY FLUID

FLUID - starting, ether

1шт.

12

L73024

NOZZLE CAP

NOZZLE - atomizer

1шт.

13

L59682

TERMINAL CONNECTOR

TERMINAL - switch

2шт.

14

D35090

TUBE

- cold start

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

19

L17193

ELECTRICAL WIRE

WIRE - jumper

1шт.

20

L103810

BRACKET - solenoid mounting

1шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

22

92-8

LOCK WASHER,1/2"

1шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.
