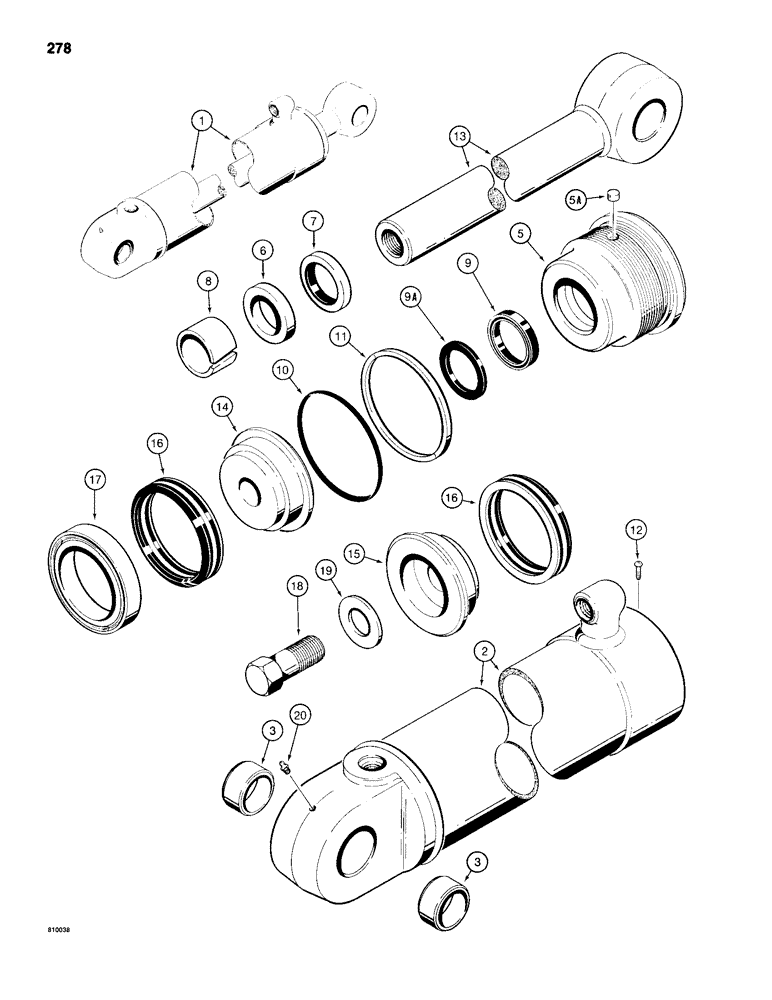

Запчасти Case 680H (278) - G102276 BACKHOE STABILIZER CYLINDER (08) - HYDRAULICS

1

G102276

CYLINDER

ASSEMBLY - stabilizer, 4-1/2" (114 mm) ID x 22-3/8" (568 mm) stroke, Includes: Ref. 2 - 20

2шт.

2

G102277

TUBE,31.79" L

- cylinder, Includes: Ref. 3

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube

2шт.

4

RESERVED

1шт.

G104316

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

G34321

RING

RETAINING RING - gland assembly

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G105525

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N G105525

1шт.

9

D36971

RING

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105525

1шт.

9a

G102647

SEAL

- piston rod, narrow, used in addition to Ref. 9

1шт.

in some glands

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105525

1шт.

11

G32284

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105525

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", if used

1шт.

13

G102280

ROD

- piston, 2" (51 mm) OD

1шт.

14

G33634

PISTON

- split, rod half

1шт.

15

D46931

PISTON

- split, bolt half

1шт.

16

D47205

PACKING

- piston, V-type

2шт.

Part of Seal Kit P/N G105525

1шт.

17

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

18

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

- hex head, 1-1/2" - NF x 2-1/2", grade 8

1шт.

19

G32351

WASHER

- special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G105525

KIT

SEAL KIT - cylinder repair, Includes: Ref. 7-9, 10, 11 and 16

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.
