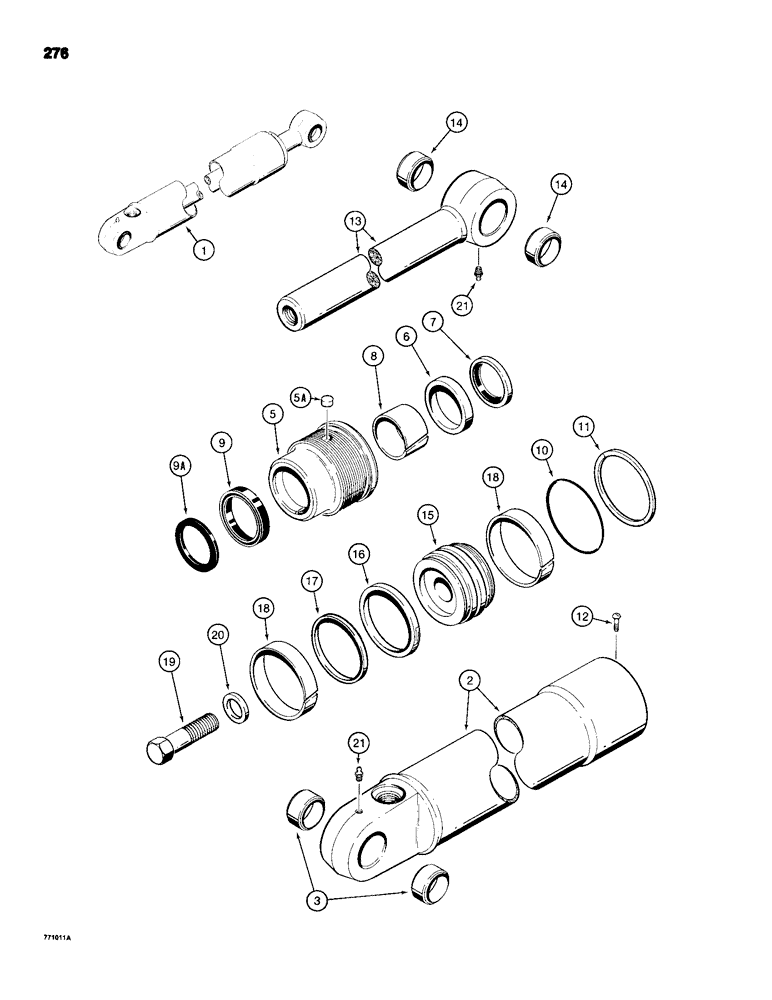

Запчасти Case 680H (276) - G101226 AND G101227 LOADER CLAM CYLINDER (08) - HYDRAULICS

1

G101226

CYLINDER ASSY.

CYLINDER - clam, right-hand, 3" (76 mm) ID x 10-1/2" (266 mm) stroke, Includes: Ref. 2 - 21

1шт.

1

G101227

CYLINDER ASSY.

CYLINDER - clam, left-hand, 3" (76 mm) ID x 10-1/2" (266 mm) stroke, Includes: Ref. 2 - 21

1шт.

2

D46911

CYLINDER

TUBE ASSEMBLY - right-hand cylinder, Includes: Ref. 3

1шт.

2

D46910

TUBE

ASSEMBLY - left-hand cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

RESERVED

1шт.

G104222

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINING RING - gland assembly

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G105548

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of Seal Kit P/N G105548

1шт.

9

D36969

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105548

1шт.

9a

G104224

SEAL

- piston rod, narrow, used in addition to Ref. 9 in some glands

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105548

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland

1шт.

Part of Seal Kit P/N G105548

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", if used

1шт.

13

G33467

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) OD, Includes: Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

15

G100442

PISTON

- cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit P/N G105548

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

2шт.

Part of Seal Kit P/N G105548

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of Seal Kit P/N G105548

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105548

KIT

- seal, Includes: Ref. 7-9, 10, 11 and 16-18

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
