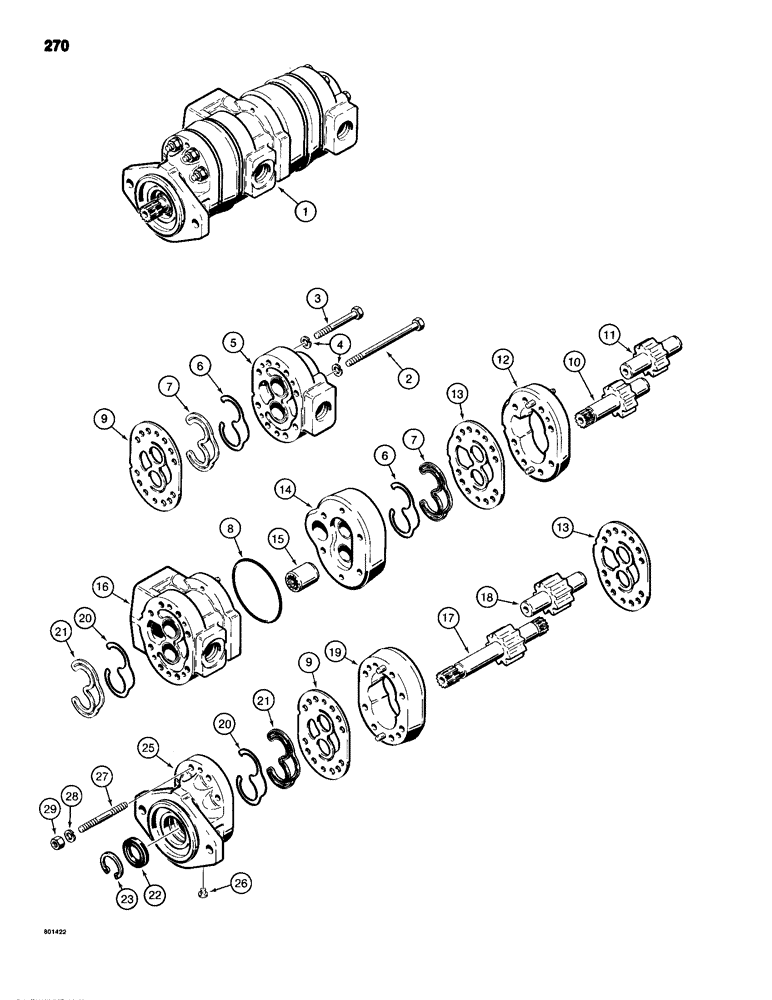

Запчасти Case 680H (270) - D127913 HYDRAULIC PUMP (08) - HYDRAULICS

1

D127913

PUMP

HYDRAULIC PUMP ASSEMBLY - Sperry Vickers No. G2020-2E15V11T-99A30L-S22, Includes: Ref. 2 - 29

1шт.

2

13-792

BOLT

- hex head, 7/16" - 14 NC x 5-3/4"

4шт.

3

13-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

4шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

5

N60304

COVER

- port end

1шт.

N7127

SEAL KIT

- seal, closed end, Includes: Ref. 6 - 8

1шт.

6

N60243

SEAL

- special

2шт.

7

N60305

RETAINER

- seal

2шт.

8

N60307

O-RING

-, Serial Range: adapter-housing

1шт.

9

N60292

PLATE

- wear, port end

2шт.

10

N9014

DRIVE GEAR - pump, closed end

1шт.

11

N9015

GEAR WHEEL

DRIVEN GEAR - pump, closed end

1шт.

12

N9028

HOUSING

- center

1шт.

13

N60296

PLATE

- wear, rear

2шт.

14

N60299

TUBE NUT

ADAPTER - housing

1шт.

15

N60298

COUPLING

- adapter housing

1шт.

16

N60297

VALVE BLOCK

HOUSING - section port

1шт.

17

N9017

GEAR

DRIVE GEAR - pump, shaft end

1шт.

18

N60295

GEAR WHEEL

DRIVEN GEAR - pump, shaft end

1шт.

19

N9029

HOUSING

- center

1шт.

N7126

SEAL KIT

- seal, drive shaft end, Includes: Ref. 20 - 23

1шт.

20

N60243

SEAL

- special

2шт.

21

N60305

RETAINER

- seal

2шт.

22

N60306

SEAL

SEAL - shaft

1шт.

23

A49490

CIRCLIP

RETAINING RING - seal

1шт.

24

RESERVED

1шт.

25

N9018

COVER

- drive shaft end

1шт.

26

N9019

PLUG

- cover

1шт.

27

N60251

STUD

- cover

8шт.

28

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

29

129-104

NUT,7/16"-14, G5

8шт.

D127913 hydraulic pump assy - Around June of 1992 the supplier part nbr for this pump was changed. It was originally supplied by Vickers but that portion of business was acquired by J S Barnes. The internal construction of the pump was changed but the Case part nbr did not change as there was no exterior physical change to the pump and form, fit and function were not affected.

1шт.

Service breakdowns are revised to reflect the internal changes (refer to tech analyst catalog for ECN D923010 for parts changes). Earlier pumps had an encapsulate wear plate which served as a gasket to seal between the sections of the pump. Pumps with the new supplier part nbr use different wear plates and a sealing ring between sections. The sections have a machined groove to accept this seal.

1шт.
