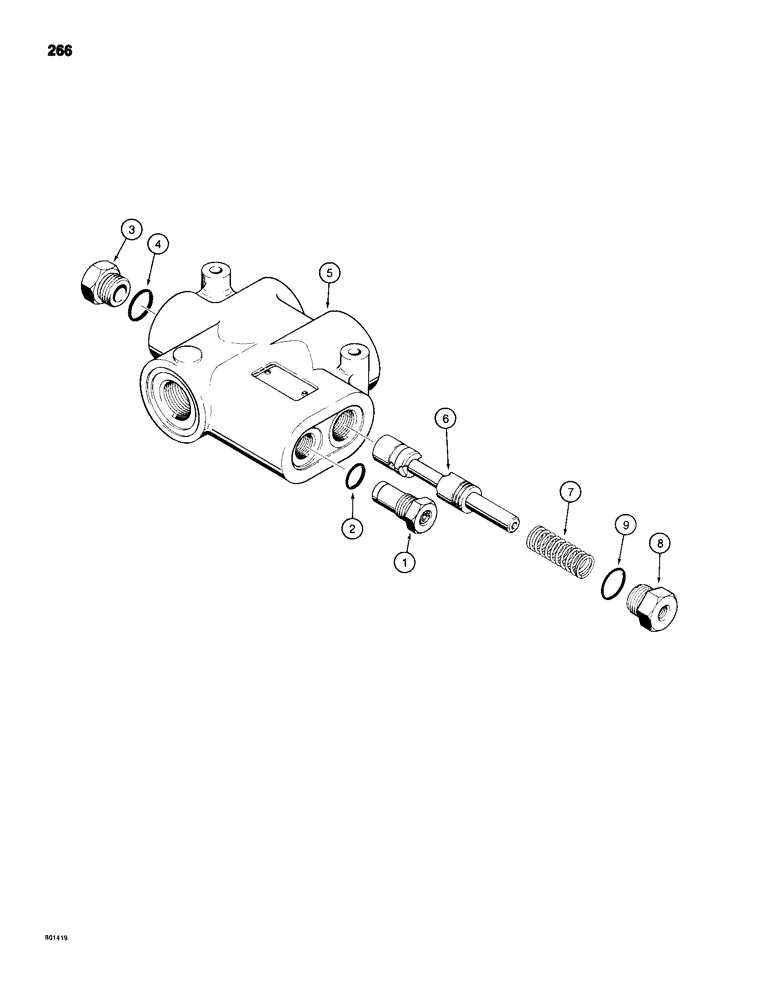

Запчасти Case 680H (266) - L102602 FLOW CONTROL VALVE (08) - HYDRAULICS

L102602

LOCK VALVE

FLOW CONTROL VALVE - complete, Includes: Ref. 1 - 9

1шт.

N7163

CARTRIDGE

RELIEF VALVE - complete, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief valve

1шт.

3

S114011

PLUG

- flow control valve

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - flow control valve

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - flow control valve

1шт.

7

S114008

SPRING

CENTERING SPRING - spool

1шт.

8

S114009

PLUG

- flow control valve

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- relief valve

1шт.
