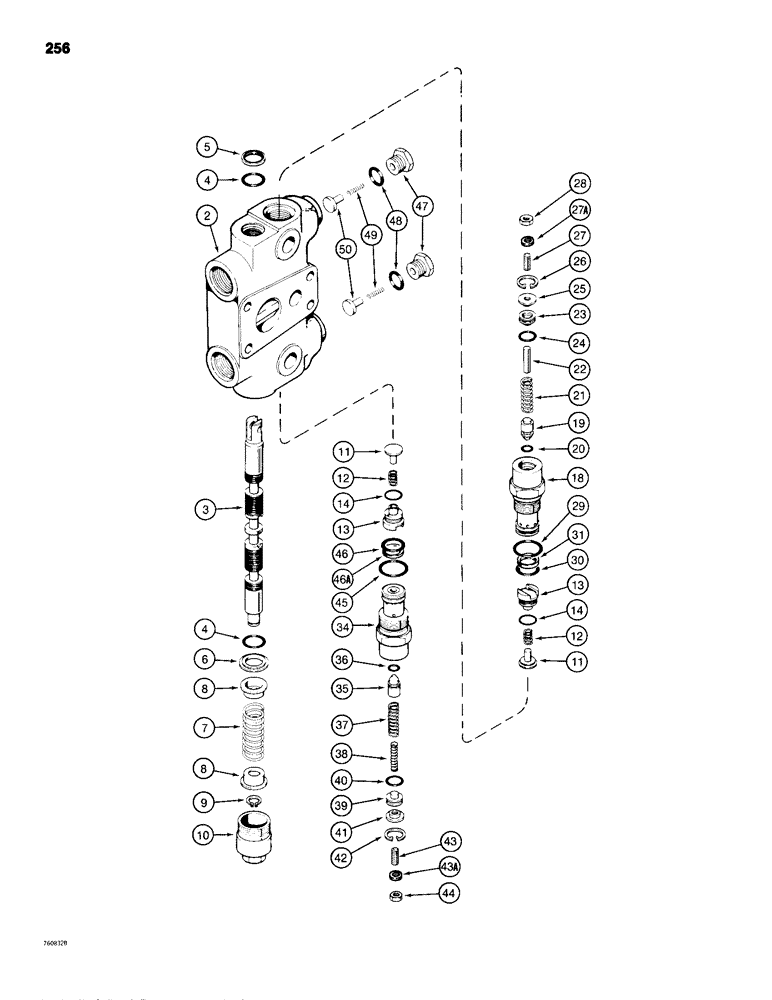

Запчасти Case 680H (256) - BACKHOE CONTROL VALVE, BOOM SECTION (08) - HYDRAULICS

G104041

VALVE

SECTION ASSEMBLY - boom

1шт.

1

RESERVED, Includes: Ref. 2 - 50

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - boom section

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - boom section

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

6

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

7

G34463

SPRING

CENTERING SPRING - spool

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

10

G33080

CAP

- centering spring

1шт.

11

G33081

VALVE POPPET

POPPET - load check valve

2шт.

12

G33573

SPRING

- load check valve

2шт.

13

G33084

PLUG

- load check valve

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

15

RESERVED

1шт.

16

RESERVED

1шт.

17

RESERVED

1шт.

G34052

KIT

CIRCUIT RELIEF VALVE ASSEMBLY - upper, order G34862 for service, Includes: Ref. 18 - 31

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

20

G102844

O-RING

- poppet

1шт.

21

G105693

VALVE SPRING

SPRING - circuit relief valve

1шт.

22

G33241

PIN

- stop, circuit relief valve

1шт.

23

G33091

PISTON

- circuit relief valve

1шт.

24

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

25

G33092

RETAINER

- circuit relief valve

1шт.

26

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , circuit relief valve 0.75", Int, #75

1шт.

27

G102782

SET SCREW,1/4" - 20 x 1"

ADJUSTING SCREW - set, 1/4" - 20 NC x 3/4"

1шт.

27a

G102781

WASHER

- special

2шт.

28

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large

1шт.

30

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- small

1шт.

31

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - small O-ring, if used

1шт.

32

RESERVED

1шт.

33

RESERVED

1шт.

G34595

LOCK VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - lower, Includes: Refs. 34-46A order G34862 for service, Includes: Ref. 34 - 36

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

36

G102844

O-RING

- poppet

1шт.

G34862

VALVE

KIT - service, for G34052 or G34595, Includes: Refs. 18 - 31 or 34-46A

2шт.

REF

INSTRUCTION

SECTION ASSEMBLY - boom, Includes: Ref. 37 - 46A

1шт.

G34595

LOCK VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - lower, Includes: Refs. 34-46A order G34862 for service, Includes: Ref. 37 - 46A

1шт.

REF

INSTRUCTION

SECTION ASSEMBLY - boom

1шт.

37

G33090

SPRING

- circuit relief valve, outer

1шт.

38

G34659

SPRING

- circuit relief valve, inner

1шт.

39

G33091

PISTON

- circuit relief valve

1шт.

40

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

41

G33092

RETAINER

- circuit relief valve

1шт.

42

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , circuit relief valve 0.75", Int, #75

1шт.

43

G102782

SET SCREW,1/4" - 20 x 1"

ADJUSTING SCREW - set, 1/4" - 20 NC x 3/4"

1шт.

43a

G102781

WASHER

- special

2шт.

44

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

45

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large

1шт.

46

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- small

1шт.

46a

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - small O-ring, if used

1шт.

47

G34937

PLUG

- anticavitation

2шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

2шт.

49

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- poppet

2шт.

50

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - anticavitation

2шт.

G34862

VALVE

KIT - service, for G34052 or G34595, Includes: Refs. 18-31 or 34-46A

2шт.
