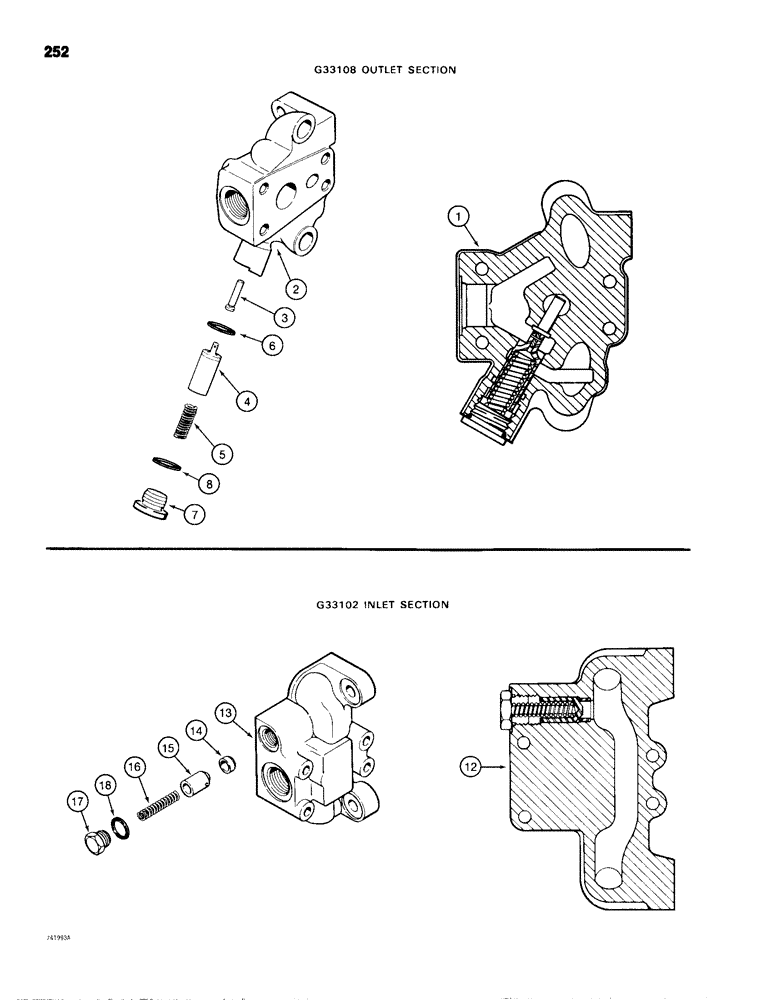

Запчасти Case 680H (252) - BACKHOE CONTROL VALVE, OUTLET SECTION, INLET SECTION (08) - HYDRAULICS

1

G33108

MANIFOLD

SECTION ASSEMBLY - outlet, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

MANIFOLD - section body

1шт.

3

G33110

PISTON

- regeneration sensing

1шт.

4

G34586

SPOOL,22mm OD x 59.87mm L

- regeneration

1шт.

5

G33112

SPRING

- regeneration spool, free length

1шт.

6

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- manifold

1шт.

7

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

regeneration spool Hex Soc, 1 3/16"-12 ORB

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug

1шт.

12

G33102

MANIFOLD

SECTION ASSEMBLY - inlet, Includes: Ref. 13 - 18

1шт.

13

NSS

NOT SOLD SEPARAT

MANIFOLD - section body

1шт.

14

G33104

SEAT

- check valve poppet

1шт.

15

G33105

VALVE POPPET

POPPET - check valve

1шт.

16

G33106

SPRING

- check valve

1шт.

17

A39586

PLUG

- check valve

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.
