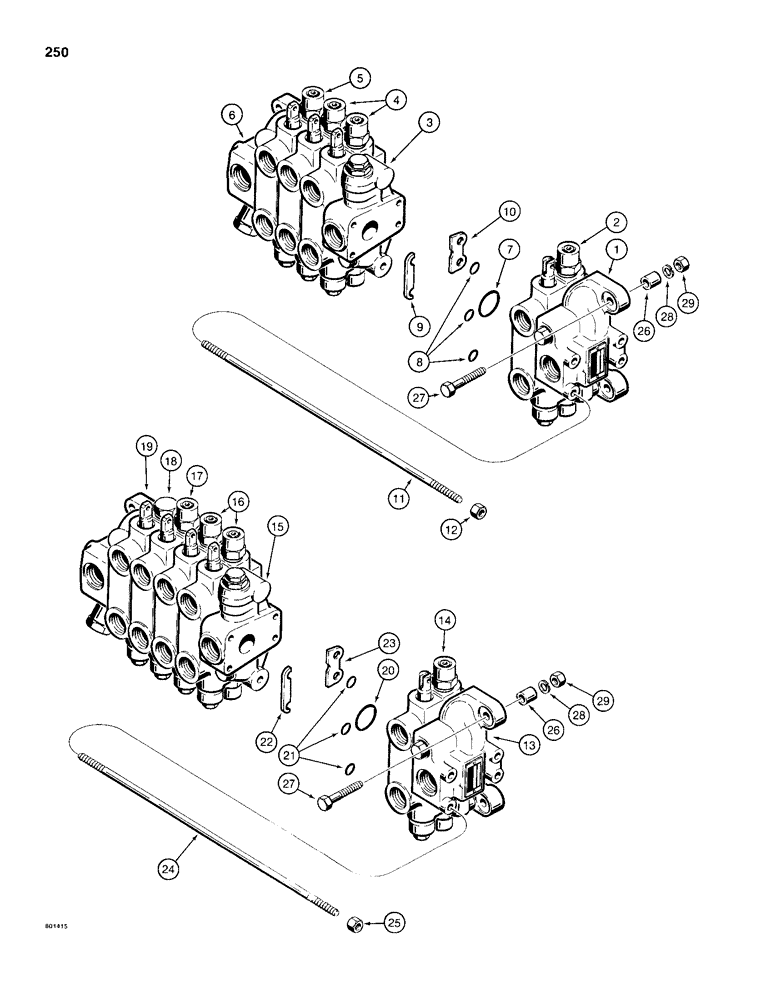

Запчасти Case 680H (250) - G104040 BACKHOE CONTROL VALVE, WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

G104040

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, 4 section valve, Includes: Ref. 1 - 12

1шт.

1

G33102

MANIFOLD

INLET SECTION - control valve, parts list Figure 252

1шт.

2

G105627

VALVE

SWING SECTION - control valve, parts list Figure 262

1шт.

3

G34895

X

MID-INLET SECTION - control valve, parts list Figure 260

1шт.

4

G104042

VALVE

BUCKET AND DIPPER SECTIONS - control valve, parts list Figure 254

2шт.

5

G104041

VALVE

BOOM SECTION - control valve, parts list Figure 256

1шт.

6

G33108

MANIFOLD

OUTLET SECTION - control valve, parts list Figure 252

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

6шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports, small

18шт.

9

G33964

SHIM,.002" Thk

Section, Top (.05 mm) .002" Thk

6шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Bottom (.002") 0.051mm Thk

6шт.

11

G34675

TIE-ROD

STUD - tie, valve sections

4шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

G104147

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, 5 section valve, Includes: Ref. 13 - 25

1шт.

13

G33102

MANIFOLD

INLET SECTION - control valve, parts list Figure 252

1шт.

14

G105627

VALVE

SWING SECTION - control valve, parts list Figure 262

1шт.

15

G34895

X

MID-INLET SECTION - control valve, parts list Figure 260

1шт.

16

G104042

VALVE

BUCKET AND DIPPER SECTION - control valve, parts list Figure 254

2шт.

17

G104041

VALVE

BOOM SECTION - control valve, parts list Figure 256

1шт.

18

G104146

VALVE

EXTENDABLE DIPPER SECTION - control valve, parts list Figure 264

1шт.

19

G33108

MANIFOLD

OUTLET SECTION - control valve, parts list Figure 252

1шт.

20

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

7шт.

21

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports, small

21шт.

22

G33964

SHIM,.002" Thk

Section, Top (.05 mm) .002" Thk

7шт.

23

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Bottom (.002") 0.051mm Thk

7шт.

24

G33124

BOLT

STUD - tie, valve sections

4шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

26

L55306

SPACER

- valve mounting

3шт.

27

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3"

3шт.

28

92-8

LOCK WASHER,1/2"

3шт.

29

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.
