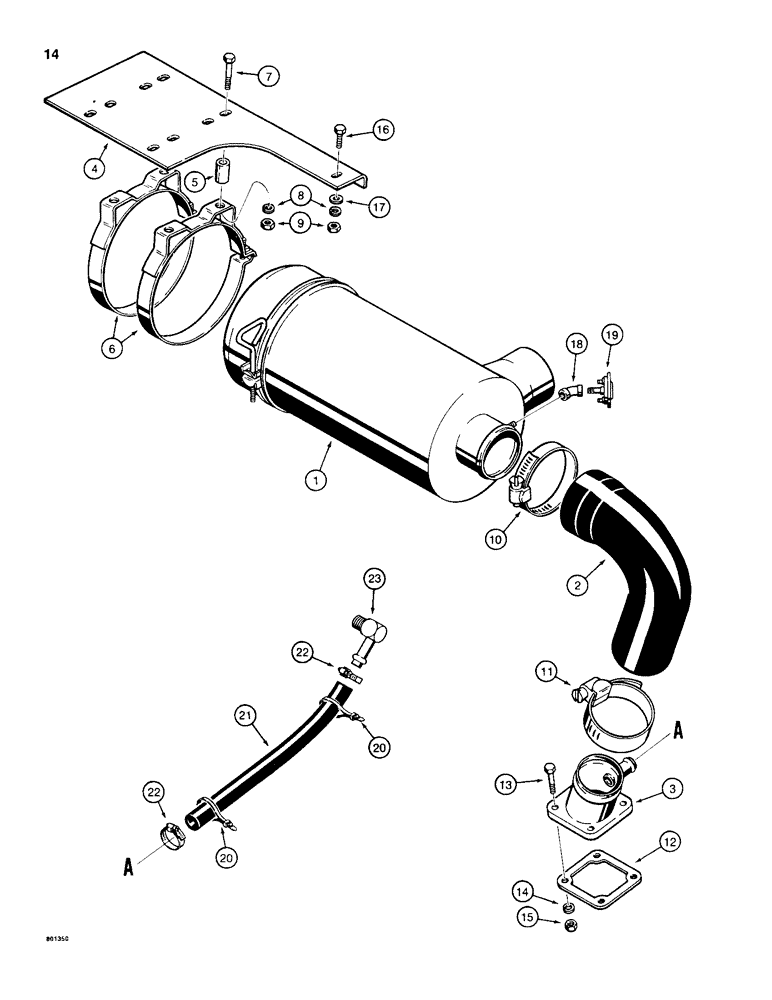

Запчасти Case 680H (014) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

D55864

CLEANER

AIR CLEANER - engine, parts list Figure 16

1шт.

2

L101887

INTAKE AIR HOSE,3.00" ID, 3.50" ID, SAE J200h

- Air Cleaner to Intake Manifold 3.00" ID, 3.50" ID, SAE J200h

1шт.

3

L102727

ADAPTER

- air cleaner

1шт.

4

L105700

BRACKET - air cleaner mounting

1шт.

5

A27328

SPACER

- air cleaner bracket

4шт.

6

70973

BRACKET

CLAMP - air cleaner mounting

2шт.

7

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

8

92-5

LOCK WASHER,5/16"

5шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

5шт.

10

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, at air cleaner

1шт.

11

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - hose, at intake manifold

1шт.

12

A58910

GASKET

- air cleaner, Serial Range: adapter-manifold

1шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

18

221-365

ELBOW,45 Degree, 1/8" NPT

- air cleaner to restriction indicator

1шт.

19

L103131

INDICATOR

SWITCH - air cleaner restriction indicator

1шт.

L103131 air cleaner restriction indicator switch - This switch activates the D71346 warning lamp on dashboard when air cleaner is dirty.

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

21

L74393

HOSE,0.75" ID x 15.00", SAE 20R1

Compressor Suction 0.75" ID x 15.00", SAE 20R1

1шт.

22

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

compressor suction #16, 0.81/1.50 Type F Worm

2шт.

23

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

- compressor to hose

1шт.
