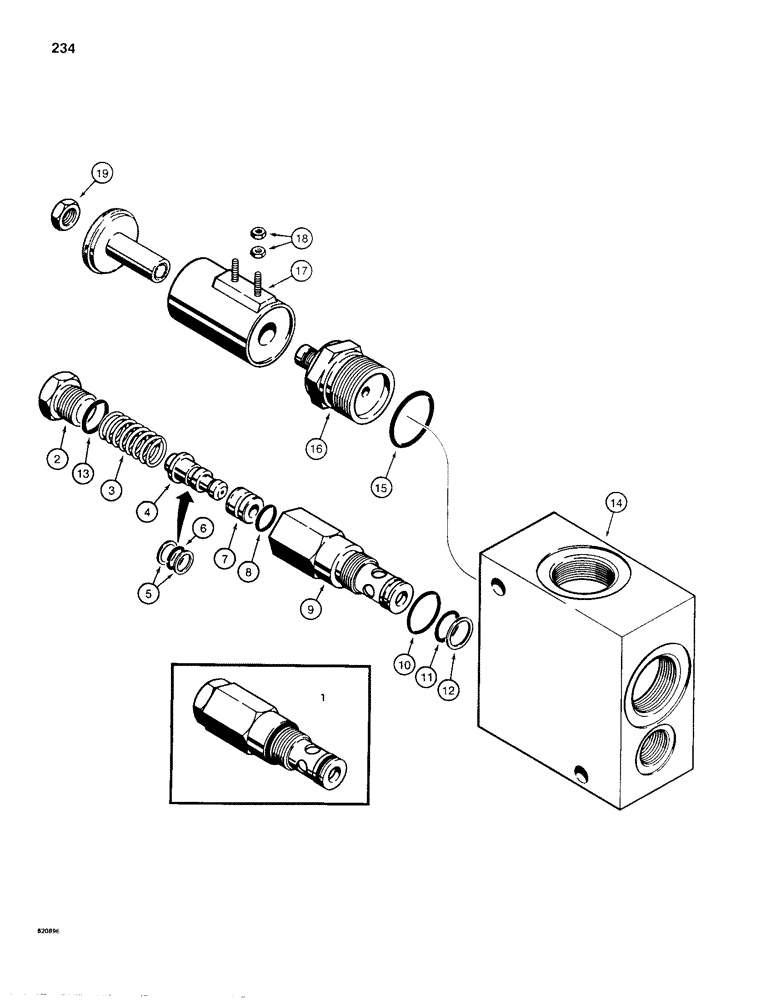

Запчасти Case 680H (234) - L104686 SOLENOID RELIEF (08) - HYDRAULICS

L104686

LOCK VALVE

SOLENOID ASSEMBLY - relief, Includes: Ref. 1 - 19

1шт.

1

N7468

SPOOL

RELIEF - solenoid, Includes: Ref. 2 - 13

1шт.

N7468 solenoid relief - This is fixed at 3600 psi.

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - end, relief

1шт.

3

N7470

VALVE SPRING

SPRING - relief

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - solenoid

1шт.

5

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

BACKUP RING - spool

2шт.

6

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- seal

1шт.

7

N7471

SEAT

- spool

1шт.

8

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- seat

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - solenoid

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- large

1шт.

11

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

12

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - small o-ring

1шт.

13

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- end plug

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

15

L33129

O-RING,1.109" ID x 1.387" OD x 0.139"

- solenoid body

1шт.

16

NSS

NOT SOLD SEPARAT

SOLENOID - relief

1шт.

NSS relief solenoid - The shaft end of this part is actually long enough to go all the way through Ref. 17 solenoid coil and the part shown in phantom between Ref. 17 and 19 is not there now.

1шт.

17

N7469

COIL ASSY.

COIL - solenoid

1шт.

18

129-16

NUT,#8-32

4шт.

19

131-813

NUT,3/8"-24

NUT - hex, self-locking 3/8" - 24 NF

1шт.
