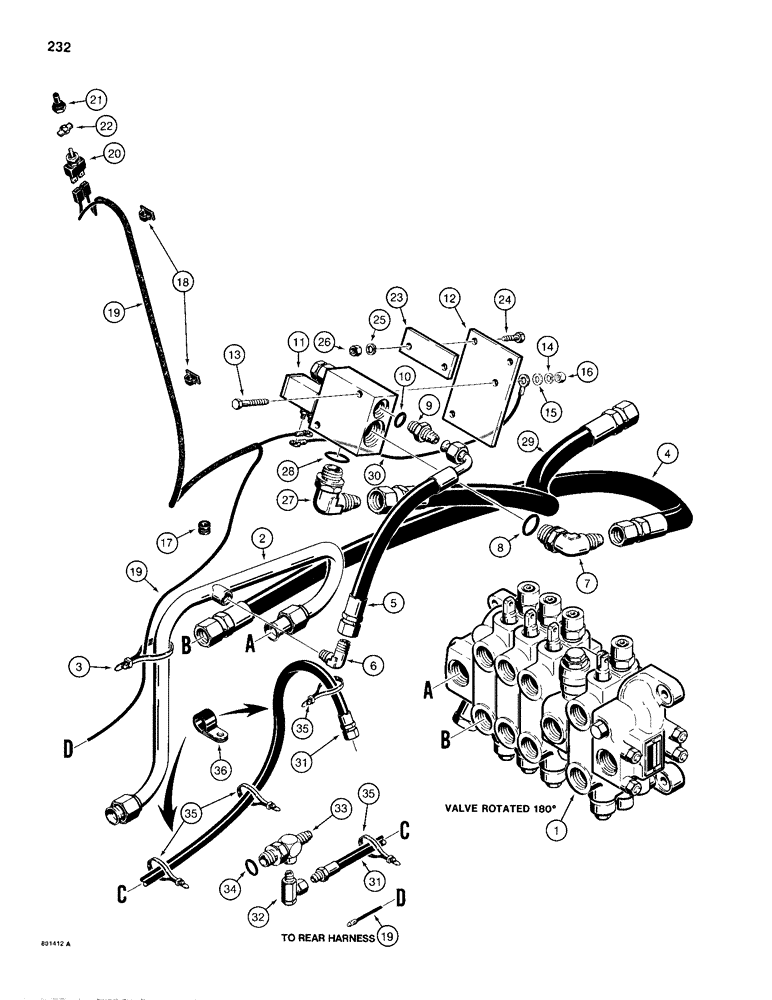

Запчасти Case 680H (232) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 250

1шт.

2

L105426

TUBE

- backhoe return

1шт.

3

R38237

STRAP

TIE STRAP - wire to backhoe return tube

1шт.

4

L105421

HOSE

- to boom lock valve, 20" (508 mm) long

1шт.

5

L105422

HOSE

- valve to return, 12" (305 mm) long

1шт.

6

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, straight, Incl. Ref 10

1шт.

11

L104686

LOCK VALVE

BOOM LOCK VALVE - solenoid, parts list Figure 234

1шт.

12

L108452

BRACKET

- valve mounting

1шт.

13

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - hex head, 5/16" - 18 NC x 3"

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

17

L13765

GROMMET

- harness

1шт.

18

L100659

CLIP

- harness

2шт.

19

L110680

HARNESS

- boom lock

1шт.

20

D67251

SWITCH

TOGGLE SWITCH - boom lock

1шт.

21

L101998

BOOT

- toggle switch

1шт.

22

L105735

PLATE ASSY.

PLATE - trim

1шт.

23

L106680

SUPPORT ASSY.

SUPPORT - brace, valve mounting

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

27

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

29

L105421

HOSE

- boom lock valve, 20" (508 mm) long

1шт.

30

L16409

ELECTRICAL WIRE

WIRE - ground

1шт.

31

L107763

HOSE,0.25" ID x 100.00"

- flow control valve to backhoe control valve, boom section, 100" (2500 mm) long

1шт.

32

L59038

LOCK VALVE

CHECK VALVE - flow control valve

1шт.

33

L106770

TEE

- special, check valve to flow control valve, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

8шт.

36

T50103

CLAMP

- hose, use existing hardware

2шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector

1шт.
