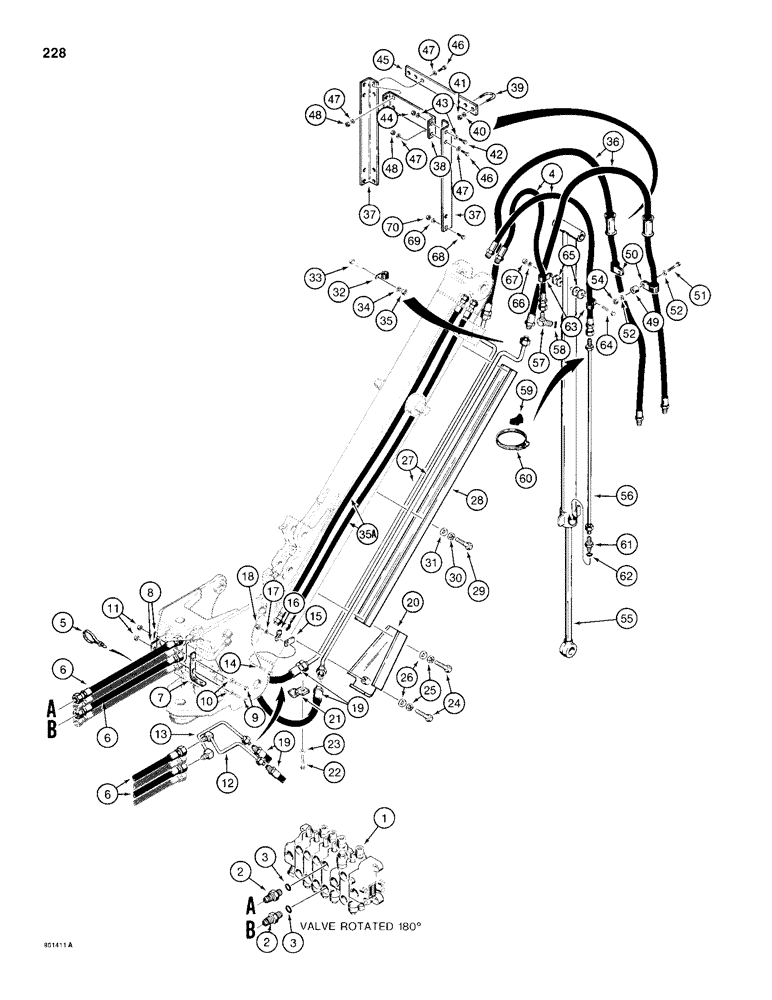

Запчасти Case 680H (228) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 250

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

L100365

HOSE,0.50" ID x 28.00"

to Extension Cylinder 0.50" ID x 28.00"

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

L55955

HOSE ASSY.

HOSE - to bucket cylinder, 26-1/2" (673 mm) long

2шт.

7

L100183

BRACKET

- hose support

1шт.

8

L102643

CLAMP

- hose

2шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

2шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

11

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

12

L78383

TUBE,0.75" OD

- to bucket cylinder, right-hand

1шт.

13

L78385

TUBE,0.75" OD

- to bucket cylinder, left-hand

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

15

L78192

SPACER

- tube

2шт.

16

L58147

CLAMP

- tube

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

19

L61184

HOSE

- to bucket cylinder, 27-1/2" (699 mm) long

2шт.

20

L78387

BLADE

GUARD - bucket tubes, lower

1шт.

21

L58147

CLAMP

- hose

2шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

164-577

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 2 1/2"

SCREW - hex socket head, 1/2" - 13 NC x 2-1/2"

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

95-8

WASHER,1/2"

flat 1/2"

2шт.

27

L100840

TUBE,0.75" OD

- to bucket cylinder

2шт.

28

L79141

SHIELD

GUARD - bucket tubes

1шт.

29

164-573

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 1 1/2"

SCREW - hex socket head, 1/2" - 13 NC x 1/2"

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

95-8

WASHER,1/2"

flat 1/2"

2шт.

32

49799

GASKET

CLAMP - bucket tube upper

2шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

35a

720-4300

HOSE ASSY.

HOSE - to bucket clinder, center, 110" (2794 mm) long

2шт.

720-4300 CONNECTS TO REF 4 ON FIGURE 226. 35A IS DRAWN WRONG ON THIS PAGE, ACTUALLY HAS MALE FITTINGS ON BOTTOM.

1шт.

36

L109817

HOSE,0.75" ID x 98.00", SAE 100R12

- to bucket cylinders, 98" (2489 mm) long

2шт.

37

L78977

ANGLE

- hose support

2шт.

38

L104252

BRACKET

- hose support

1шт.

39

L104253

U-BOLT

- hose

2шт.

40

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

41

232-4115

LOCK NUT,5/16"-18, GC

NUT - hex,self-locking, 5/16" - 18 NC

4шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

43

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

44

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

45

L104254

BAR

- hose support

1шт.

46

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

47

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

48

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

49

L14794

SPACER

-, Serial Range: hose-support

2шт.

50

D40471

CLAMP

- bucket cylinder hose

2шт.

51

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

52

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

53

RESERVED

1шт.

54

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

55

G101259

CYLINDER BLOCK

CYLINDER - extension, parts list Figure 291

1шт.

56

L54652

TUBE

- extension cylinder

1шт.

57

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male, Includes: Ref. 58

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

59

D38648

BLOCK

SPACER - tube clamp

1шт.

60

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - tube to extension cylinder

1шт.

61

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 62 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

63

R21385

CLAMP

- hose to extension cylinder

2шт.

64

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex head, 3/8" - 16 NC x 3-1/2"

1шт.

65

F12215

WASHER

- special

4шт.

66

92-6

LOCK WASHER,3/8"

1шт.

67

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

68

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

69

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

70

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking 3/8" - 16 NC

4шт.
