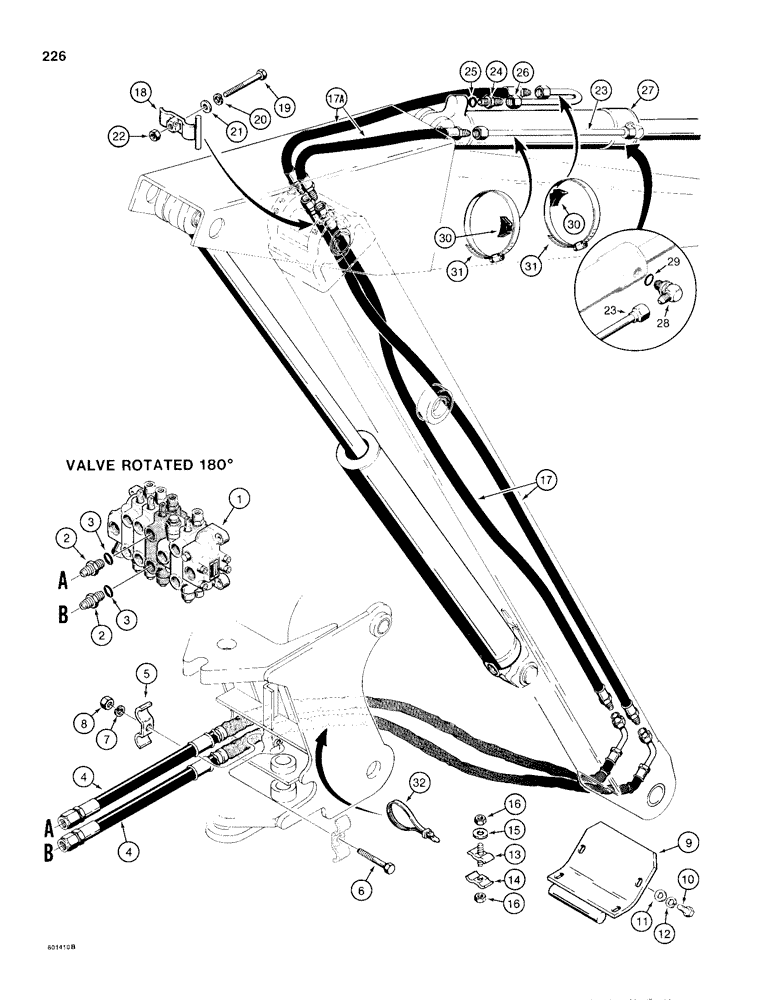

Запчасти Case 680H (226) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 250

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

4

L111907

HOSE ASSY.,31.5mm ID x 1290.3mm L, SAE 100R3

HOSE - control valve to bucket cylinder, 51" (1295 mm) long

2шт.

5

L72801

HOSE CLAMP

CLAMP - hose

1шт.

6

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

9

L100291

GUARD ASSY.

GUARD - hose

1шт.

10

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

11

95-8

WASHER,1/2"

flat 1/2"

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

L100275

CLAMP

- stud, lower boom

1шт.

14

L100272

CLAMP

- lower boom

1шт.

15

D41740

WASHER

- special

1шт.

16

131-1110

LOCK NUT

JAM NUT - hex, 3/8" - 16 NC

2шт.

17

720-4300

HOSE ASSY.

HOSE - bucket cylinder, center, 110" (2794 mm) long

2шт.

17a

L101167

TUBE

HOSE - bucket cylinder, 49" (1245 mm) long

2шт.

18

L100383

CLAMP

AND NUT ASSEMBLY -, Serial Range: hose-boom

1шт.

19

113-256

BOLT

BOLT - hex head, 3/8" - 16 NC x 5-1/2"

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

22

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

23

L77131

TUBE,0.75" OD x 19.92, 1.75" L

- bucket cylinder, rod end

1шт.

24

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

26

L101013

TUBE,0.75" OD x 15.2, 3" L

- bucket cylinder, closed end

1шт.

27

G103856

CYLINDER BLOCK

CYLINDER - bucket, parts list Figure 288

1шт.

28

L114091

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 29

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

30

D38648

BLOCK

SPACER - rubber, tube clamp

2шт.

31

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to bucket cylinder

2шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
