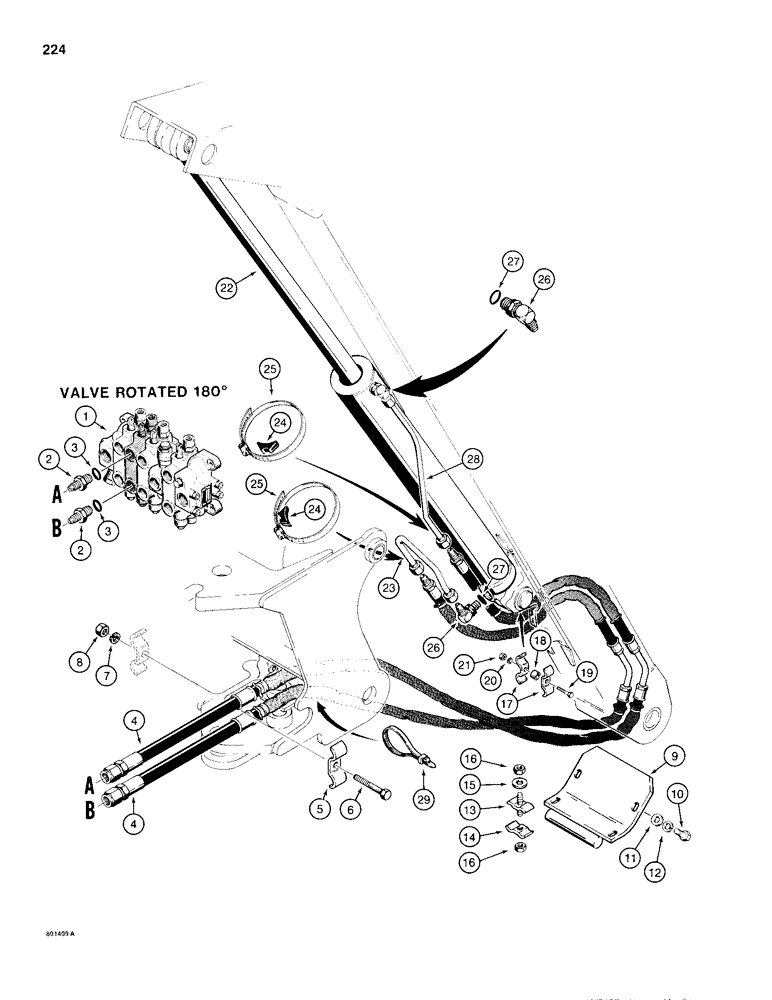

Запчасти Case 680H (224) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 250

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

4

L111908

HOSE,15.75 mm ID x 2921.00 mm

Control Valve to Dipper Cylinder 15.75 mm ID x 2921.00 mm

2шт.

5

L72801

HOSE CLAMP

CLAMP - hose

1шт.

6

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

9

L100291

GUARD ASSY.

GUARD - hose

1шт.

10

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

11

95-8

WASHER,1/2"

flat 1/2"

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

L100275

CLAMP

- stud, lower boom

1шт.

14

L100272

CLAMP

- lower boom

1шт.

15

D41740

WASHER

- special

1шт.

16

131-1110

LOCK NUT

JAM NUT - hex, 3/8" - 16 NC

2шт.

17

L78057

CLAMP

- dipper, Serial Range: hose-boom

2шт.

18

D36040

BUSHING

SPACER - clamp

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

22

G101348

CYLINDER

- dipper, parts list Figure 286

1шт.

23

L54749

TUBE,15, 2.4" L

- dipper cylinder, closed end

1шт.

24

D38648

BLOCK

SPACER - rubber, tube clamp

2шт.

25

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to dipper cylinder

2шт.

26

L114091

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 27

2шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

28

L58145

TUBE,0.75" OD x 34.3, 3" L

- dipper cylinder, rod end

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

Cordura nylon sleeving is available in 25' rolls (part nbr L79101) to protect hoses in areas of high wear. It will fit over any hose with a fitting diameter of 1.5" or less.

1шт.
