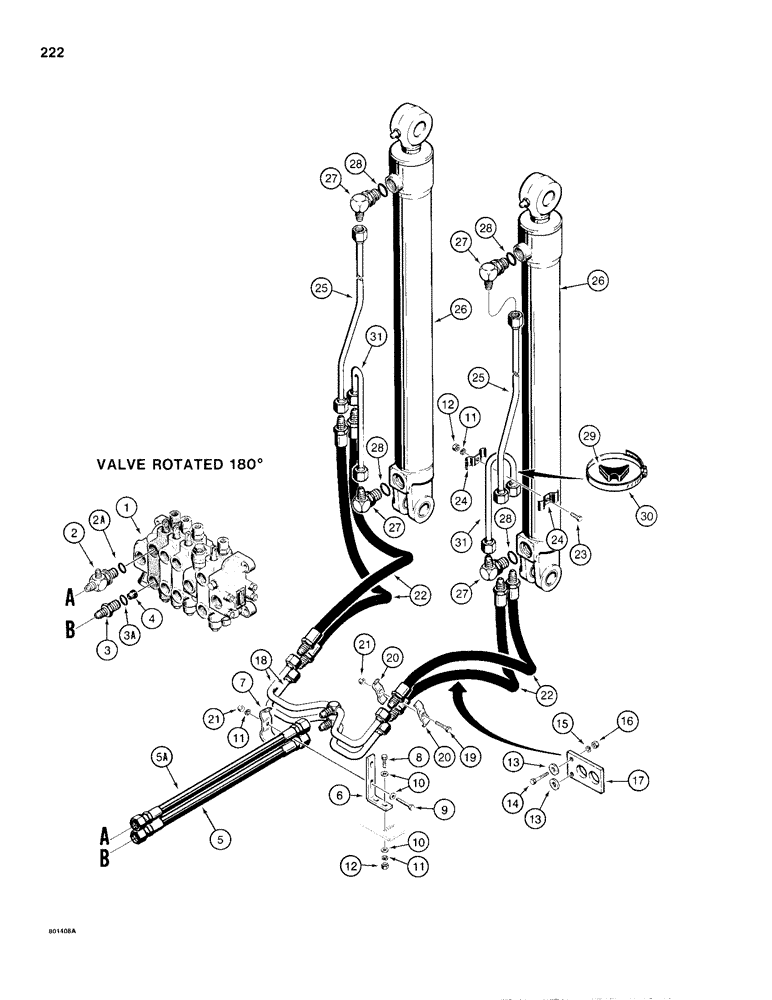

Запчасти Case 680H (222) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 250

1шт.

2

L106794

TEE

- special, backhoe control valve top, Includes: Ref. 2A

1шт.

2a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, backhoe control valve bottom, Incl. Ref. 3A

1шт.

3a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

4

L108371

ADAPTER

RESTRICTOR - boom drop

1шт.

5

L55955

HOSE ASSY.

HOSE - control valve to boom manifold, 26-1/2" (673 mm) long

1шт.

5a

L54137

HOSE ASSY.

HOSE - control valve to boom manifold upper, 25" (635 mm) long

1шт.

6

L100183

BRACKET

- hose support

1шт.

7

L78057

CLAMP

- hose

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4"

1шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

5шт.

11

92-6

LOCK WASHER,3/8"

5шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

5шт.

13

D41740

WASHER

- special

4шт.

14

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2"

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

17

L100186

GUIDE

- hose

2шт.

18

L100335

MANIFOLD

- boom cylinder

2шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

20

L78057

CLAMP

- tube

4шт.

21

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

22

T41362

HYDRAULIC HOSE,0.63" ID x 27.50", SAE 100R2

- Manifold to boom cylinder 0.63" ID x 27.50", SAE 100R2

4шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

24

R15257

CLAMP

- tube

4шт.

25

L58145

TUBE,0.75" OD x 34.3, 3" L

- boom cylinder, rod end

2шт.

26

G101256

CYLINDER ASSY.

CYLINDER - boom, parts list Figure 284

2шт.

27

L114091

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 28

4шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

29

D38648

BLOCK

SPACER - rubber, tube clamp

2шт.

30

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tubes to boom cylinder

2шт.

31

L101013

TUBE,0.75" OD x 15.2, 3" L

- boom cylinder, closed end

2шт.
