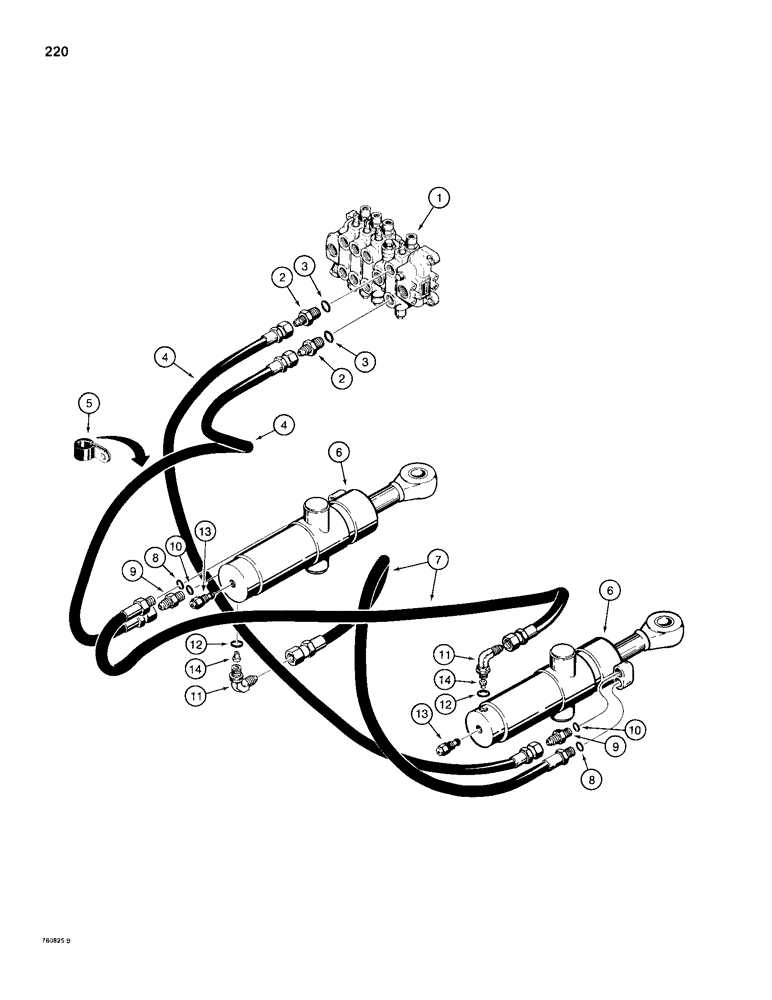

Запчасти Case 680H (220) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 250

1шт.

2

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

4

R28970

HOSE,12.70 mm ID x 1473.00 mm, SAE 100R2

- Backhoe control valve to rod end of swing cylinder 12.70 mm ID x 1473.00 mm, SAE 100R2

2шт.

5

51200320

CLAMP

- swing cylinder hoses, use existing hardware

2шт.

6

G104134

CYLINDER BLOCK

CYLINDER - swing, parts list Figure 280

2шт.

7

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- crossover, 23-1/2" (597 mm) long, Includes: Ref. 8

2шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, Incl. Ref 10

2шт.

11

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Includes: Ref. 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

13

L78723

LOCK VALVE

RELIEF VALVE - swing cylinder, parts list Figure 282

2шт.

14

L103569

RESTRICTOR

- check, swing cylinder

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose

2шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector

1шт.
