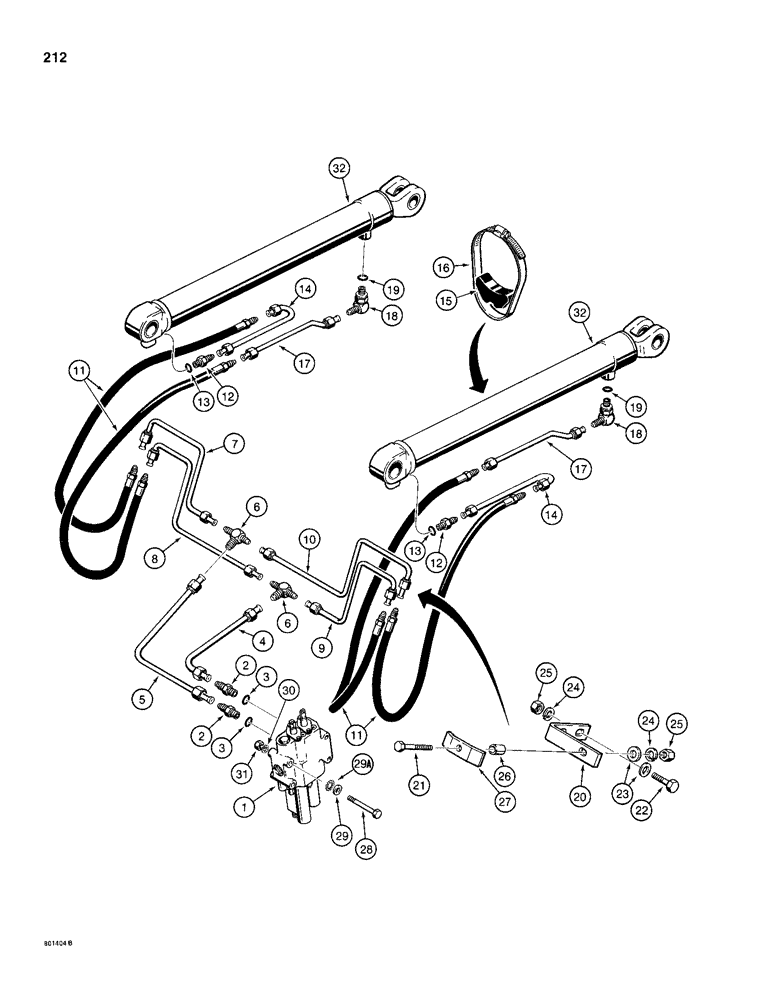

Запчасти Case 680H (212) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figures 236-246

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

4

L103163

TUBE,0.75" OD x 13.85, 4.34" L

- tee to lift spool

1шт.

5

L103157

TUBE,0.75" OD x 15.49, 13.34" L

- tee to lift spool

1шт.

6

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- loader lift tubes

2шт.

7

L103115

TUBE,0.625" OD

- tee to left-hand hose

1шт.

8

L103113

TUBE,0.625" OD

- tee to left-hand hose

1шт.

9

L103100

TUBE,0.625" OD x 9.64, 11.67" L

- tee to right-hand hose

1шт.

10

L103098

TUBE,0.625" OD x 22.23, 8.86" L

- tee to right-hand hose

1шт.

11

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - control valve to lift cylinders, 37" (940 mm) long

4шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, Includes: Ref. 13

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

14

L103144

TUBE,0.625" OD x 19, 2.5" L

- lift cylinder, closed end

2шт.

15

D38648

BLOCK

SPACER - rubber, tube and cylinder

4шт.

16

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

4шт.

17

L103146

TUBE,0.625" OD x 15.9, 1.65" L

- lift cylinder, rod end

2шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Incl. Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

20

L103212

BRACKET - tube, if used

2шт.

21

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", if used

4шт.

23

95-6

WASHER,3/8"

- flat, 3/8"

2-6шт.

24

92-6

LOCK WASHER,3/8"

2-6шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2-6шт.

26

D76209

SPACER

- tube clamp

2шт.

27

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

28

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

- hex head, 1/2" - 13 NC x 4-1/2"

3шт.

29

95-8

WASHER,1/2"

flat 1/2"

3шт.

29a

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

30

92-8

LOCK WASHER,1/2"

3шт.

31

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

32

G103457

CYLINDER BLOCK

CYLINDER - hydraulic, loader lift, parts list Figure 272

2шт.
