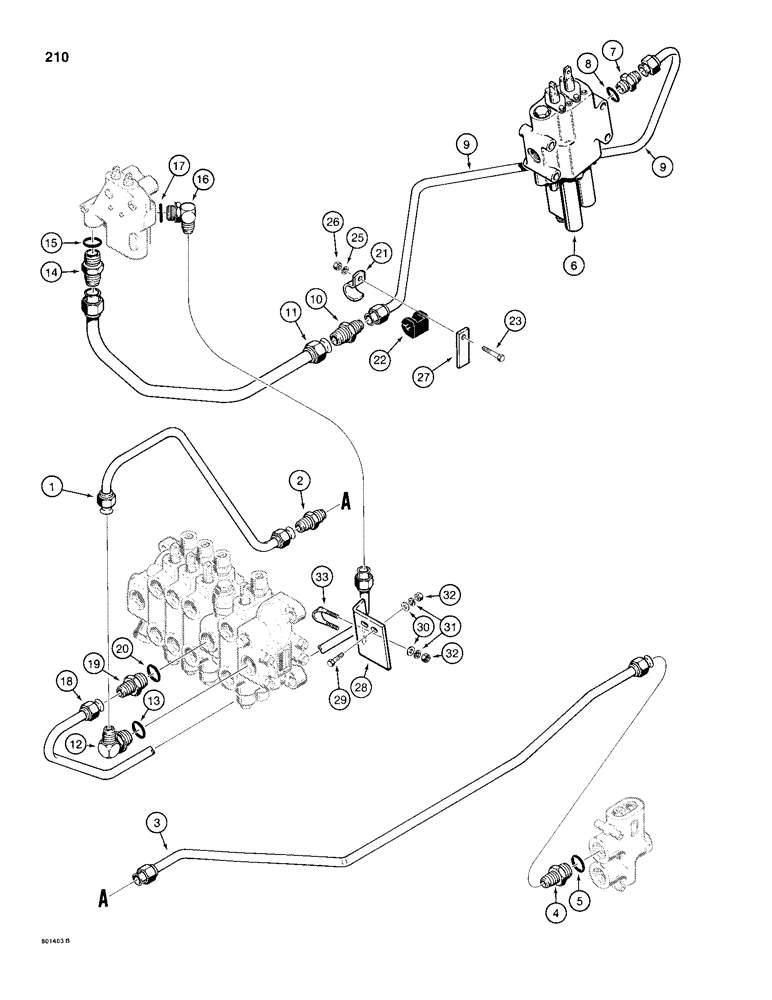

Запчасти Case 680H (210) - EQUIPMENT HYDRAULIC CIRCUIT, LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (08) - HYDRAULICS

1

L103006

TUBE,0.75" OD

- backhoe control valve inlet to flow control valve

1шт.

2

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - tube to tube

1шт.

3

L102910

TUBE,0.75" OD

- flow control valve to backhoe control valve inlet

1шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

6

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figures 236-246

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

9

L102965

TUBE,0.75" OD

- loader control valve to stabilizer control valve

1шт.

10

218-745

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - 1-5/16" x 1-1/16", tube to tube

1шт.

11

L70096

TUBE

- stabilizer control valve to loader control valve

1шт.

12

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, special, Includes: Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

14

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., tube, straight, Incl. Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

16

L114091

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

18

L103008

TUBE,0.75" OD

- stabilizer control valve to center inlet

1шт.

L103008 stabilizer control valve tube -Refer to CE Service Bulletin 10-82 for installation of support bracket L108952.

1шт.

19

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 20

1шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

21

D74192

CLAMP

- tube

1шт.

22

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

24

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

27

L43575

PLATE ASSY.

PLATE - clamp spacer

1шт.

28

L108952

BRACKET

- clamp

1шт.

29

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

2шт.

30

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

31

92-5

LOCK WASHER,5/16"

4шт.

32

9635082

NUT,5/16" - 18, Gr 5

- hex head, 5/16" - 18 NC

4шт.

33

L78948

U-BOLT

- bracket clamp

1шт.
