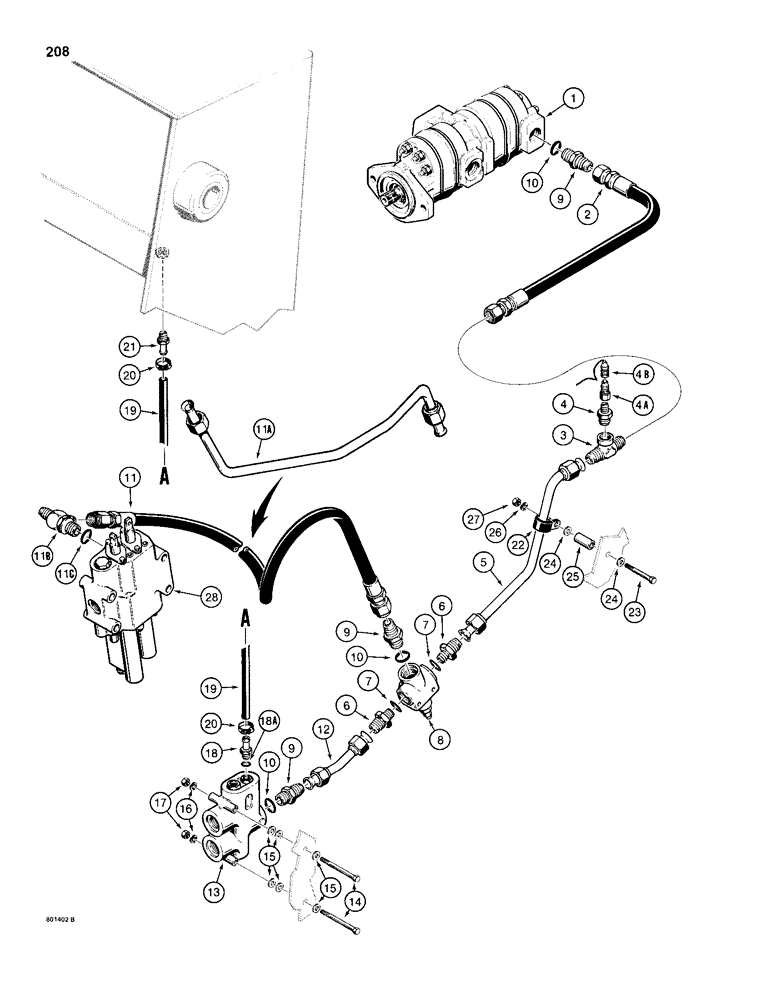

Запчасти Case 680H (208) - EQUIPMENT HYDRAULIC CIRCUIT PUMP TO BACKHOE, RELIEF VALVE, FLOW CONTROL VALVE & LOADER CONTROL VALVE (08) - HYDRAULICS

1

D127913

PUMP

HYDRAULIC PUMP - equipment, parts list Figure 270

1шт.

2

L78021

HOSE

- hydraulic pump to backhoe relief valve, 26-1/2" (673 mm) long

1шт.

3

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- pressure check

1шт.

4

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

ADAPTER - pressure check, 3/4" NPT

1шт.

4a

S206607

DISC

COUPLING - pressure check

1шт.

4b

S206608

CAP

- dust

1шт.

5

L105220

TUBE,0.75" OD

- to backhoe relief valve

1шт.

6

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - straight, male, Includes: Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

8

L106548

VALVE

RELIEF VALVE - backhoe, parts list Figure 268

1шт.

9

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 10

3шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

11

L107842

HOSE ASSY.

HOSE - relief valve return, no longer available, order D127016 tube for service

1шт.

11a

D127016

TUBE ASSY.

TUBE - relief valve return

1шт.

11b

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

- relief valve return, Includes: Ref. 11C

1шт.

11c

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- tee

1шт.

12

L103028

TUBE - relief valve to flow control valve 0.75" OD x 6.6, 1.28" L

1шт.

13

L102602

LOCK VALVE

FLOW CONTROL VALVE - hydraulic, parts list Figure 266

1шт.

14

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- hex head, 5/16" - 18 NC x 3-3/4"

2шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

6шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

18

217-193

FITTING,1/4" Hose Barb x 7/16" - 20 Male ORB

ADAPTER - hose, Includes: Ref. 18A

1шт.

18a

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk, adapter

1шт.

19

L102879

HOSE ASSY.

HOSE - flow control, 31" (787 mm) long

1шт.

20

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

2шт.

21

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

- hose, at hydraulic reservoir

1шт.

22

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube, backhoe relief

1шт.

23

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4"

1шт.

24

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

25

D34632

BUSHING

SPACER -, Serial Range: clamp-chassis

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

28

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figures 236-246

1шт.
