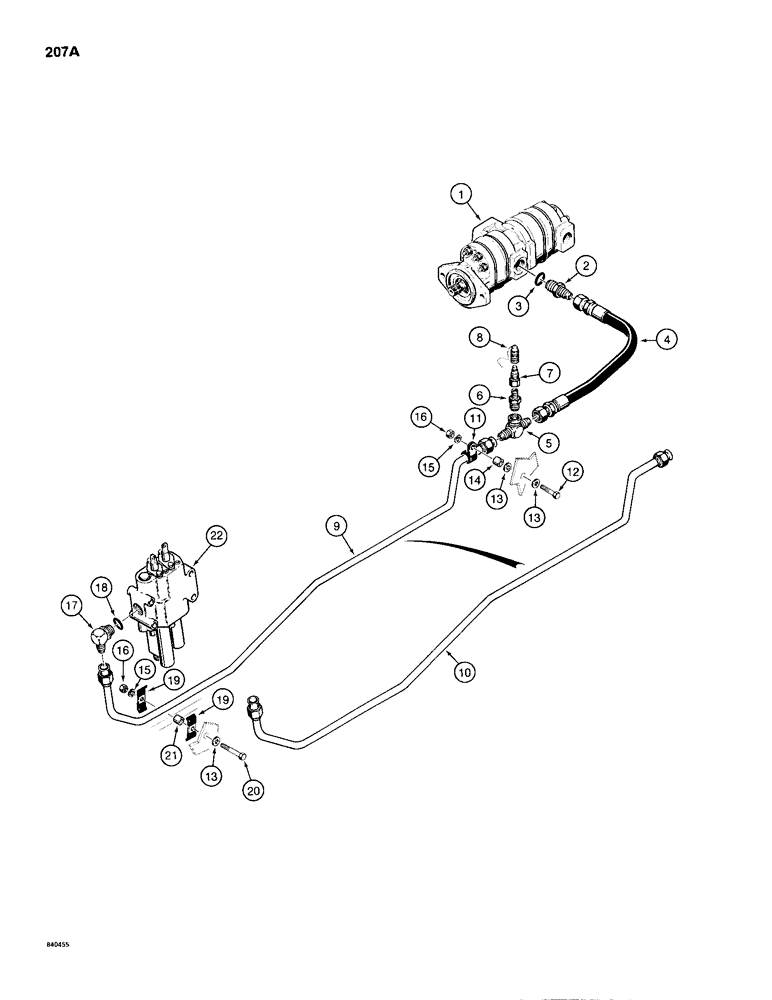

Запчасти Case 680H (207A) - EQUIPMENT HYDRAULIC CIRCUIT, HYDRAULIC PUMP TO LOADER CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

HYDRAULIC PUMP - equipment, parts list Figure 270

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

L78021

HOSE

- hydraulic pump to loader valve, 26-1/2" (673 mm) long

1шт.

5

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- pressure check

1шт.

6

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

ADAPTER - pressure check, coupling

1шт.

7

S206607

DISC

COUPLING - pressure check

1шт.

8

S206608

CAP

- dust

1шт.

9

L105231

TUBE ASSY.,0.75" OD

TUBE - loader control valve supply, used with 2 spool valve

1шт.

10

L105222

TUBE ASSY.,0.75" OD

TUBE - loader control valve supply, used with 3 spool valve

1шт.

11

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube

1шт.

12

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

14

D55769

SPACER

-, Serial Range: clamp-chassis

1шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

L114091

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

19

D41160

CLAMP

- tube

2шт.

20

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

1шт.

21

D36040

BUSHING

SPACER - tube

1шт.

22

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figures 236-246

1шт.
