(205A) - L114122 HYDRAULIC OIL FILTER

Запчасти Case 680H (205A) - L114122 HYDRAULIC OIL FILTER (08) - HYDRAULICS

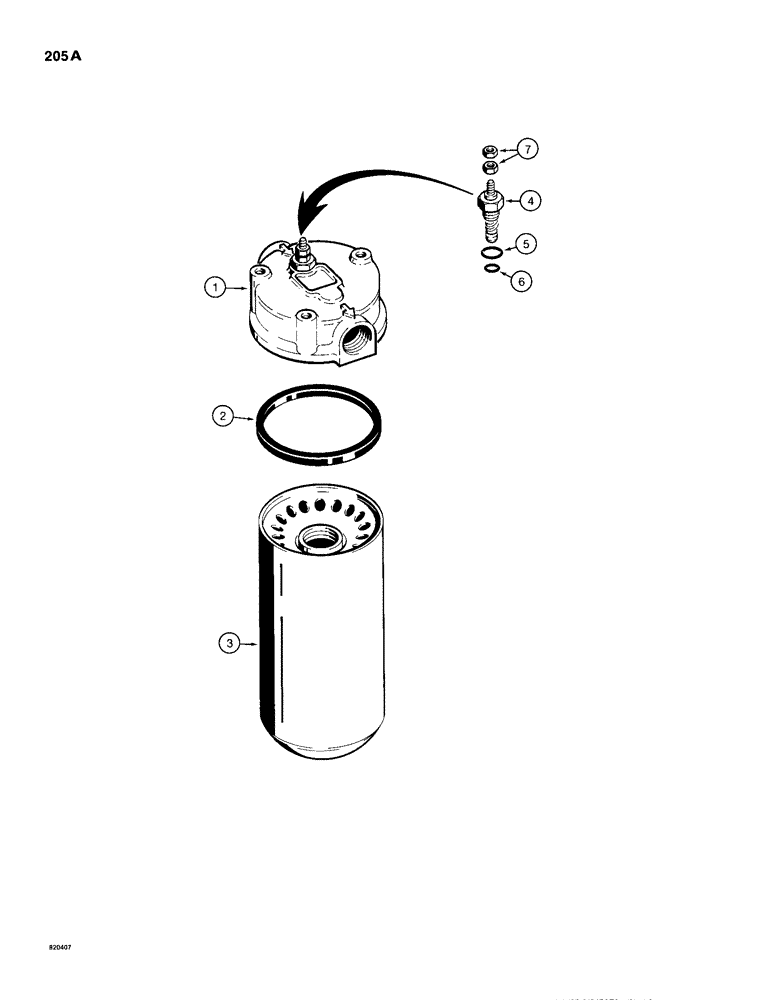

Схема запчастей Case 680H - (205A) - L114122 HYDRAULIC OIL FILTER (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L114122

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - filter

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

N7782

TRANSMITTER

SENDER - filter restriction, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH - sender

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Sender

1шт.

6

A29297

SCREW

O-RING - seal, piston

1шт.

7

129-17

NUT,Hex, #10 - 24

2шт.

A45625

HYDRAULIC OIL FILTER

KIT, includes (2) A139281 gaskets and (2) A143328 elements

1шт.

Bulletin 100-84 (cannister must be tightened one full turn after contact with gasket A139281).

1шт.

Ref. A45625 filter kit - Refer to CE Service

1шт.
