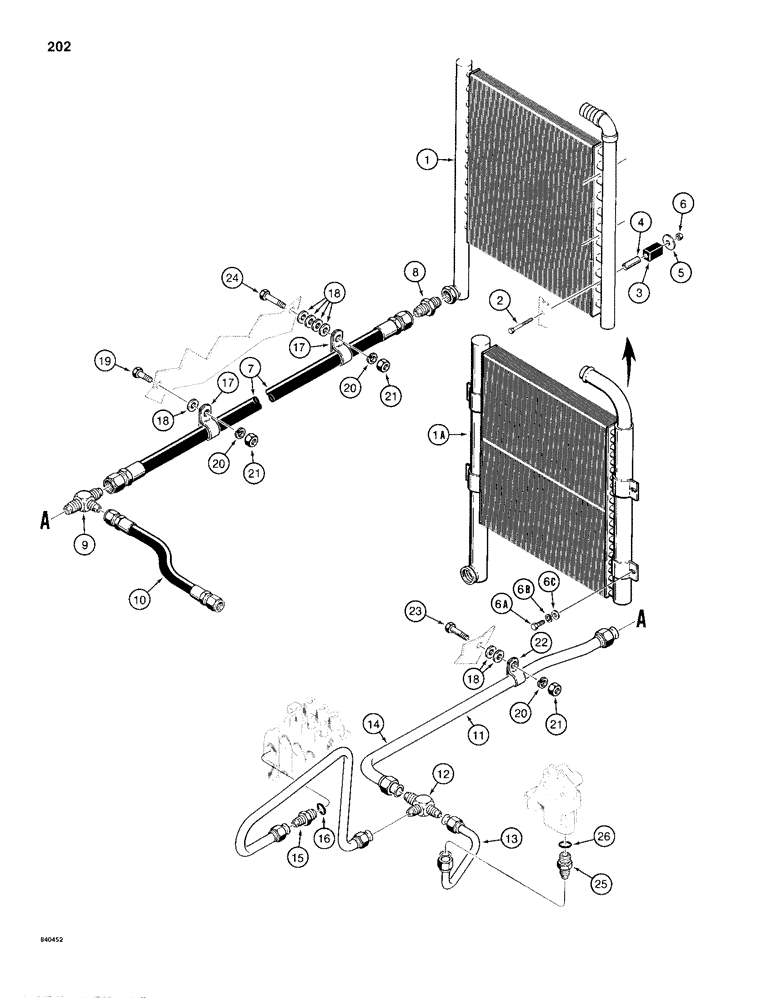

Запчасти Case 680H (202) - EQUIPMENT HYDRAULIC CIRCUIT, OIL COOLER RETURN LINES (08) - HYDRAULICS

1

L108816

COOLER, OIL

OIL COOLER - hydraulic system, used before tractor SN 9145602, except not used on tractor SN 9145600

1шт.

L108816 oil cooler - This is a copper oil cooler.

1шт.

1a

L106968

COOLER, OIL

OIL COOLER - hydraulic system, used on tractor SN 9145600, 9145602, and after

1шт.

L106968 oil cooler - This is a steel oil cooler.

1шт.

2

13-444

CAPSCREW,Hex, 1/4" - 20 x 2 3/4", Gr 5

BOLT - hex head, 1/4" - 20 NC x 2-3/4", used with L108816 oil cooler

6шт.

3

A160869

GUIDE

SPACER - oil cooler bolt, used with L108816 oil cooler

6шт.

4

L105712

BLOCK

- oil cooler mounting, used with L108816 oil cooler

6шт.

5

A26383

WASHER

- special, used with L108816 oil cooler

12шт.

6

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, used with L108816 oil cooler

6шт.

6a

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used with L106968 oil cooler Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6b

92-5

LOCK WASHER,5/16"

used with L106968 oil cooler 5/16"

4шт.

6c

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", used with L106968 oil cooler

4шт.

7

L105149

HOSE

- backhoe return to oil cooler, 71" (1803 mm) long

1шт.

8

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

CONNECTOR - hose to cooler

1шт.

9

218-1577

TEE,37 Degree, 1 5/8"-12 x 1 1/16"-12, Br

- male

1шт.

10

L77087

HOSE

- crossover, to loader control valve, 20" (508 mm) long

1шт.

11

L77082

TUBE,1.25" OD x 35.97, 6.14" L

- backhoe return, 1-1/4" OD

1шт.

12

218-1576

TEE,37 Degree, 1 5/8"-12 x 1 1/16"-12, Run

- male

1шт.

13

L77532

TUBE,0.75" OD

- stabilizer return

1шт.

14

L102877

TUBE,1" OD

- backhoe return, 1" OD

1шт.

L102877 backhoe return tube - Illustration shows arrow pointing toward wrong tube (points toward Ref. 11 instead of toward tube w/ Ref. 15 fitting and 16 O-ring)

1шт.

15

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

17

S98801

CLAMP

- return, Serial Range: hose-chassis

2шт.

18

95-8

WASHER,1/2"

flat 1/2"

7шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

20

92-8

LOCK WASHER,1/2"

3шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

22

D43364

CLAMP

- return, Serial Range: tube-chassis

1шт.

23

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

1шт.

24

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

1шт.

25

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - straight, male, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.
