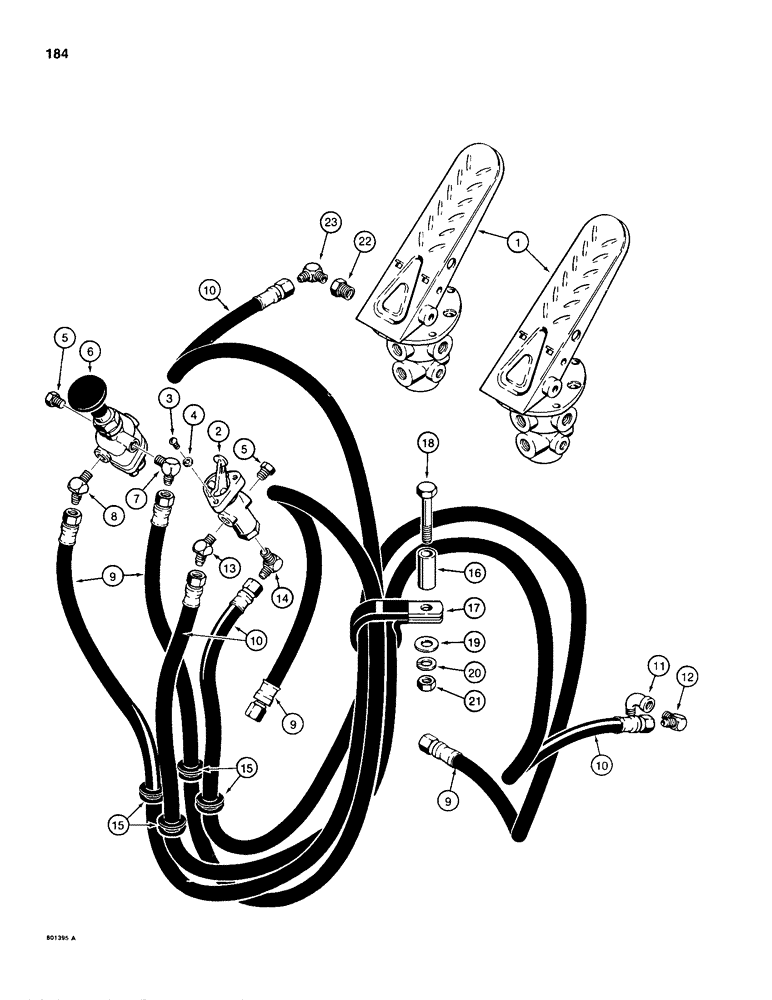

Запчасти Case 680H (184) - BRAKE SYSTEM, TREADLE TO CLUTCH CUTOUT AND PARKING BRAKE VALVE (07) - BRAKES

1

REF

INSTRUCTION

TREADLE - brake valve, parts list Figure 194

2шт.

2

REF

INSTRUCTION

VALVE - clutch cutout, manual, parts list Figure 196

1шт.

3

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, round head, No. 10 - 24 NC x 1/2"

2шт.

4

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

221-1849

PLUG

- 1/8" NPT, hex, socket head

2шт.

6

REF

INSTRUCTION

CONTROL VALVE - parking brake, parts list Figure 186

1шт.

7

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

8

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree

1шт.

9

L103356

HOSE,6.35 mm ID x 1016.00, SAE J1402

Air System 6.35 mm ID x 1016.00, SAE J1402

2шт.

10

L103355

HOSE,0.25" ID x 50.00", SAE J1402C Type A

Clutch Cutout 0.25" ID x 50.00", SAE J1402C Type A

2шт.

11

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- 90 degree

1шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

13

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree

1шт.

14

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

15

L103297

GROMMET,5/8" ID x 7/8" Groove Dia, Str Cut

- hose

4шт.

16

L10264

BUSHING

SPACER - hose support

1шт.

17

49773

CLAMP

- hose

1шт.

18

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

22

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

CONNECTOR - 1/2" NPT x 1/4" NPT

1шт.

23

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

1шт.
