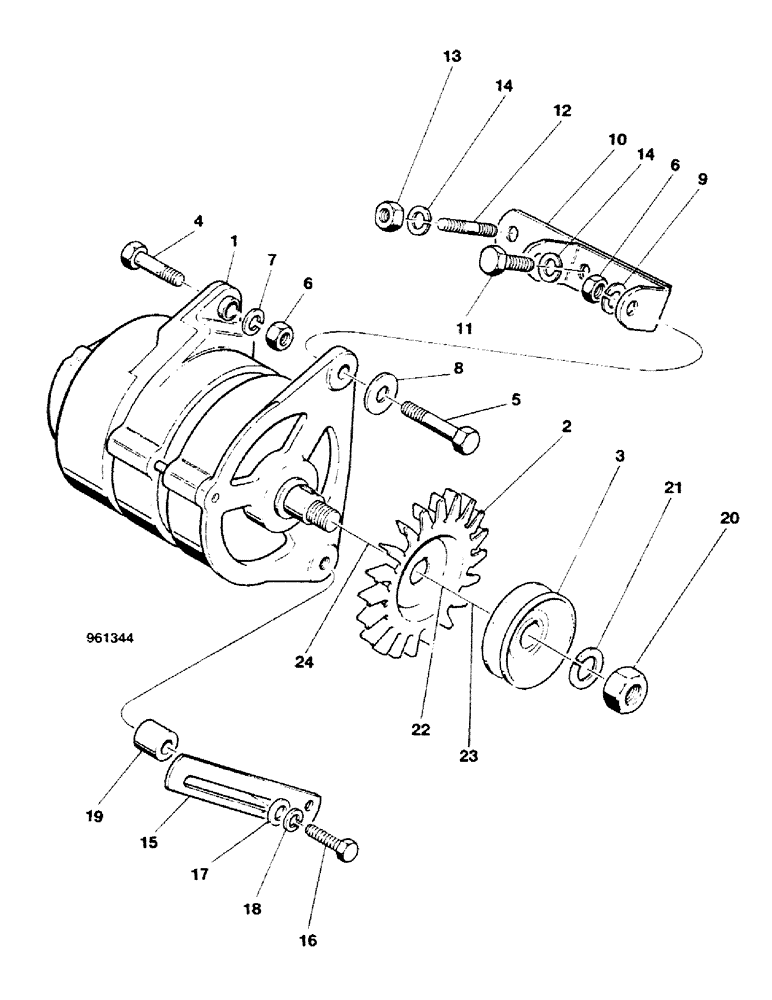

Запчасти Case 580G (36) - ALTERNATOR AND MOUNTING PARTS (10) - ENGINE

1

K311696

ALTERNATOR

(LUCAS), Ref. A127-45

1шт.

Ref. A 127-45

1шт.

2

K311704

FAN

1шт.

3

K311701

PULLEY

1шт.

4

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

5

K814-8040

BOLT

1шт.

6

825-1108

NUT,Hex, M8, Cl 8

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

8

K626916

WASHER

special

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

10

K947375

SUPPORT

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

K608236

STUD

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

14

192-21

LOCK WASHER,3/8"

2шт.

15

K950495

ADJUSTER

1шт.

16

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

17

K626916

WASHER

special

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

19

K627028

BUSHING

1шт.

20

K311699

NUT

1шт.

21

K311700

SPRING WASHER

lock

1шт.

22

K311702

SPACER

SPARE PART

1шт.

Not Illustrated

1шт.

23

K311703

WASHER

special

1шт.

Not Illustrated

1шт.

24

K311705

SPACER

1шт.

Not Illustrated

1шт.
