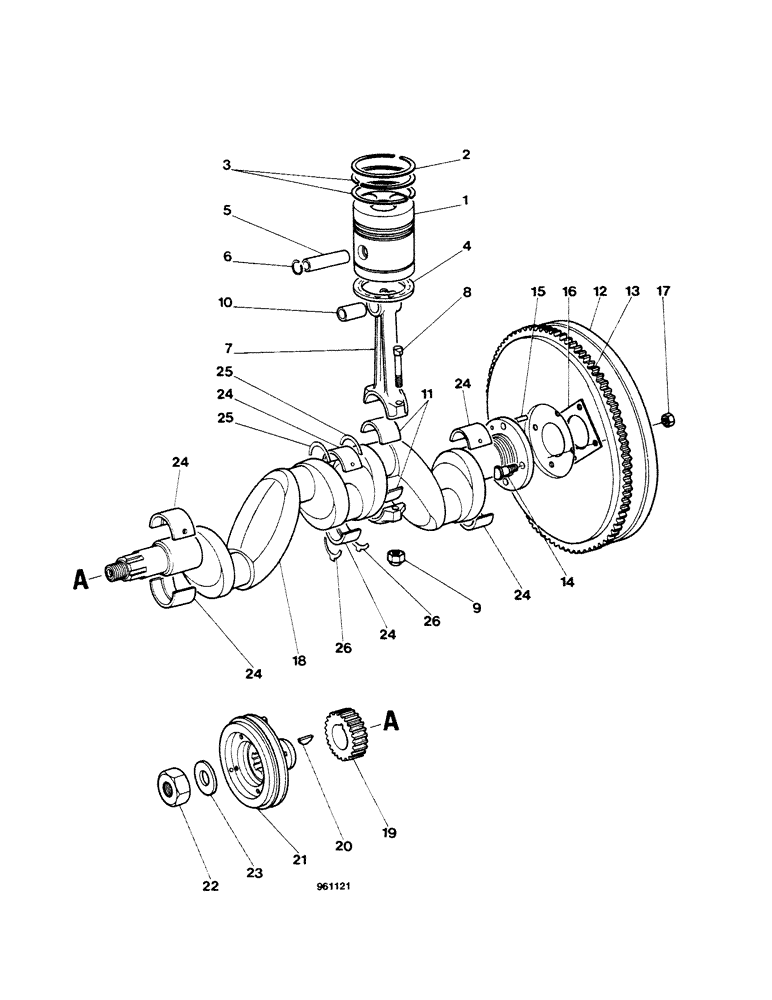

Запчасти Case 580G (26) - ENGINE - PISTONS, CRANKSHAFT, AND FLYWHEEL (10) - ENGINE

K944573

PISTON & RINGS KIT

assembly

4шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

K943881

RING, PISTON

No. 1

1шт.

3

K943882

RING, PISTON

No. 2 and 3

2шт.

4

K206956

RING, PISTON

rail - oil control

1шт.

5

K928547

PISTON PIN

piston

1шт.

6

K34501

RING, SNAP

RING SNAP

2шт.

K946354

PISTON

assembly (+0.020")

4шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

K943885

RING, PISTON

No. 1

1шт.

3

K943886

RING, PISTON

No. 2 and 3

2шт.

4

K206961

RING, PISTON

rail - oil control

1шт.

5

K928547

PISTON PIN

piston

1шт.

6

K34501

RING, SNAP

RING SNAP

2шт.

7

K80043

ROD, CONNECTING

assembly

4шт.

8

K207581

STEP BOLT

2шт.

9

K623151

LOCK NUT

2шт.

10

K31669

BEARING

1шт.

11

K207436

HALF-BEARING, CRANKS

8шт.

12

K948608

FLYWHEEL

1шт.

13

K946819

GEAR

ring

1шт.

14

K903431

STEP BOLT

4шт.

15

K10629

PIN

1шт.

16

K946238

WASHER

plate

1шт.

17

25-117

NUT,7/16"-20, G5

4шт.

18

K210100

CRANKSHAFT

1шт.

18

K210100R

REMAN-CRANKSHAFT

580G CASE CONSTRUCTION KING LOADER BACKHOE - TURBO SUPPLEMENT. Comes with main, thrust & connecting rod bearings

1шт.

18

K210100C

CORE-CRANKSHAFT

Return Number

1шт.

19

K945094

GEAR

34 teeth

1шт.

20

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

1шт.

21

K947778

PULLEY

1шт.

22

K623300

NUT

special

1шт.

23

K626403

WASHER

special

1шт.

24

K928541

HALF-BEARING, CRANKS

1шт.

25

K928542

SET

WASHER - thrust

2шт.

25

K928560

THRUST WASHER

WASHER - thrust (+ 0.005")

2шт.

25

K928562

WASHER, THRUST

(+ 0.020")

2шт.

26

K928543

SET

WASHER - thrust

2шт.

26

K928561

WASHER

thrust (+0.005")

2шт.

26

K928563

RING

WASHER - thrust (+ 0.020")

2шт.

K261794

BEARING SET

liner kit - Stdr

1шт.

K928541

HALF-BEARING, CRANKS

crankshaft

6шт.

K207436

HALF-BEARING, CRANKS

rod

8шт.

K928542

SET

WASHER - thrust

2шт.

K928543

SET

WASHER - thrust

2шт.

K261795

BEARING

liner - kit (-0.010")

1шт.

K928554

BEARING SET

crankshaft

6шт.

K207497

HALF-BEARING, CRANKS

rod

8шт.

K261796

BEARING

KIT - liner (-0.020")

1шт.

K928555

BEARING SET

crankshaft

6шт.

K207498

HALF-BEARING, CRANKS

rod

8шт.

K261069

SET OF RINGS

Stdr

4шт.

K943881

RING, PISTON

No. 1

1шт.

K943882

RING, PISTON

No. 2 and 3

2шт.

K206956

RING, PISTON

rail - oil control

1шт.

K261070

PISTON RING SET

(+0.020")

4шт.

K943885

RING, PISTON

No. 1

1шт.

K943886

RING, PISTON

No. 2 and 3

2шт.

K206961

RING, PISTON

rail - oil control

1шт.

K963484

ADHESIVE

Loctite

1шт.

K964584

OIL

Mobybdenum disulphide

1шт.

K964857

LINER, ENGINE CYLIND

4шт.

Used with standard pistons, not original equipment

1шт.
