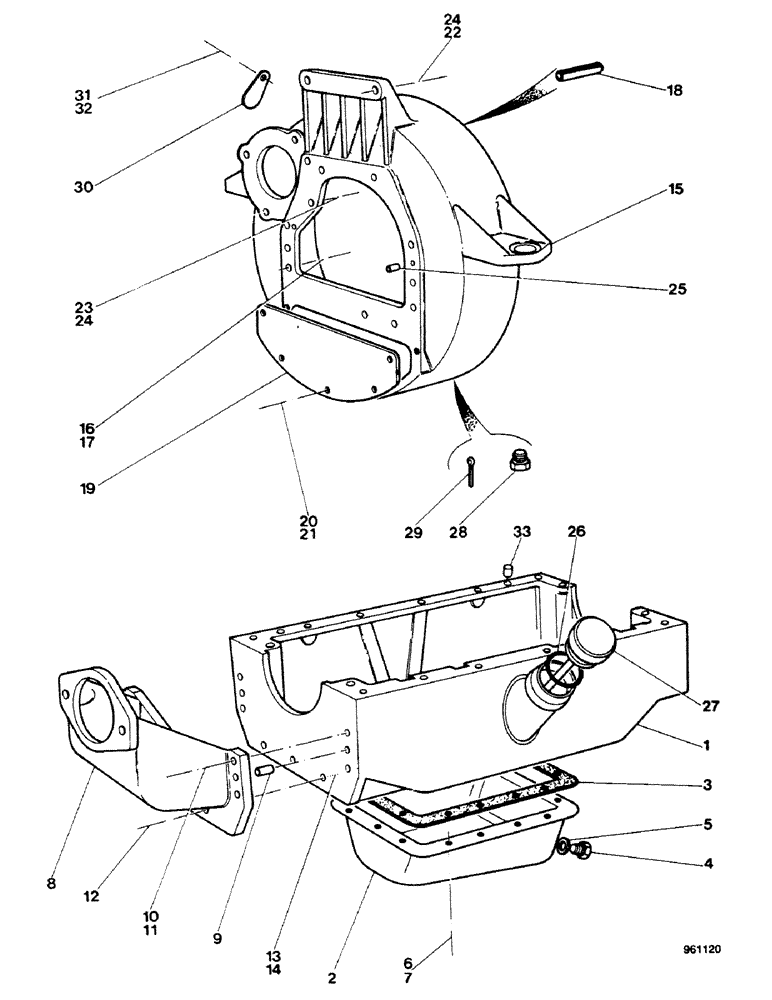

Запчасти Case 580G (24) - ENGINE - OIL PAN, SUMP FRAME, AND FLYWHEEL HOUSING (10) - ENGINE

1

K945957

MOTOR HOUSING

FRAME - sump

1шт.

2

K948959

SUMP

PAN - oil

1шт.

3

K952794

GASKET,1.68mm Thk

1шт.

4

K623849

PLUG

drain

1шт.

5

K15143

WASHER

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

7

92-5

LOCK WASHER,5/16"

14шт.

8

K202683

COVER

support

1шт.

8

E45812

SUPPORT

SPARE PART

1шт.

Used with auxiliary hydraulics

1шт.

9

K30134

PIN

2шт.

10

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

K600805

BOLT

3шт.

13

25-108

NUT,1/2"-13, G5

3шт.

14

K19474

HARDWARE

WASHER

3шт.

15

K952703

HOUSING

flywheel

1шт.

16

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

8шт.

17

192-21

LOCK WASHER,3/8"

8шт.

18

K690868

SPRING

PIN - roll

1шт.

19

K200506

COVER

SPARE PART

1шт.

20

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

5шт.

21

92-4

LOCK WASHER,1/4"

5шт.

22

K602908

SCREW

2шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

6шт.

24

192-21

LOCK WASHER,3/8"

8шт.

25

K657024

PIN - dowel .35" Dia.

2шт.

26

K15535

O-RING,1.484" ID x 1.762" OD x 0.139"

1шт.

27

K946050

DIPSTICK

1шт.

28

K623826

PLUG

1шт.

29

K19547

HARDWARE

PIN - cotter

1шт.

30

K953569

COVER

2шт.

31

K602702

SCREW

2шт.

32

92-4

LOCK WASHER,1/4"

2шт.

33

K622911

PIN

SPARE PART

2шт.
